Power Steering Fluid Cooler: Service and Repair

Power Steering Fluid Cooler

Removal and Installation

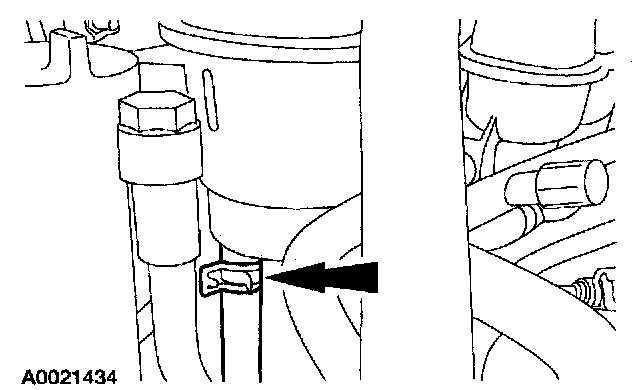

1. Disconnect the hose from the power steering fluid reservoir.

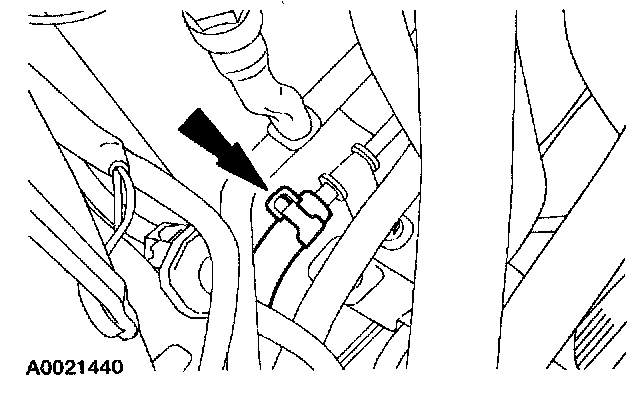

2. Disconnect the power steering cooler hose.
3. Remove the front bumper cover.

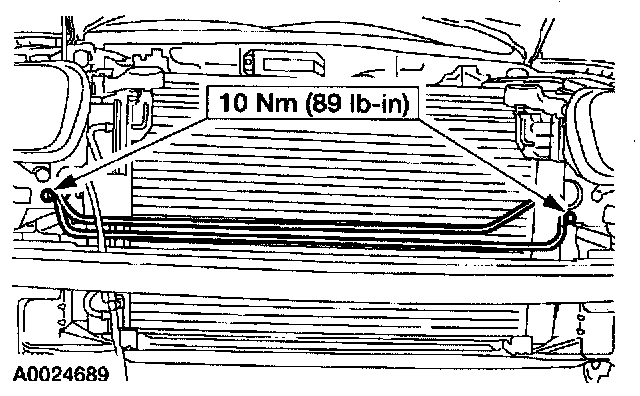

4. Remove the nuts and the power steering fluid cooler.
5. To install, reverse the removal procedure.
Fill, bleed and leak check the power steering system.
