Test A: Engine Does Not Crank Or The Relay Clicks

PINPOINT TEST A: THE ENGINE DOES NOT CRANK OR THE RELAY CLICKS

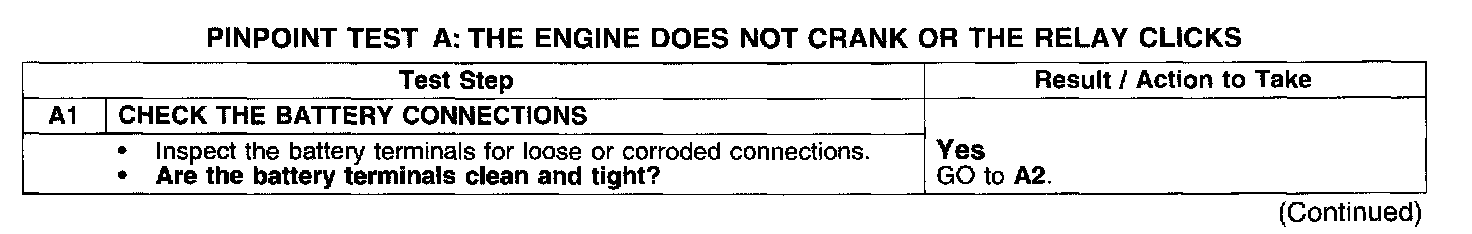

Test A1:

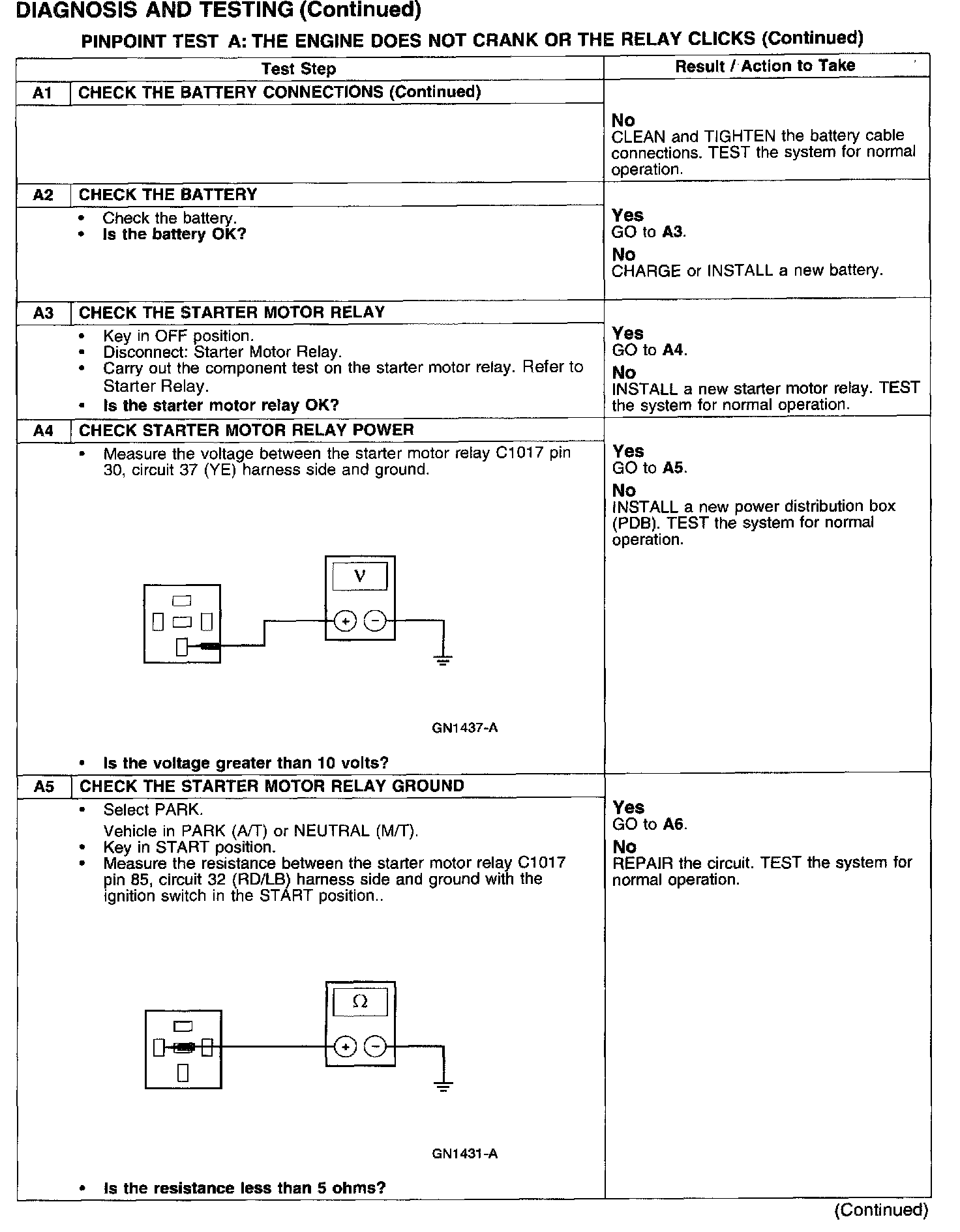

Test A1-A5:

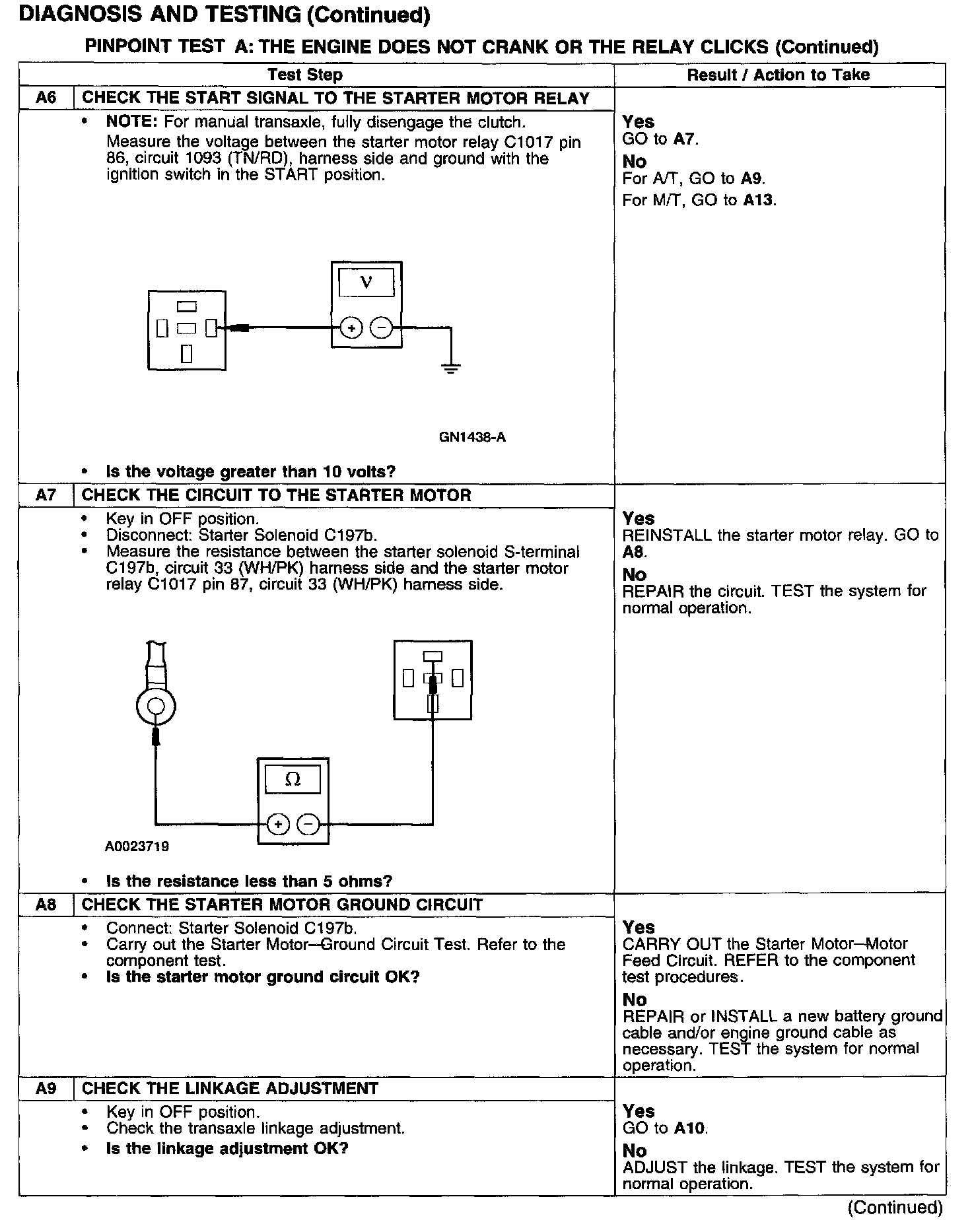

Test A6-A9:

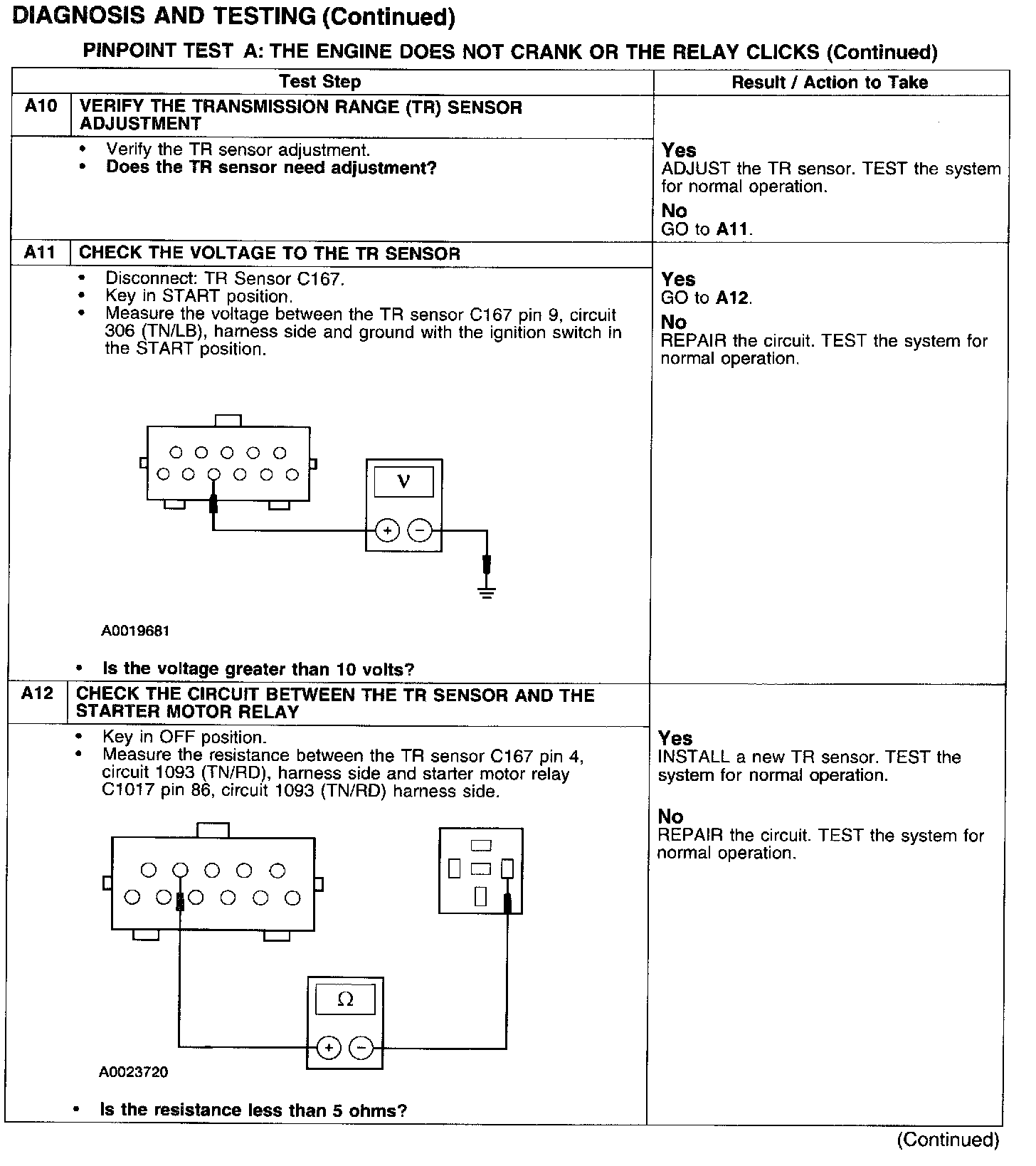

Test A10-A12:






Test A13-A14:
