Test L: Generator Is Noisy
Test L: Generator Is Noisy

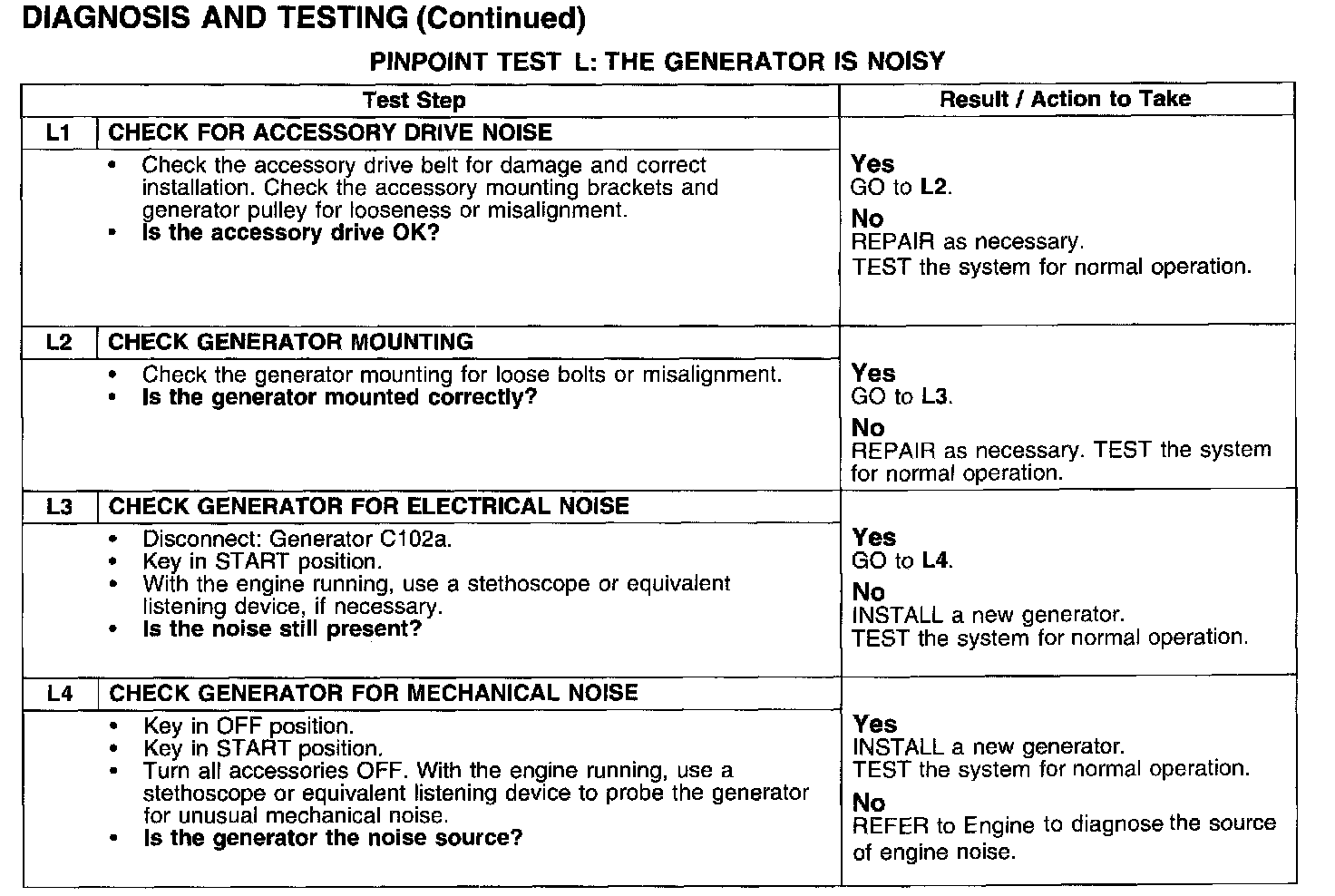

PINPOINT TEST L: THE GENERATOR IS NOISY
Test L1-L4:
