Test B: Charging System Warning Indicator Stays On

PINPOINT TEST B: THE CHARGING SYSTEM WARNING INDICATOR IS ON WITH THE ENGINE RUNNING (THE SYSTEM VOLTAGE DOES NOT INCREASE)

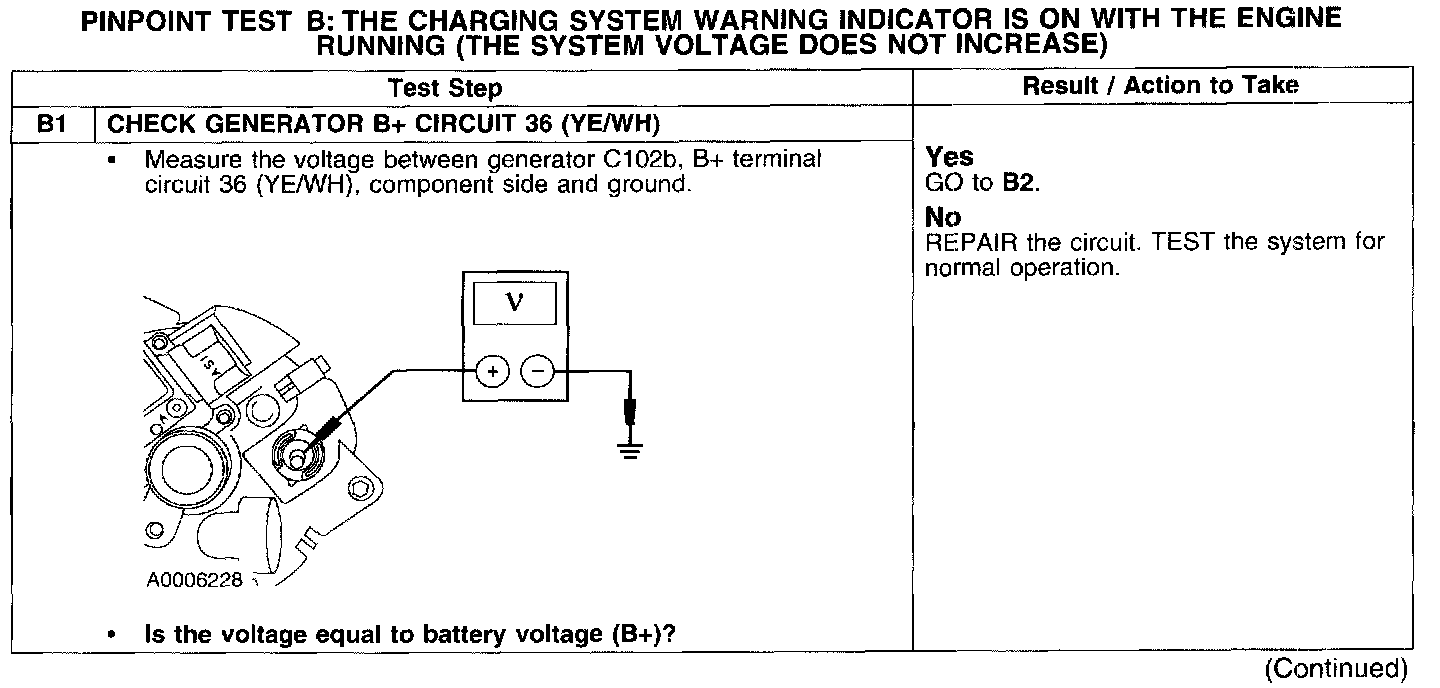

Test B1:

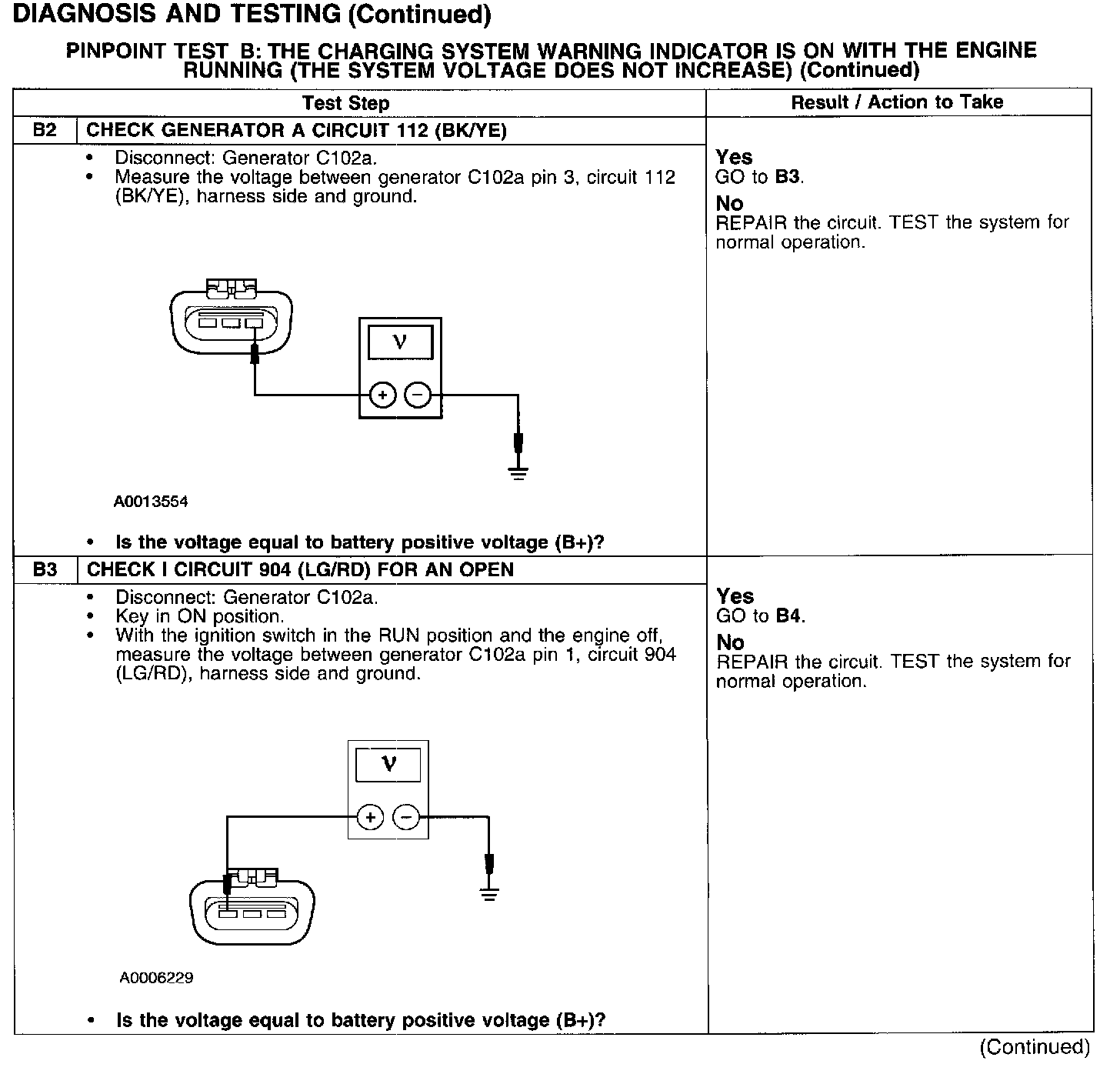

Test B2-B3:

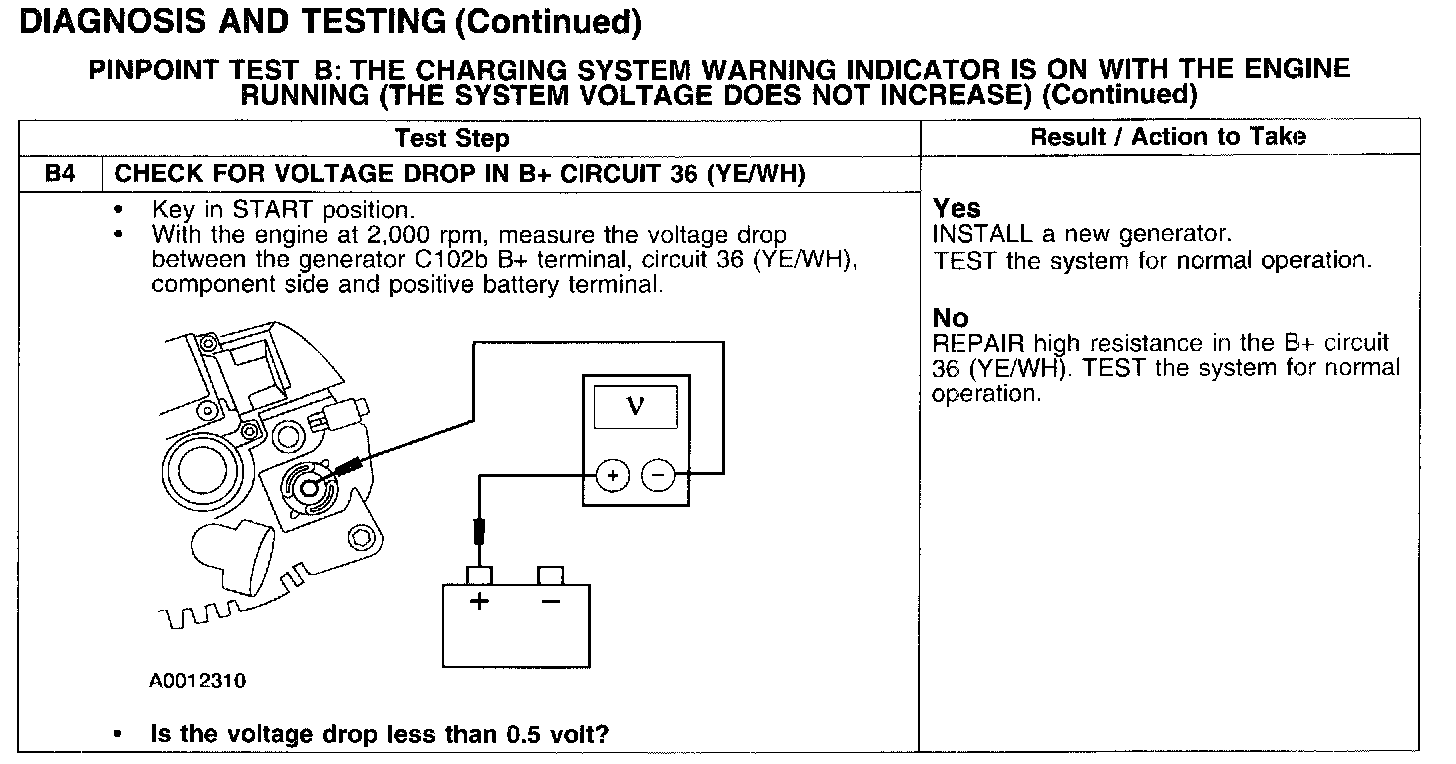

Test B4:
