Battery

REMOVAL
1. Disconnect the battery cables.







2. Remove the battery.

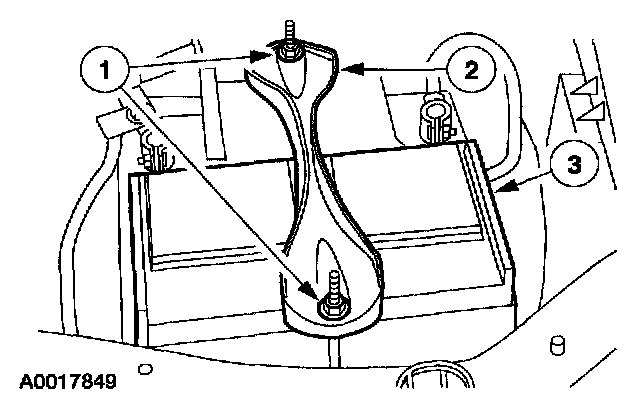

1 Remove the nuts.
2 Remove the hold-down.
3 Remove the battery.

INSTALLATION
1. To install, reverse the removal procedure.
