System Specifications

Timing chain and guide bolts 25 Nm (18 ft. lbs.)
Timing Chain Tensioner and Arm 25 Nm (18 ft. lbs.)

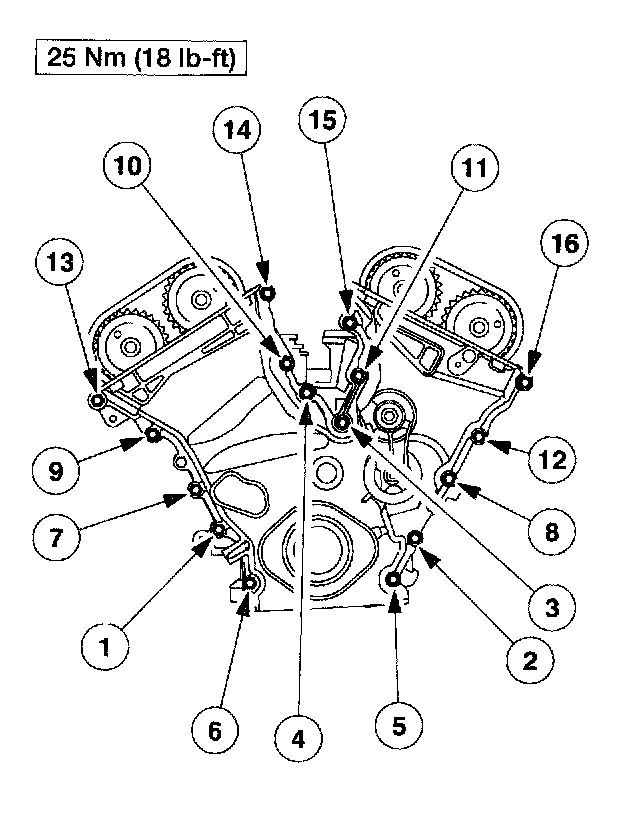

NOTE: Fasteners 1, 3, 4, 8, 10, 11, 14, 15 and 16 are studs.

Engine Front Cover Fasteners
