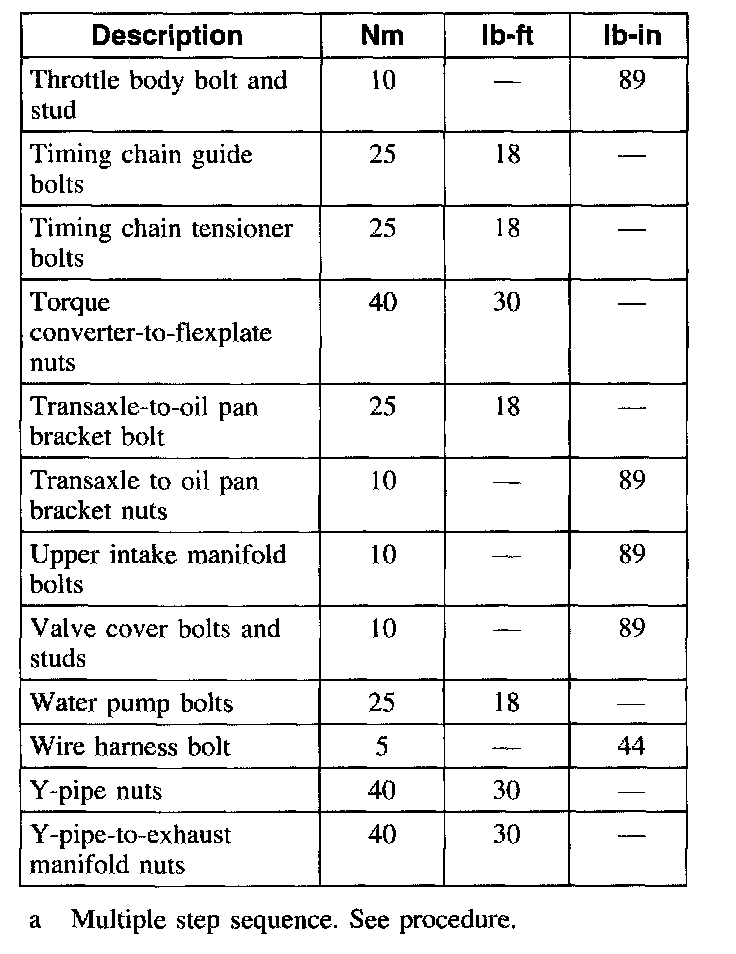

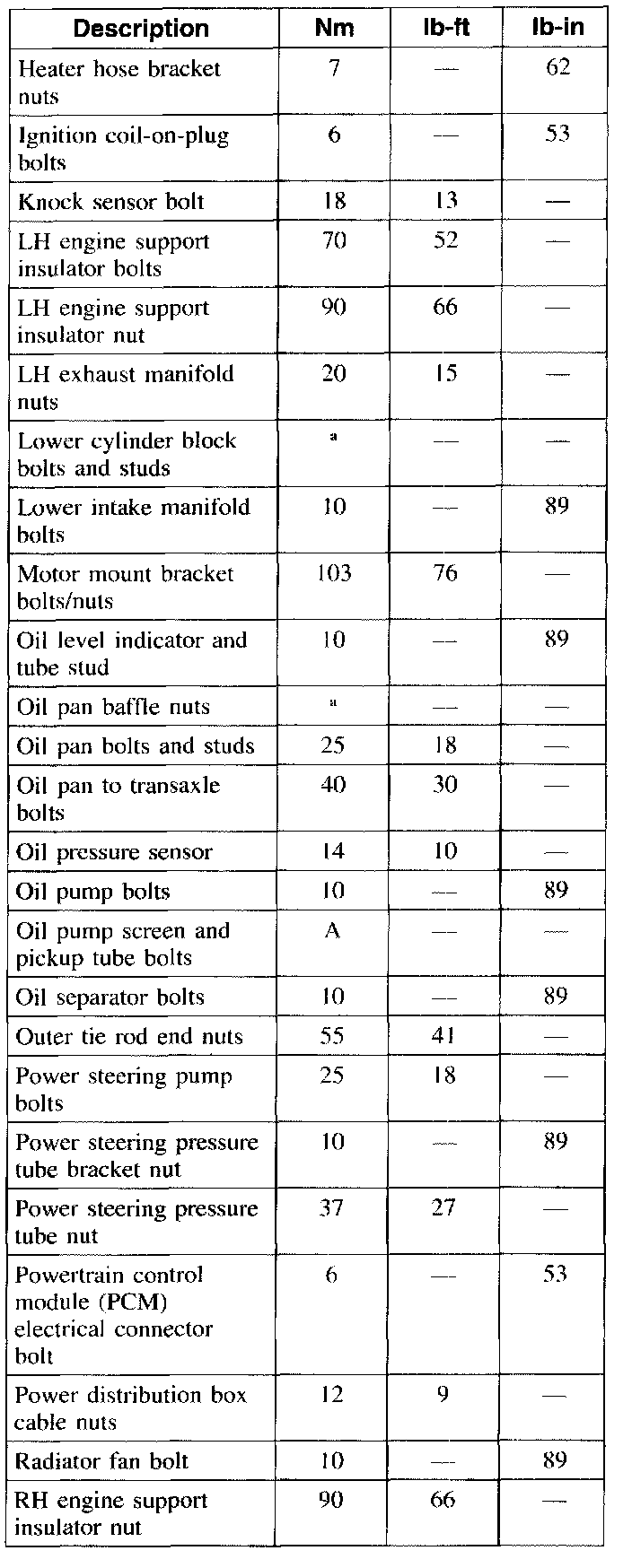

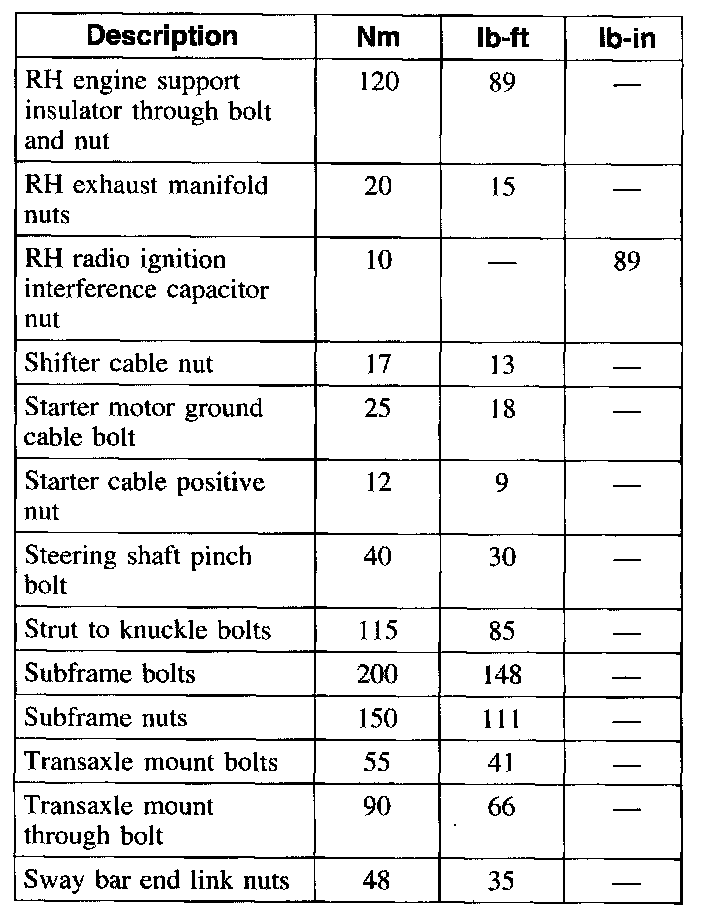

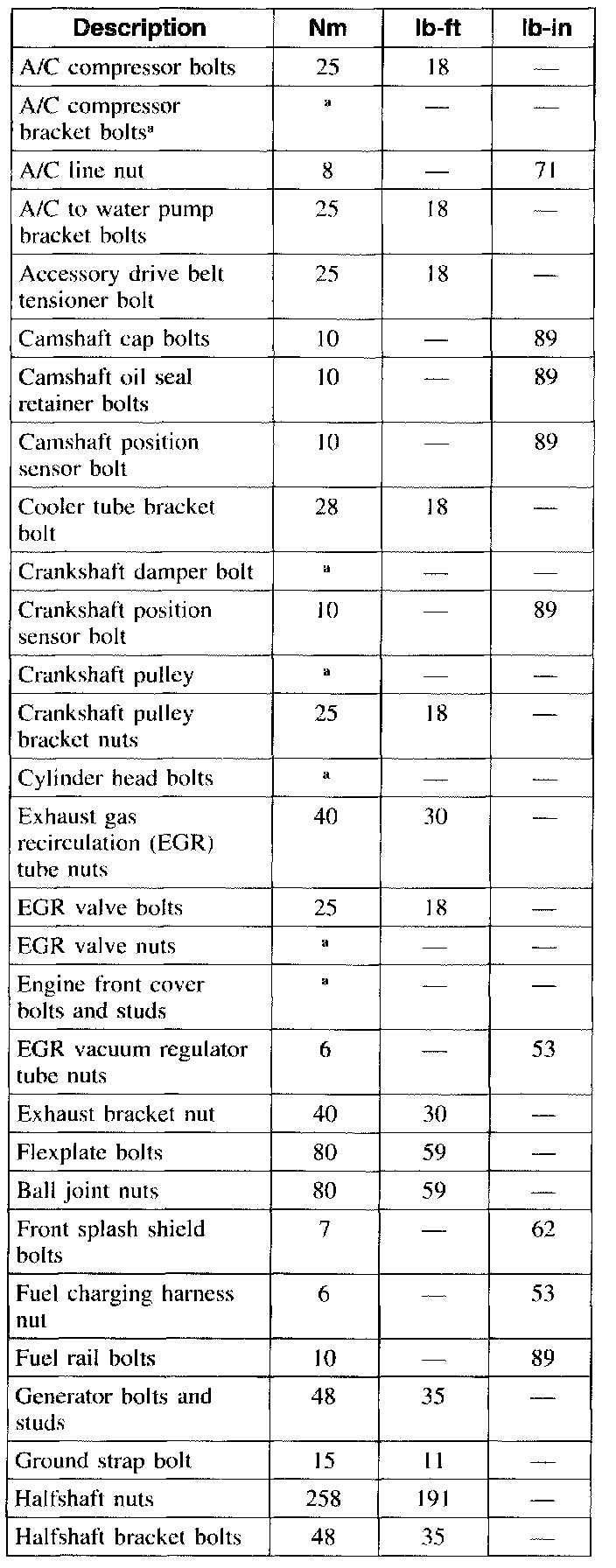

Torque Specifications

Torque Specifications

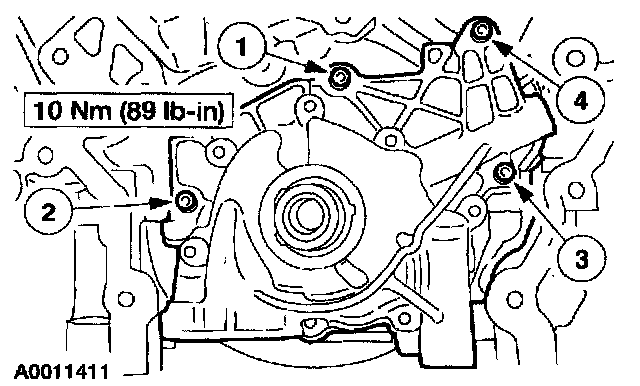

Oil pump bolts 10 Nm (89 in. lbs.)

Water pump bolts 10 Nm (89 in. lbs.)

Crankshaft pulley bolt
Stage 1 120 Nm (89 ft. lbs.)
Stage 2 Loosen 360 degrees
Stage 3 50 Nm (37 ft. lbs.)
Stage 4 90 Nm (66 ft. lbs.)

LH:

RH:

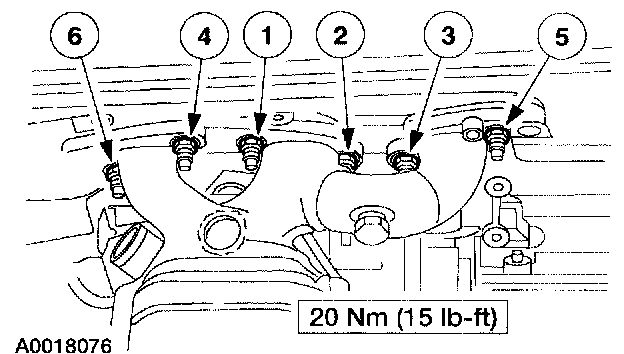

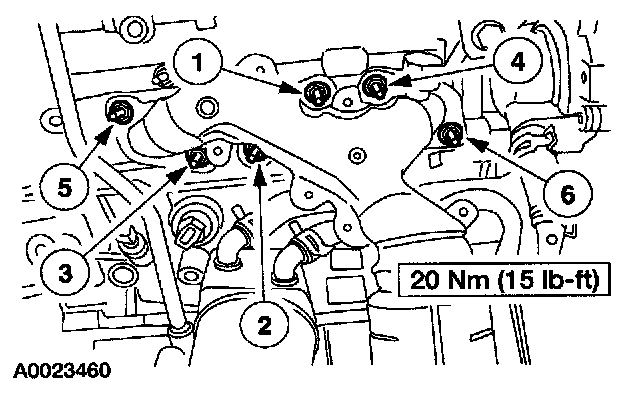

Exhaust Manifold nuts

Flexplate bolts 80 Nm (59 ft. lbs.)





Upper intake manifold bolts





Lower intake manifold bolts

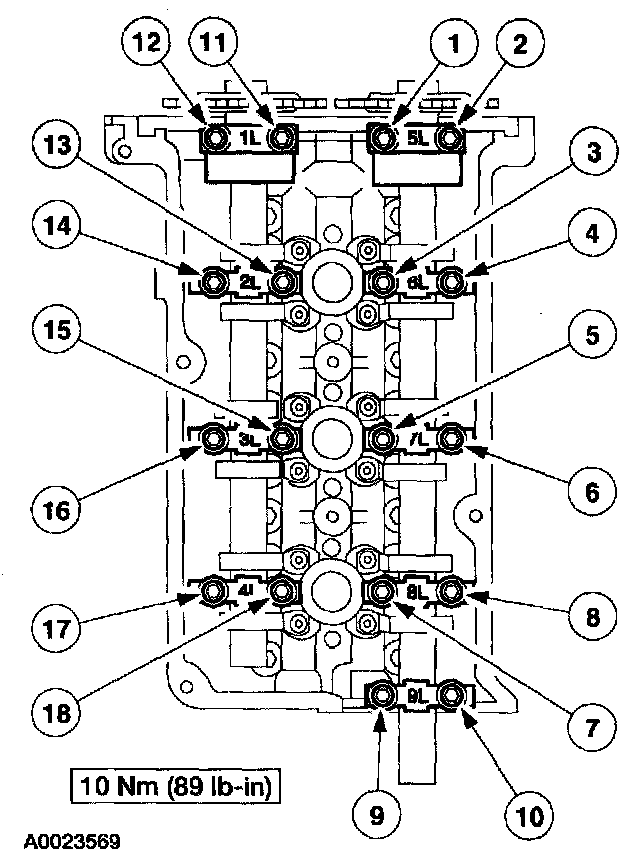

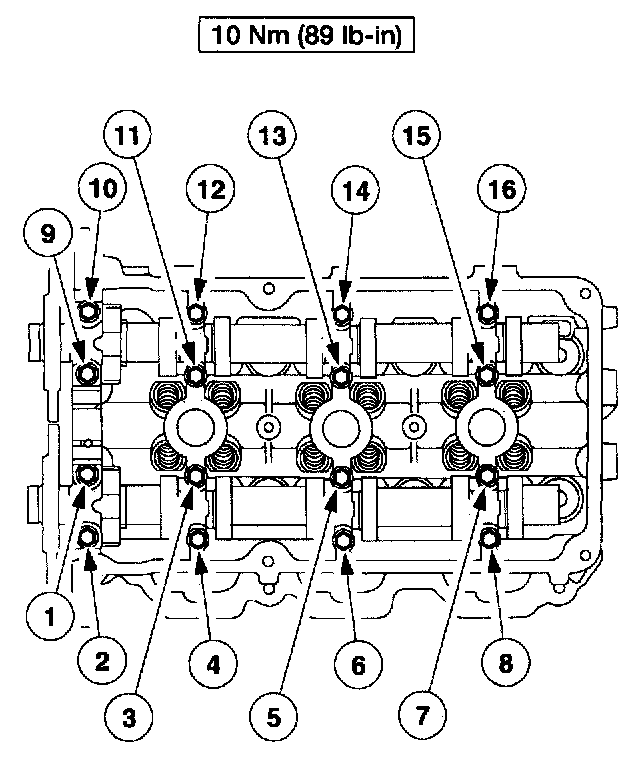

Camshaft bearing cap bolts

Connecting rod caps bolts
Stage 1 23 Nm (17 ft. lbs.)
Stage 2 43 Nm (32 ft. lbs.)
