Harmonic Balancer - Crankshaft Pulley

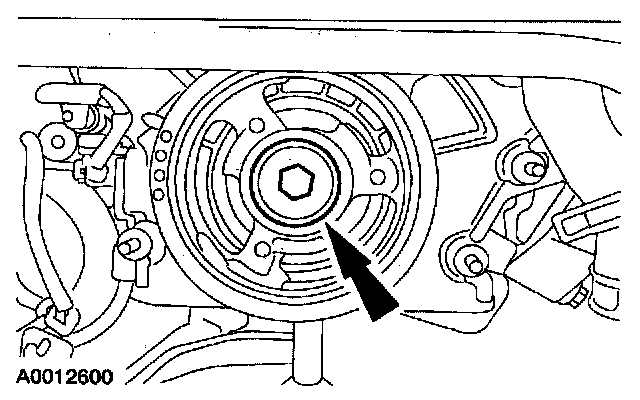

Crankshaft pulley bolt
Stage 1
120 Nm (89 ft. lbs.)
Stage 2
Loosen 360 degrees
Stage 3
50 Nm (37 ft. lbs.)
Stage 4
90 Nm (66 lb.ft)
