Pressure Plate
Pressure plate side 3.5 mm (0.138 inch)

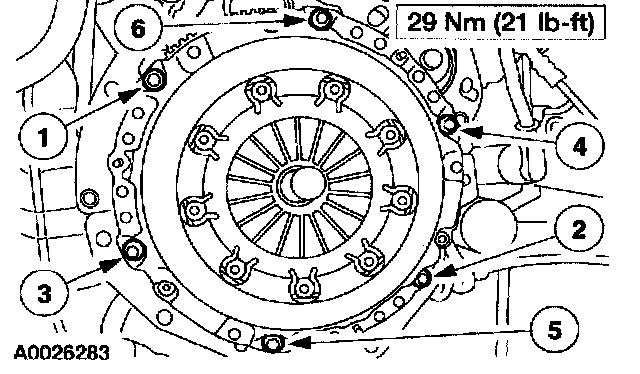

Clutch pressure plate bolts 29 Nm (21 ft. lbs.)
Pressure plate diaphragm spring fingers
Maximum depth 0.5 mm (0.020 inch)
Maximum clearance 0.5 mm (0.020 inch)
Clutch pressure plate bolts 29 Nm (21 ft. lbs.)
Pressure plate diaphragm spring fingers
Maximum depth 0.5 mm (0.020 inch)
Maximum clearance 0.5 mm (0.020 inch)
