Windshield Washer Switch: Service and Repair

WINDSHIELD WIPER/WASHER SWITCH

REMOVAL AND INSTALLATION

1. NOTE: The windshield wiper/washer switch is part of the multifunction switch assembly.

Remove the steering column shroud.

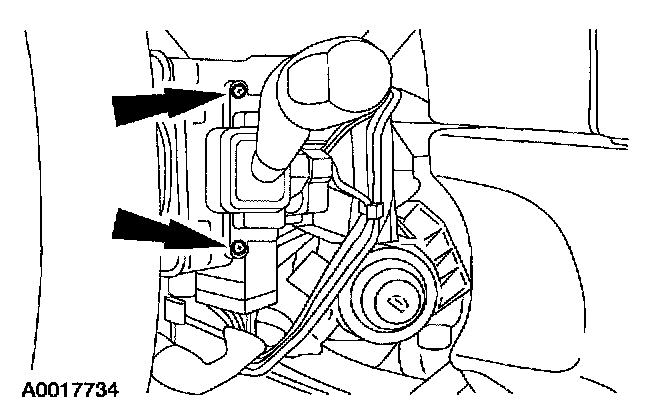

2. Remove the screws.







3. Remove the windshield wiper/washer switch.

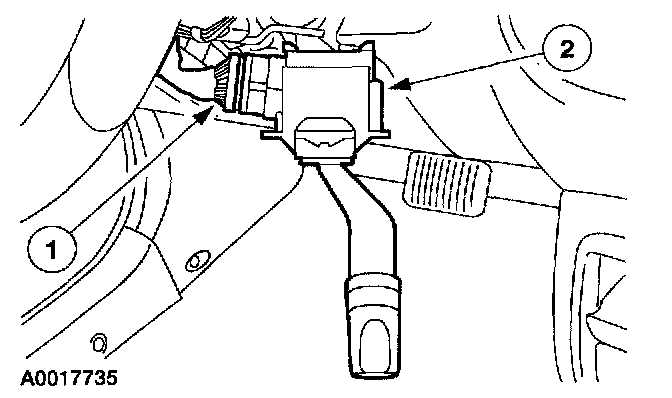

1 Disconnect the electrical connector.
2 Remove the windshield wiper/washer switch.
