Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Testing and Inspection >> Master Window Control Switch

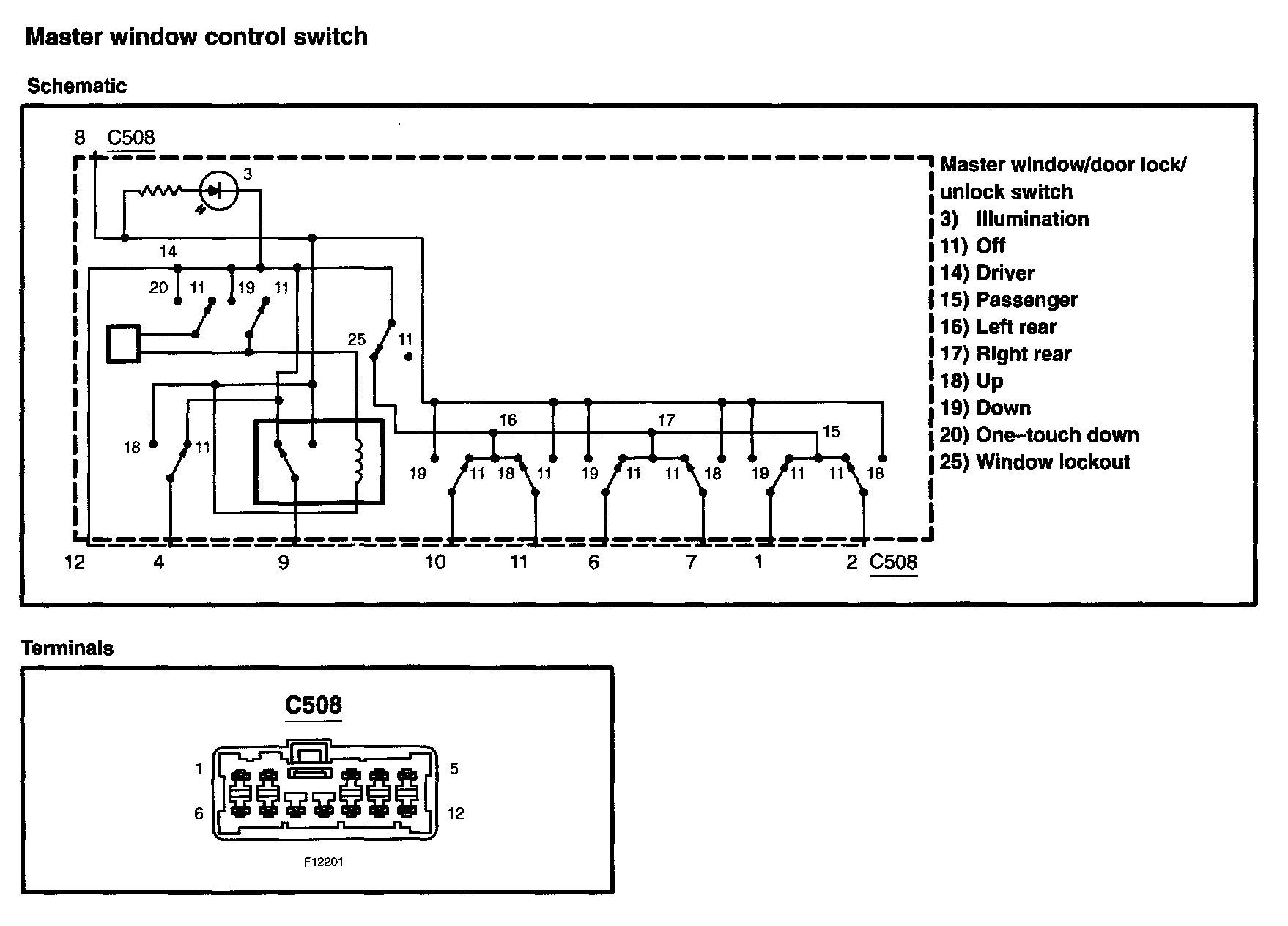

Master Window Control Switch

Introduction To Component Testing:

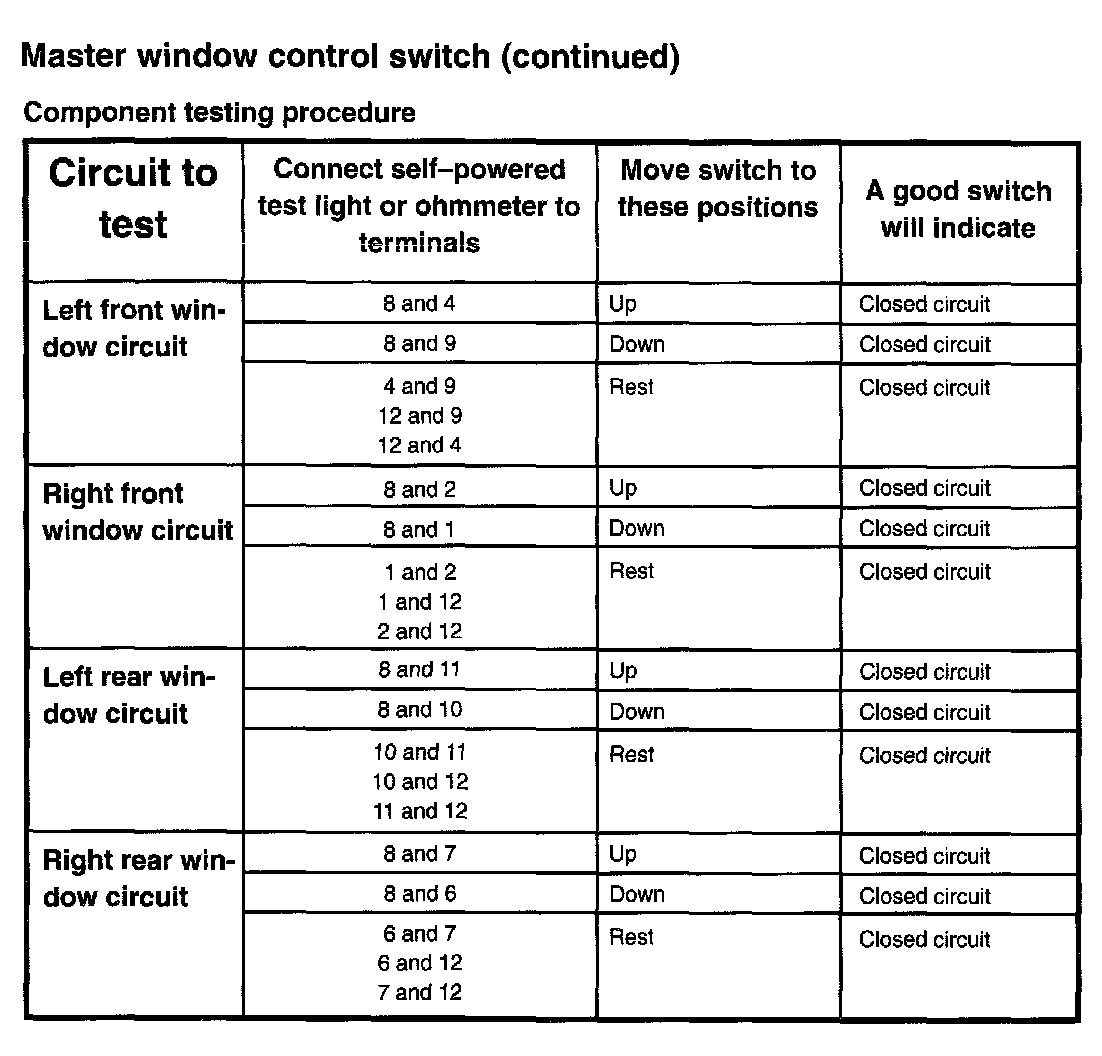

Master Window Control Switch:
