Pressure Cutoff Switch

REMOVAL

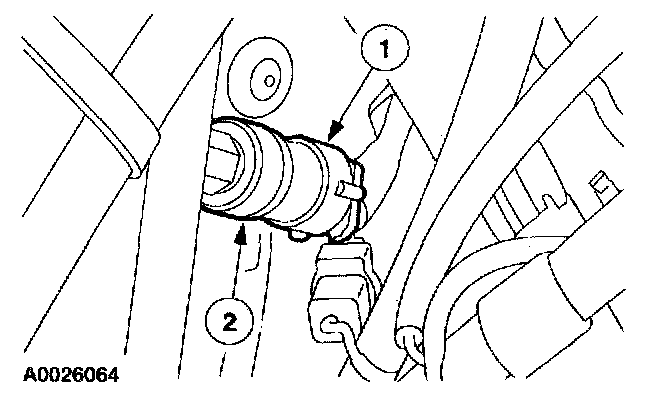

1. Remove the pressure cut-off switch.
1 Disconnect the A/C pressure cut-off switch electrical connector.
2 Remove the A/C pressure cut-off switch.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with PAG Compressor Oil YN-12-C or equivalent meeting Ford specification WSH-M1C231-B.
