Air Conditioning (A/C) Cycling Switch

REMOVAL

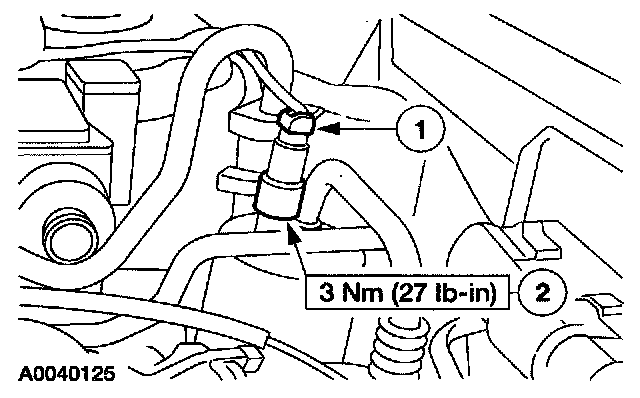

1. Remove the A/C cycling switch.
1 Disconnect the A/C cycling switch electrical connector.
2 Remove the A/C cycling switch.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with PAG Compressor Oil YN-12-C or equivalent meeting Ford specification WSH-M1C231-B.
