Cruise Control Switch: Service and Repair

REMOVAL
1. Remove the steering wheel.







2. Remove the steering wheel cover.

WARNING: WHEN CARRYING A LIVE AIR BAG, MAKE SURE THE BAG AND TRIM COVER ARE POINTED AWAY FROM YOUR BODY. IN THE UNLIKELY EVENT OF AN ACCIDENTAL DEPLOYMENT, THE BAG WILL THEN DEPLOY WITH MINIMAL CHANCE OF INJURY. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.







3. Remove the steering wheel frame.
1 Remove the nuts.
2 Disconnect the ground wire.
3 Remove the steering wheel frame.

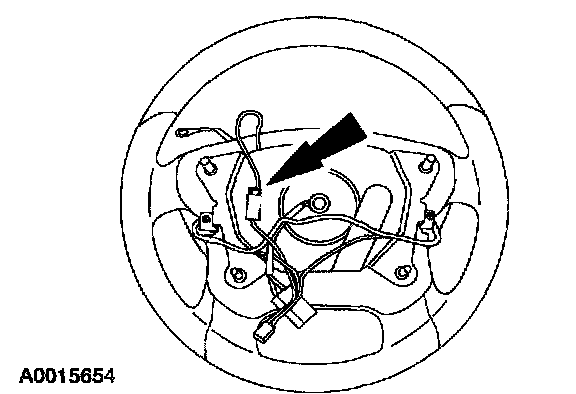

4. Disconnect the speed control switches electrical connector.

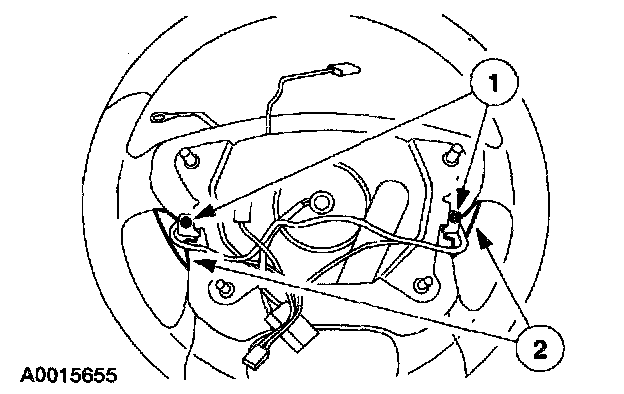

5. Remove the speed control switches.
1 Remove the screws.
2 Remove the speed control switches.

INSTALLATION
1. To install, reverse the removal procedure.
