Brake Switch (Cruise Control): Service and Repair

REMOVAL

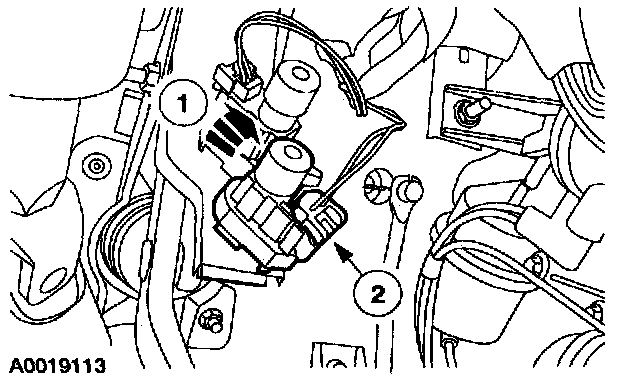

1. Remove the deactivator switch.
1 Disconnect the electrical connector.
2 Rotate counterclockwise 45 degrees and remove the deactivator switch.

INSTALLATION

CAUTION: Initial installation of a deactivator switch allows for one adjustment. If additional adjustments are required, install a new switch.

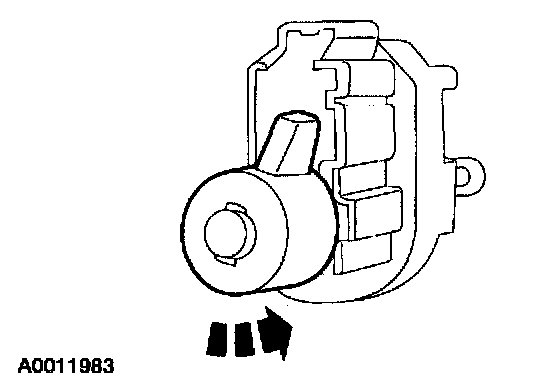

1. Release the plunger lock.
^ Turn the lock knob counterclockwise until the first click is felt.

2. Depress the brake pedal.

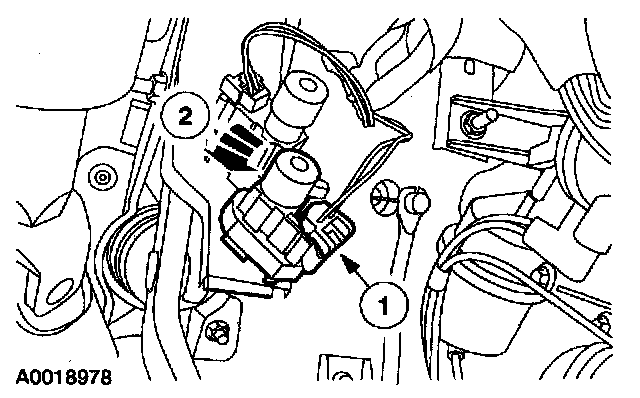

3. Install the deactivator switch.
1 Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2 Connect the electrical connector.

4. Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.

NOTE: There should be an extra click heard when tugging on the brake pedal.
