Parking Assist Switch: Service and Repair

PARKING AID SWITCH

REMOVAL
1. Remove the instrument panel center finish panel.

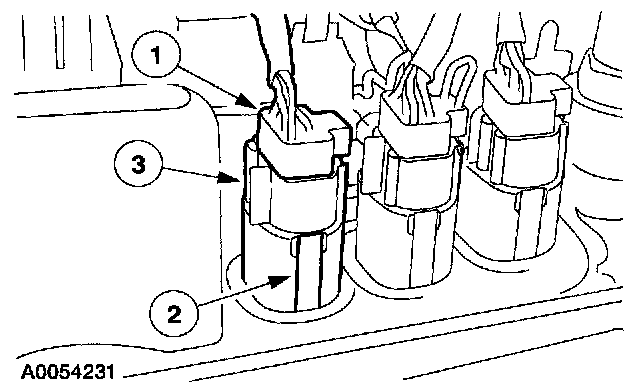

2. Remove the parking aid switch.
1 Disconnect the electrical connector.
2 Press the tabs.
3 Remove the parking aid switch.

INSTALLATION
1. To install, reverse the removal procedure.
