Parking Assist Distance Sensor: Service and Repair

PARKING AID SENSOR

REMOVAL

1. NOTE: The rear bumper removal is only necessary for access to the outer parking aid sensors. The inner parking aid sensors do not require rear bumper removal for access.

Remove the rear bumper.

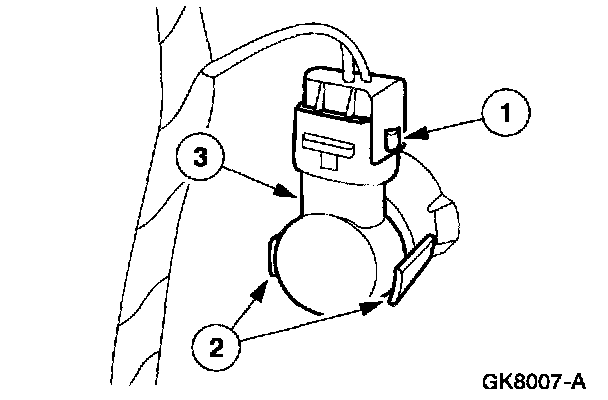

2. Remove the parking aid sensor.
1 Disconnect the electrical connector.
2 Release the tabs.
3 Remove the parking aid sensor.

INSTALLATION
1. To install, reverse the removal procedure.
