Safety Belt Buckle - Driver Side, Rear

Safety Belt Bolt Bit:

SPECIAL TOOL(S)

REMOVAL

WARNING: ALL SAFETY BELT ASSEMBLIES INCLUDING RETRACTORS, BUCKLES, FRONT SEAT BELT BUCKLE SUPPORT ASSEMBLIES (SLIDE BAR), SHOULDER BELT HEIGHT ADJUSTERS (IF SO EQUIPPED), CHILD SAFETY SEAT TETHER ATTACHMENTS, AND ATTACHING HARDWARE SHOULD BE INSPECTED AFTER ANY COLLISION. ALL BELT ASSEMBLIES SHOULD BE REPLACED UNLESS A QUALIFIED TECHNICIAN FINDS THE ASSEMBLIES SHOW NO DAMAGE AND OPERATE PROPERLY. BELT ASSEMBLIES NOT IN USE DURING A COLLISION SHOULD ALSO BE INSPECTED AND REPLACED IF EITHER DAMAGE OR IMPROPER OPERATION IS NOTED.

1. Pivot the seat bottom forward.
2. Pivot the seat backrest back.

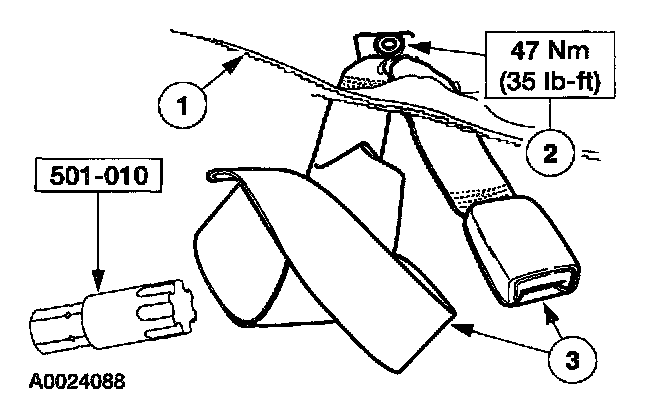

3. Remove the safety belt and buckle assembly.
1 Position the carpet out of the way.
2 Using the special tool, remove the bolt.
3 Feed the safety belt and buckle through the carpet and remove the assembly.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE:
^ Make sure the safety belt webbing is not twisted after repositioning the seat.
^ Make sure that the safety belt and buckle are accessible after repositioning the seat.
^ Make sure to tighten the bolt to specification.

2. Check the restraint system for correct operation.
