Tests AD

PINPOINT TEST AD: LFC 48IDTC B2444 - DRIVER SIDE CRASH SENSOR IS FAULTED

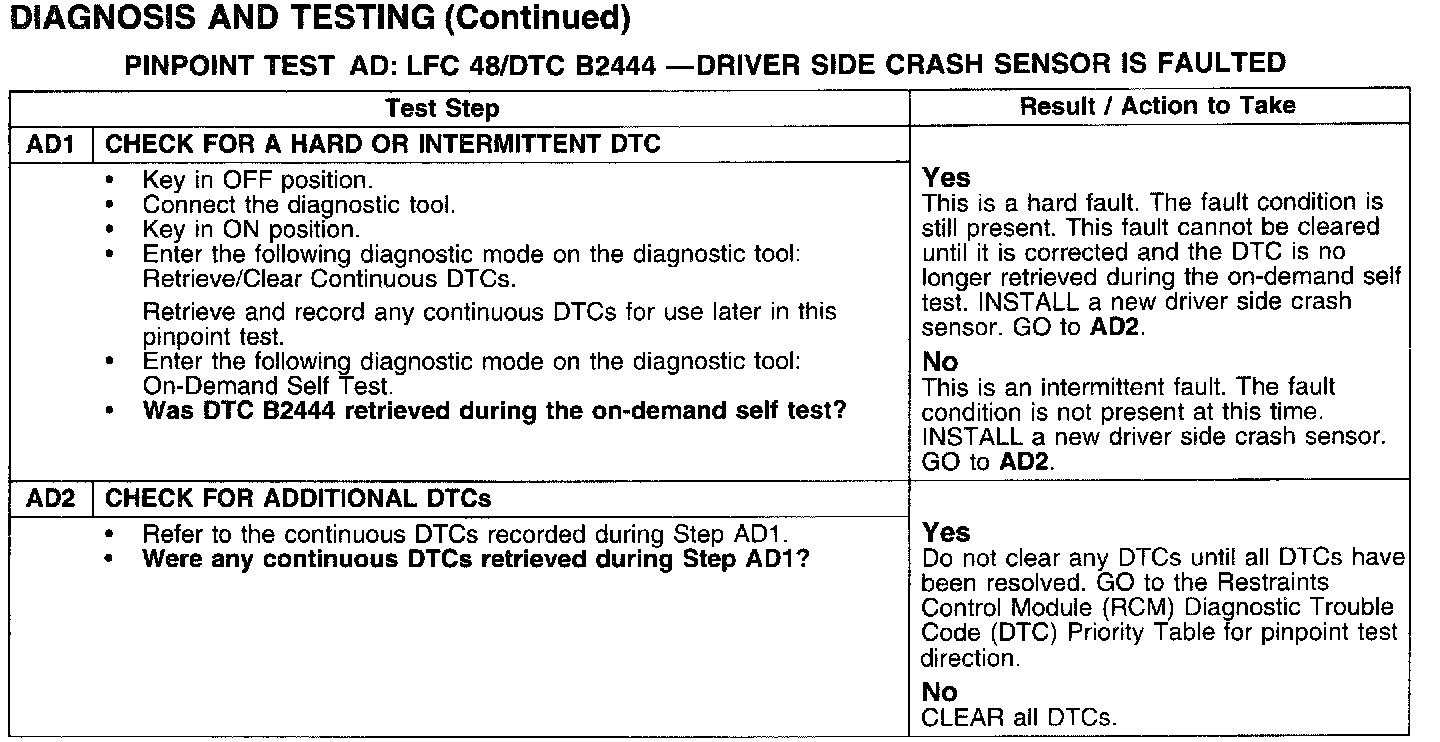

Test AD1-AD2:

Normal Operation
The driver side crash sensor monitors the severity of a crash event. If the crash event is severe enough, the sensor will signal the Restraints Control Module (RCM) to deploy the driver side air bag.

The RCM monitors the two-wire current loop to the driver side crash sensor for a signal that is out of the expected range. If the RCM detects a signal from the driver side crash sensor, indicating a fault, it will store Diagnostic Trouble Code (DTC) B2444 and flash a Lamp Fault Code (LFC) 48 (or a higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver side crash sensor fault can be caused by:
^ damaged driver side crash sensor.
