Tests AA

PINPOINT TEST AA: LFC 45/DTC U2018 - PASSENGER SIDE CRASH SENSOR COMMUNICATIONS FAULT

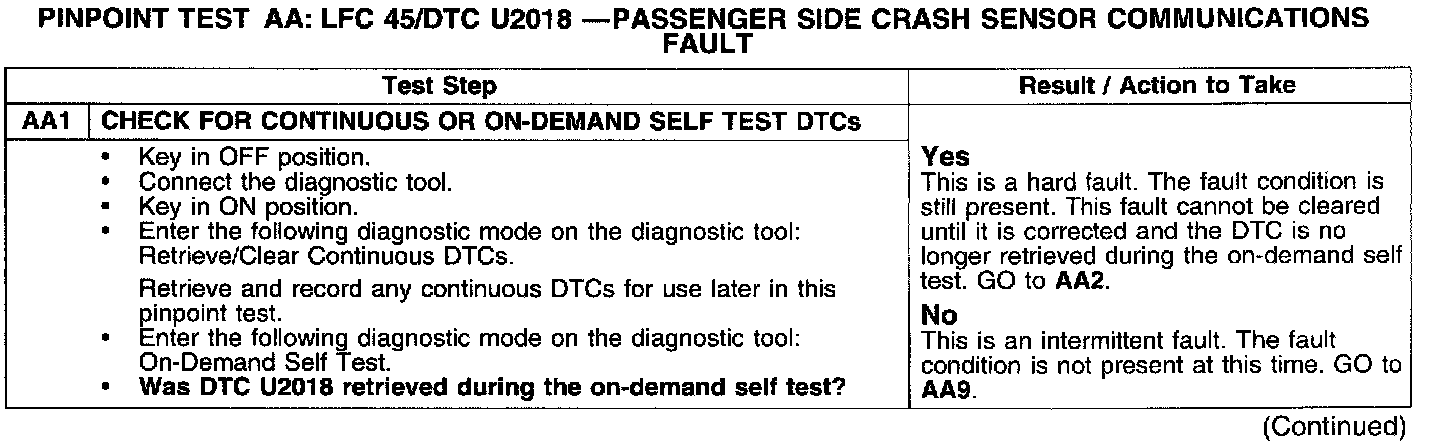

Test AA1:

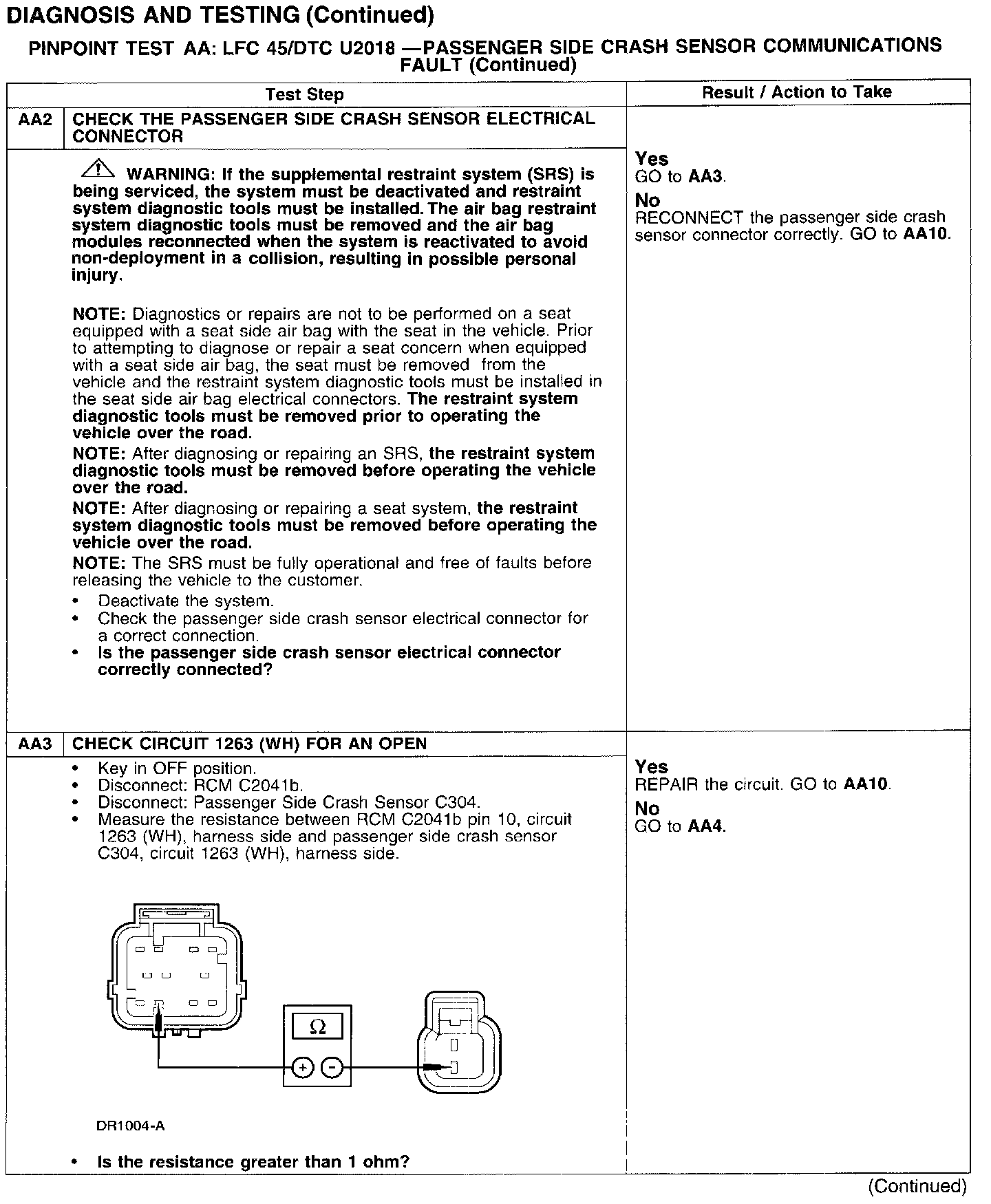

Test AA2-AA3:

Test AA4-AA5:

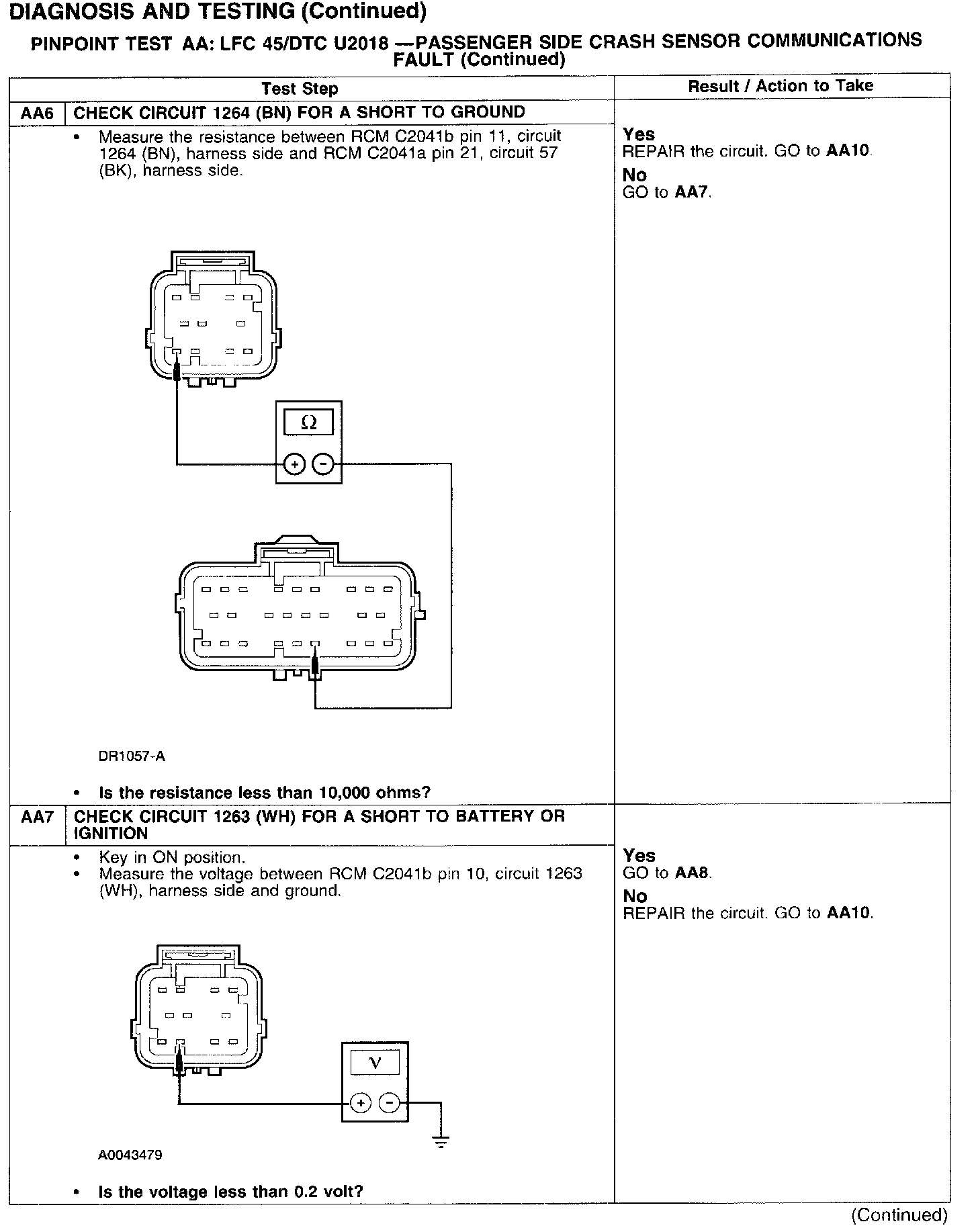

Test AA6-AA7:

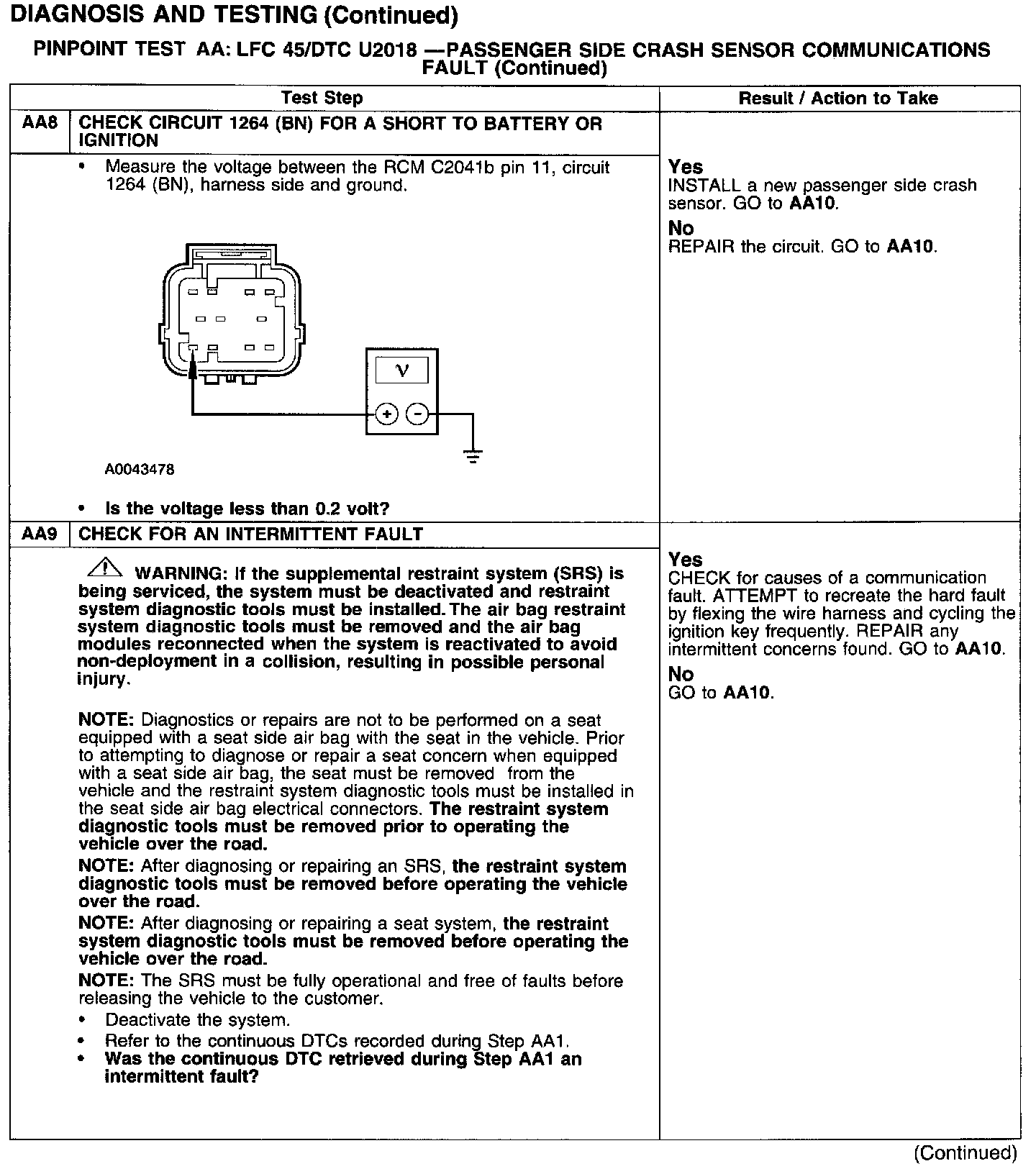

Test AA8-AA9:

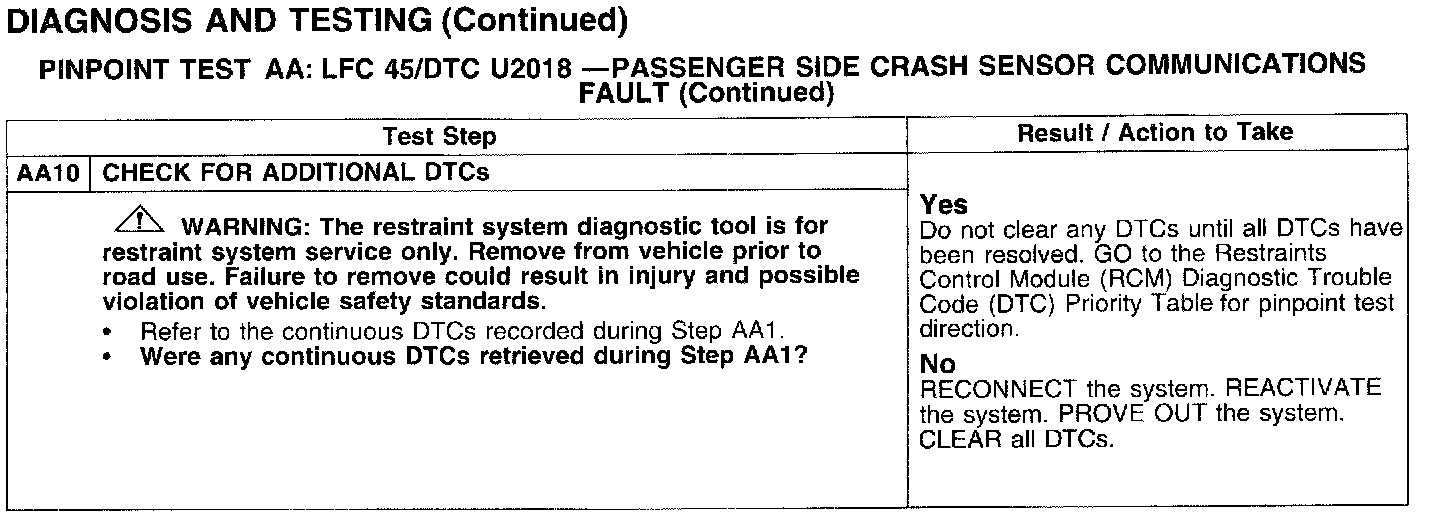

Test AA10:

Normal Operation
The passenger side crash sensor monitors the severity of a crash event. If the crash event is severe enough, the sensor will signal the Restraints Control Module (RCM) to deploy the passenger side air bag.

The RCM monitors the two-wire current loop to the passenger side crash sensor for a signal that is out of the expected range. If the RCM detects an out-of-range signal from the passenger side crash sensor, indicating a sensor communication fault, it will store Diagnostic Trouble Code (DTC) U2018 and flash a Lamp Fault Code (LFC) 45 (or a higher priority code if one exists) on the air bag indicator.

Possible Causes
A passenger side crash sensor communication fault condition can be caused by:
^ damaged wiring on circuit 1263 (WH).
^ damaged wiring on circuit 1264 (BN).
^ damaged passenger side crash sensor.
