Test Z

PINPOINT TEST Z: LFC 44/DTC U2017 - DRIVER SIDE CRASH SENSOR COMMUNICATIONS FAULT

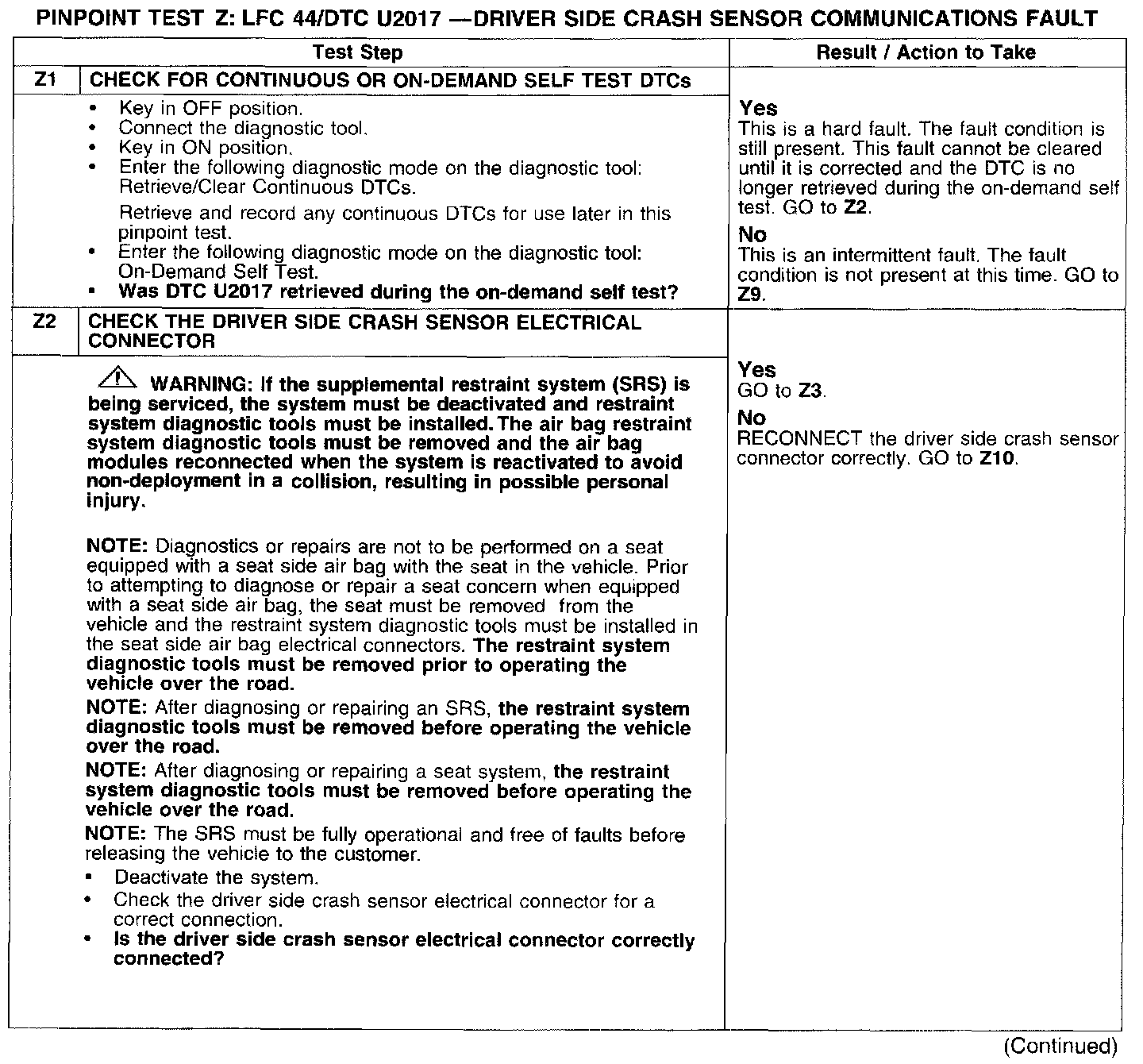

Test Z1-Z2:

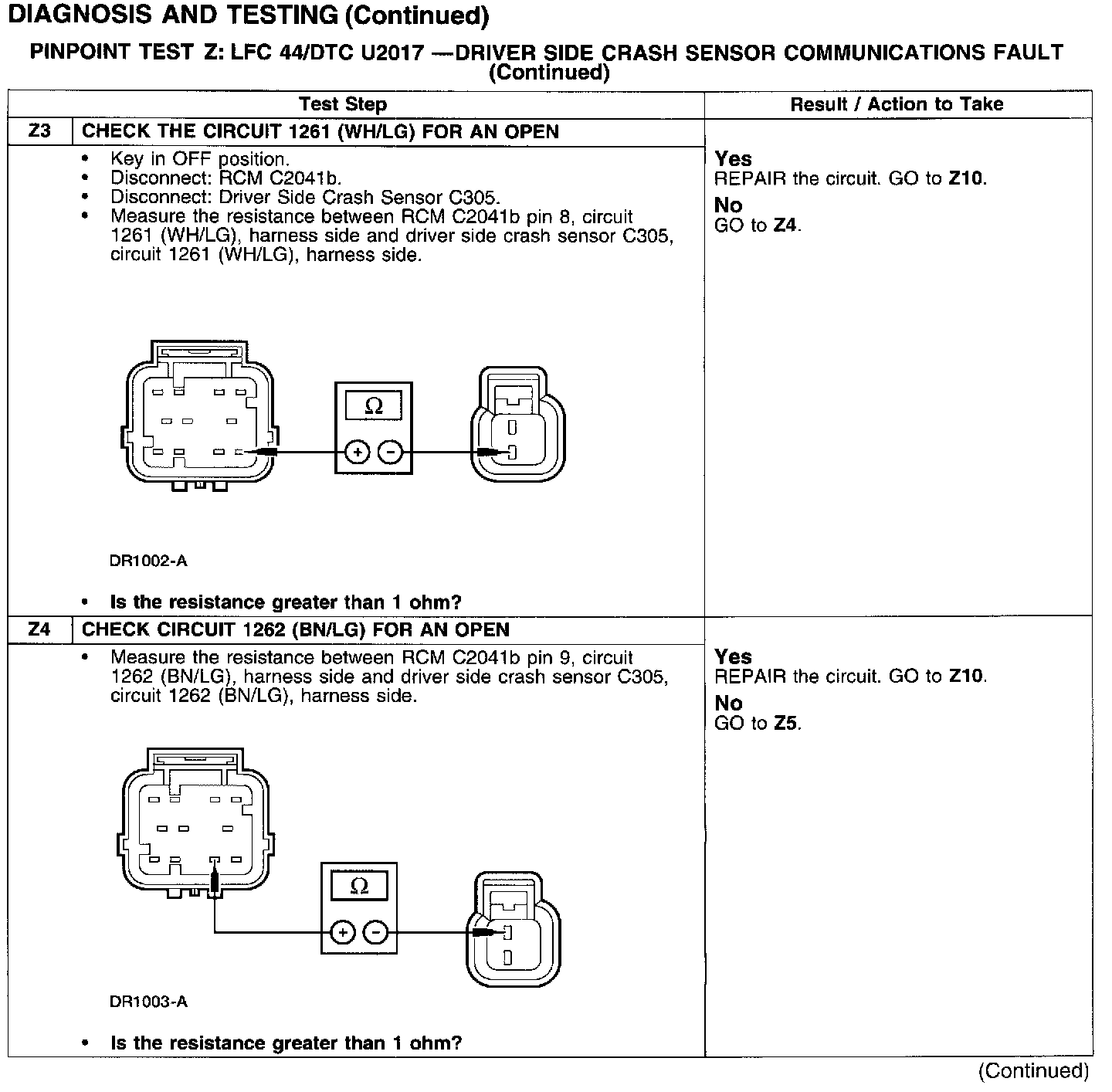

Test Z3-Z4:

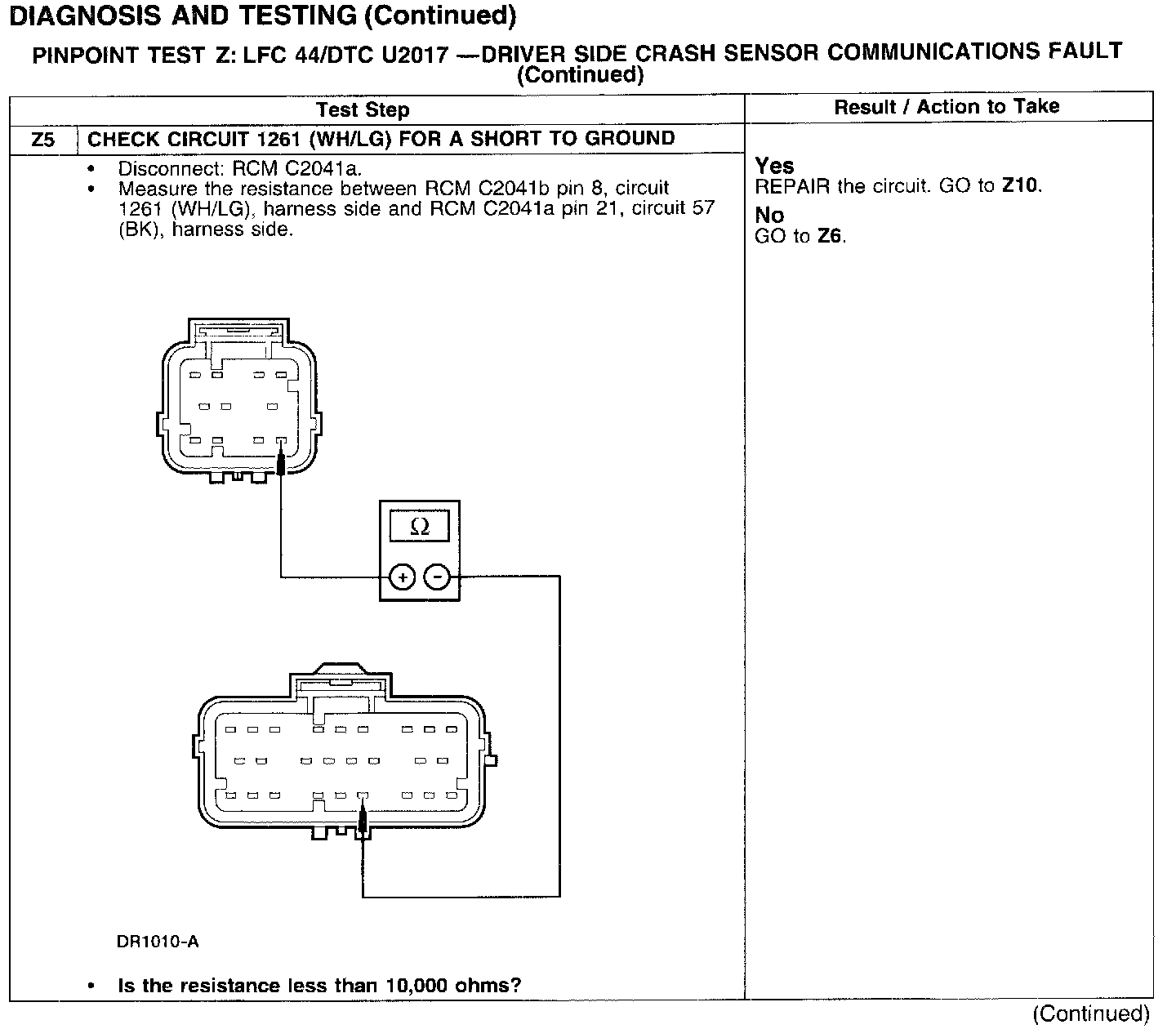

Test Z5:

Test Z6-Z7:

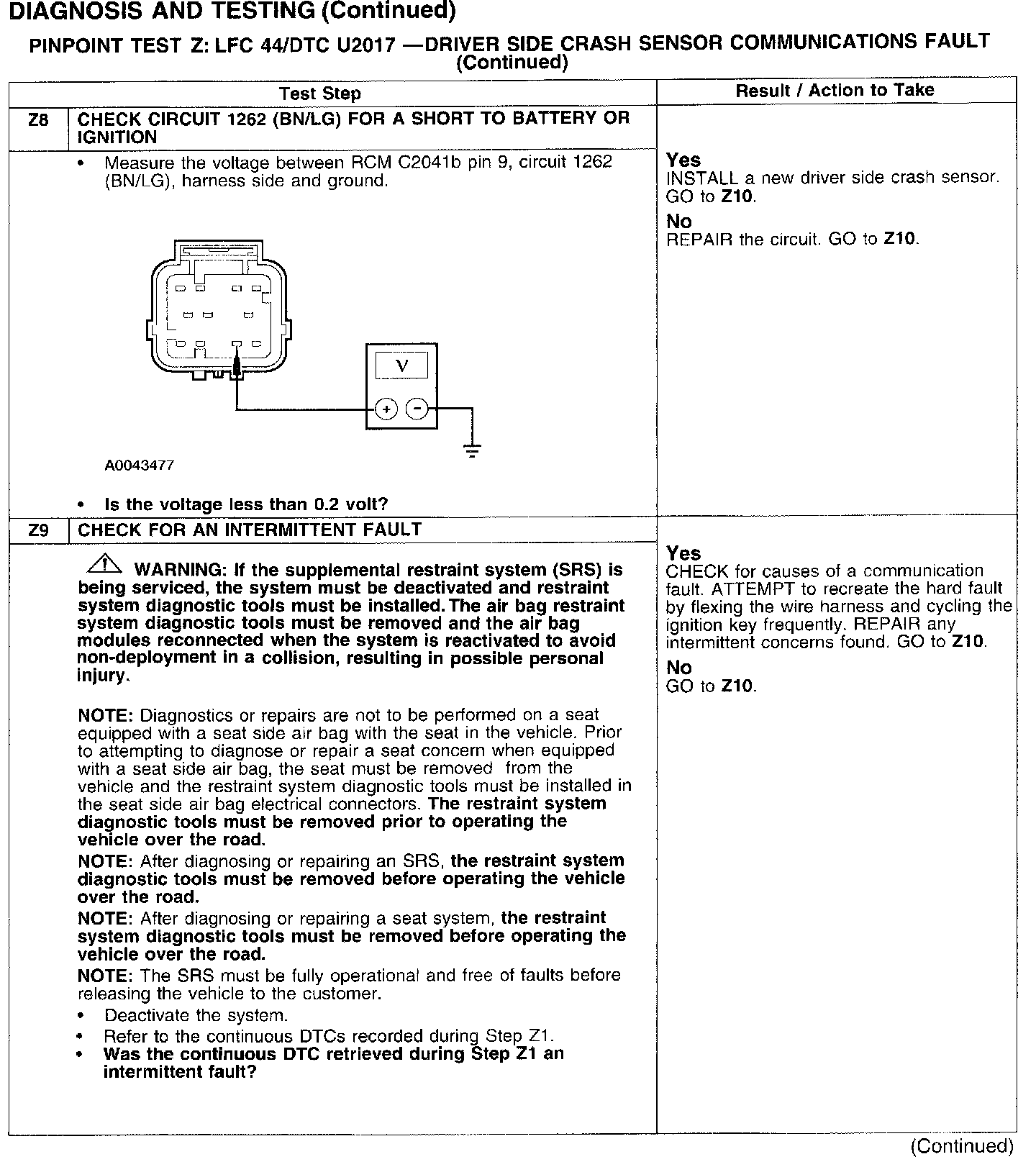

Test Z8-Z9:

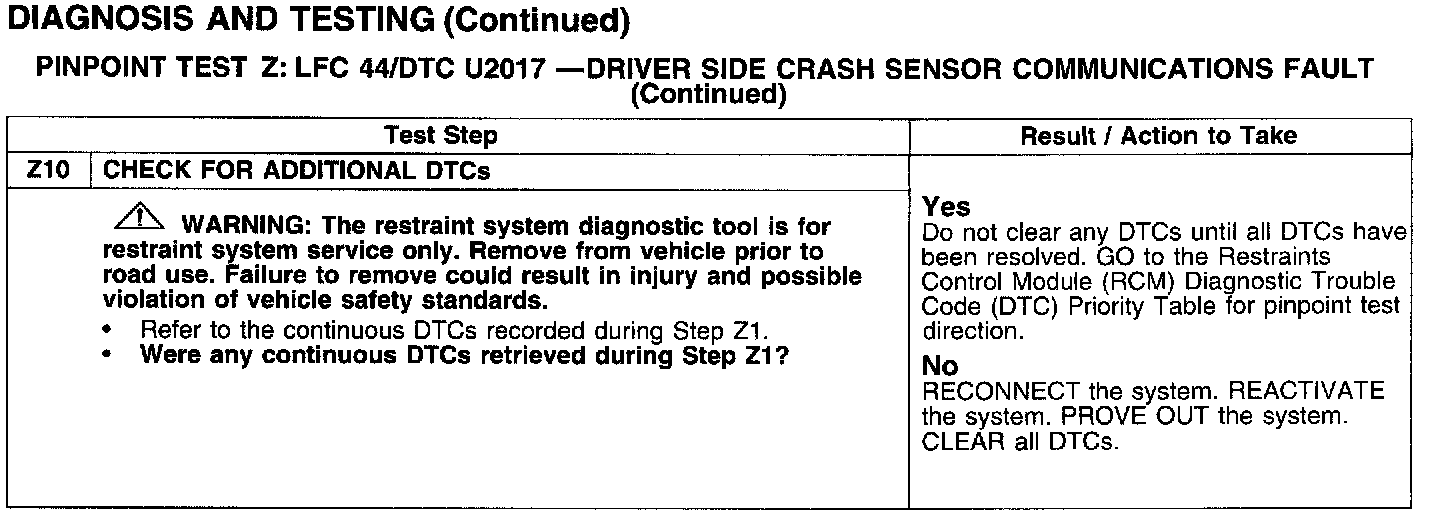

Test Z10:

Normal Operation
The driver side crash sensor monitors the severity of a crash event. If the crash event is severe enough, the sensor will signal the Restraints Control Module (RCM) to deploy the driver side air bag.

The RCM monitors the two-wire current loop to the driver side crash sensor for a signal that is out of the expected range. If the RCM detects an out-of-range signal from the driver side crash sensor, indicating a sensor communication fault, it will store Diagnostic Trouble Code (DTC) U2017 and flash a Lamp Fault Code (LFC) 44 (or a higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver side crash sensor communication fault condition can be caused by:
^ damaged wiring on circuit 1261 (WH/LG).
^ damaged wiring on circuit 1262 (BN/LG).
^ damaged driver side crash sensor.
