Test S

PINPOINT TEST S: LFC 36/DTC B1995 - DRIVER SIDE AIR BAG CIRCUIT RESISTANCE LOW

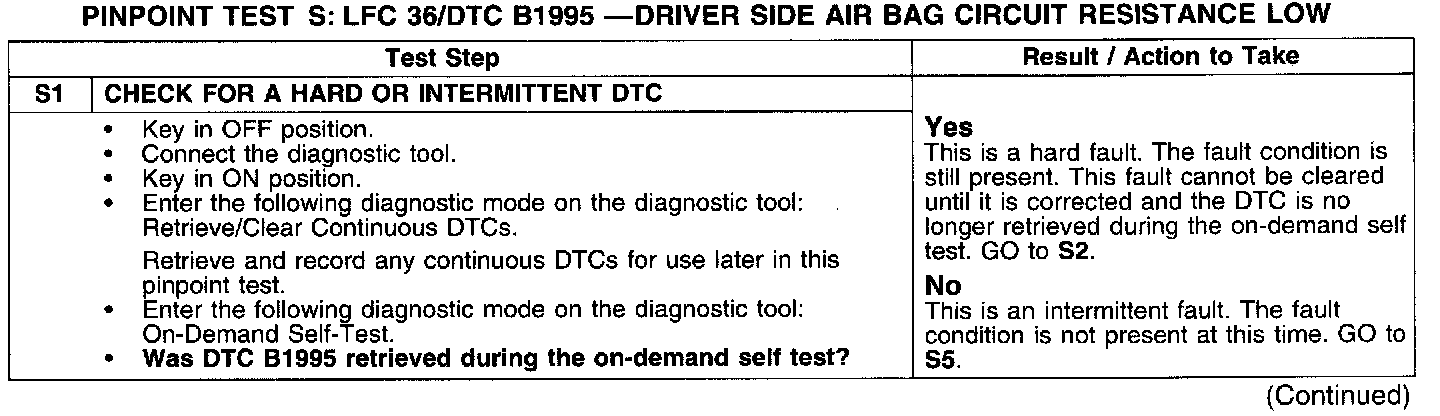

Test S1:

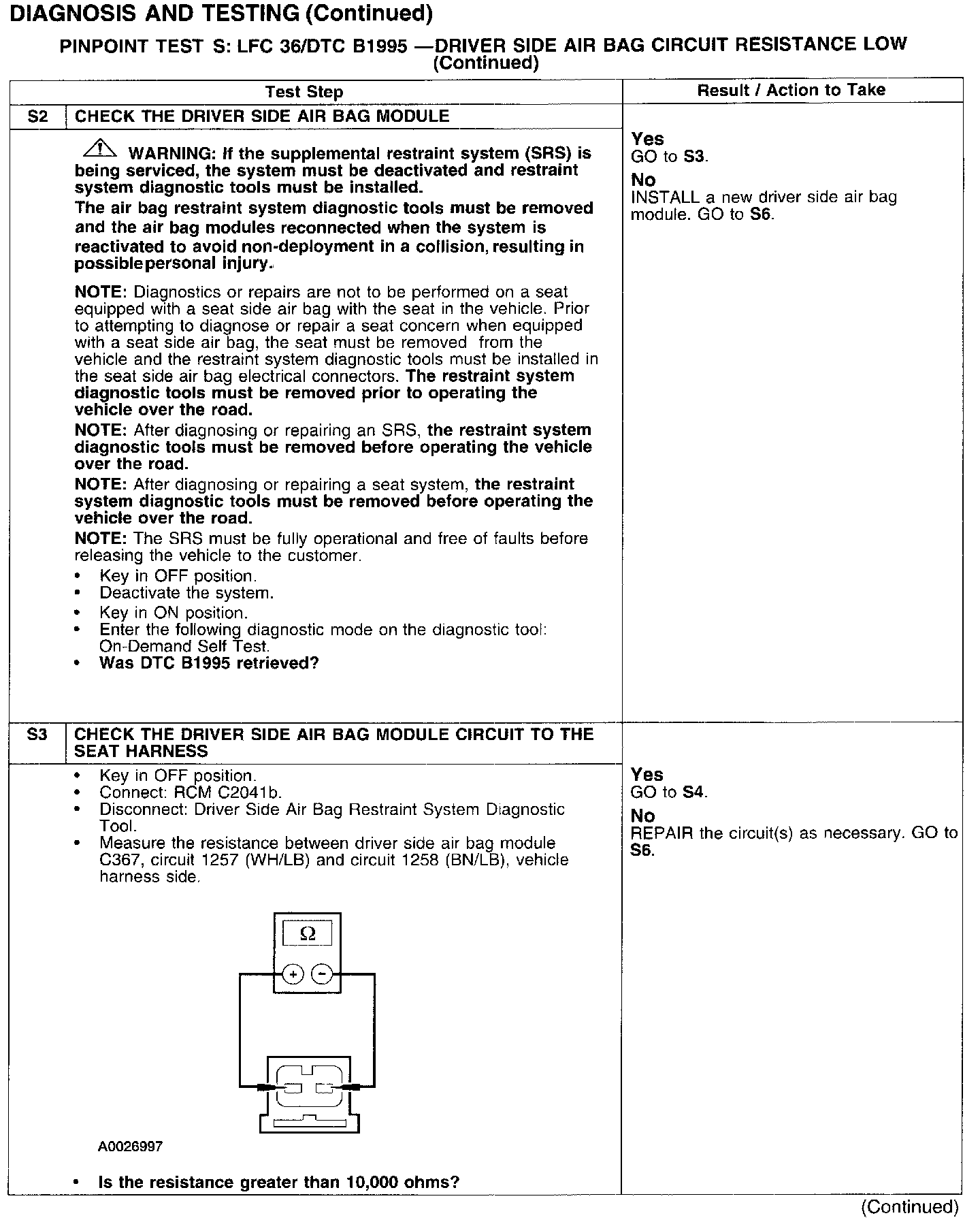

Test S2-S3:

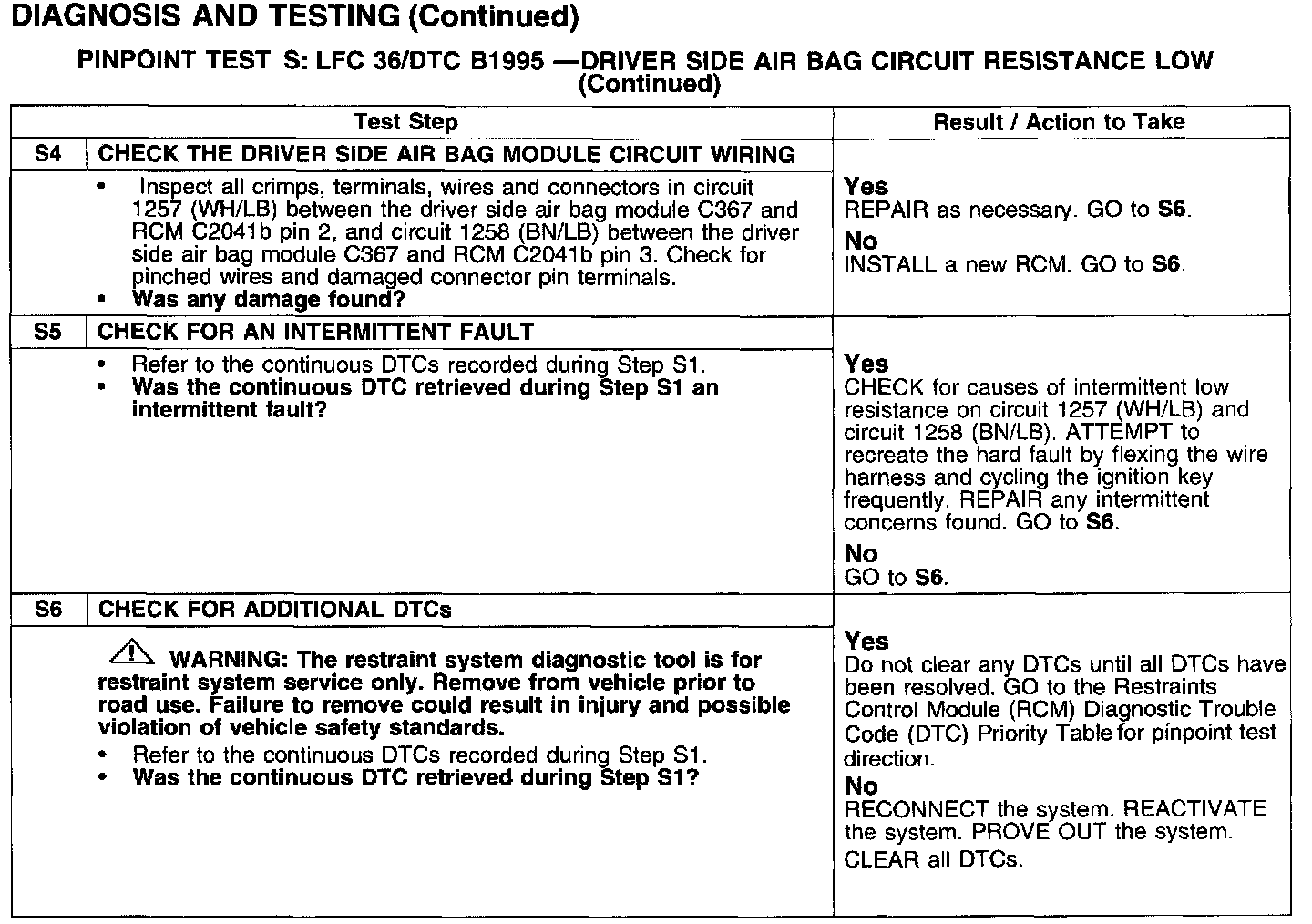

Test S4-S6:

Normal Operation
The Restraints Control Module (RCM) monitors the resistance of the driver side air bag circuit loop and the air bag module igniter at RCM C1 pin 2 and 3. If the resistance is less than 0.7 ohms, the RCM will store Diagnostic Trouble Code (DTC) B1995 and flash Lamp Fault Code (LFC) 36.

Possible Causes
A low resistance on the driver side air bag circuit can be caused by:
^ damaged wiring on circuit 1257 (WH/LB).
^ damaged wiring on circuit 1258 (BN/LB).
^ damaged driver side air bag module.
^ damaged RCM.
^ worn or damaged shorting bar or camming beam in C2041b or C314.
