Test Q

PINPOINT TEST Q: LFC 36/DTC B1993 - DRIVER SIDE AIR BAG CIRCUIT SHORTED TO GROUND

Test Q1:

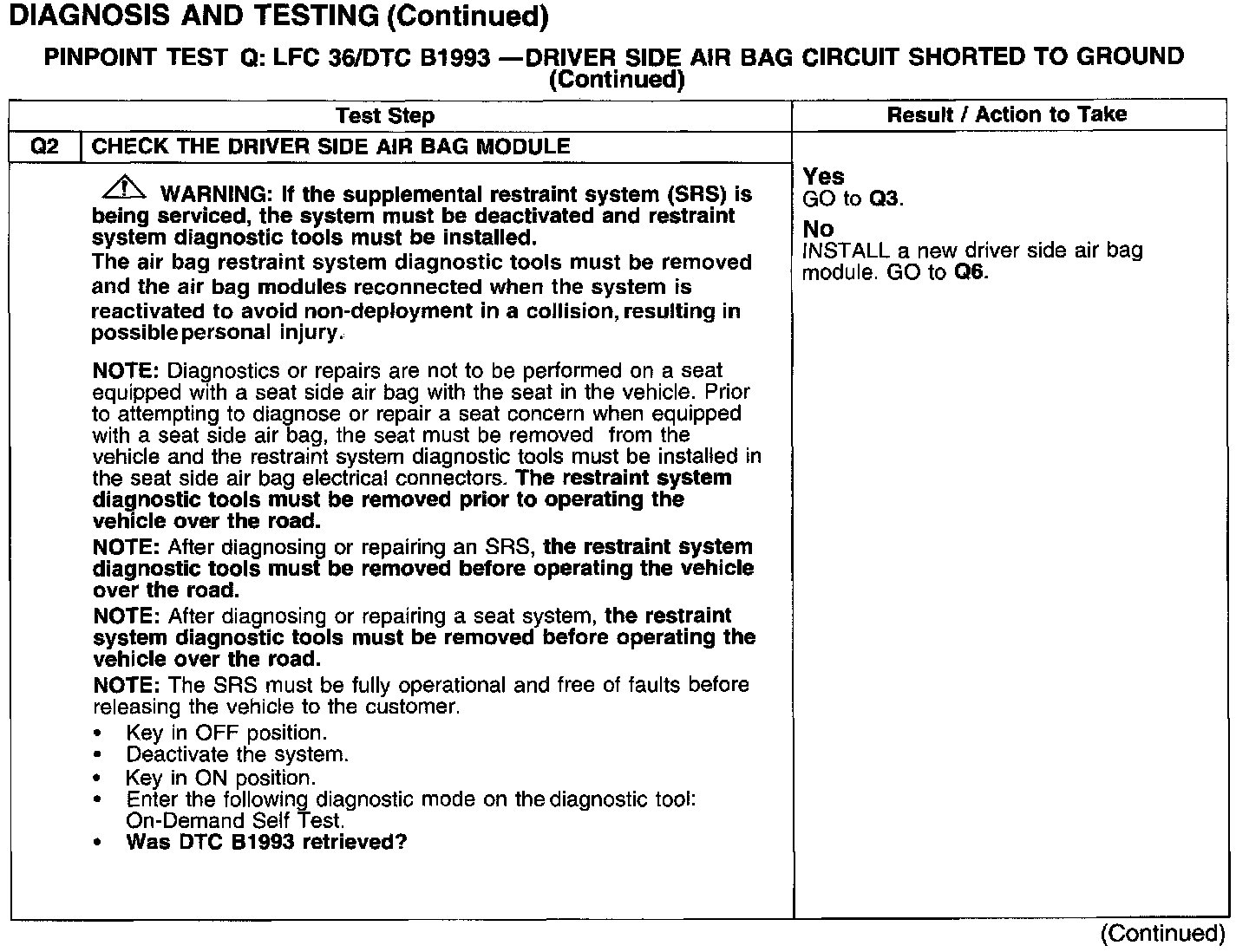

Test Q2:

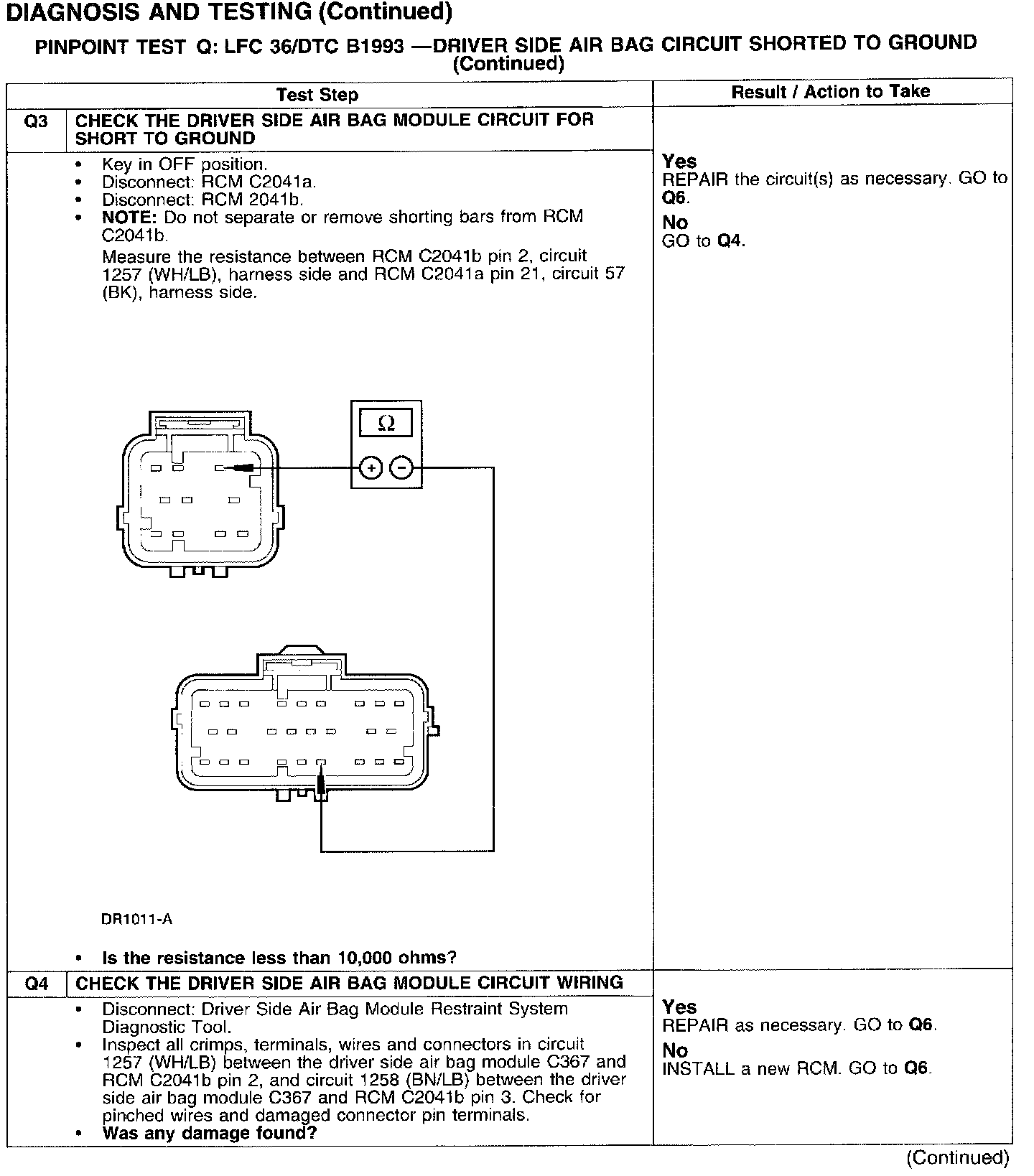

Test Q3-Q4:

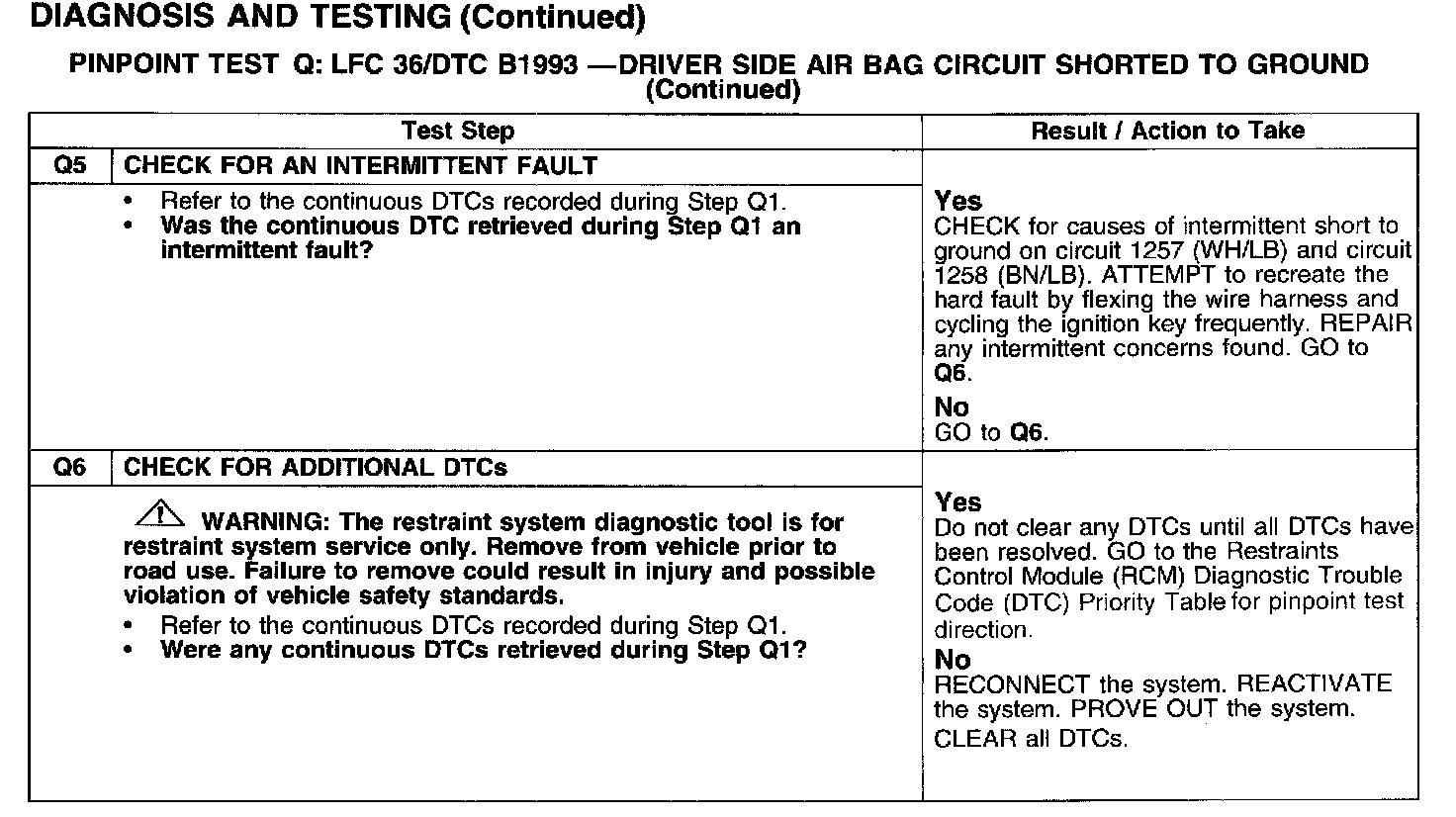

Test Q5-Q6:

Normal Operation
The Restraints Control Module (RCM) monitors the resistance to ground at RCM C1 pins 2 and 3. If the resistance is less than 10,000 ohms at either pin, the RCM will interpret that as a ground short, store Diagnostic Trouble Code (DTC) B1993 and flash Lamp Fault Code (LFC) 36.

Possible Causes
A driver side air bag circuit short to ground can be caused by:
^ grounded wiring on circuit 1257 (WH/LB).
^ damaged wiring on circuit 1258 (BN/LB).
^ ground short in the driver side air bag module.
^ an RCM internal concern.
