Test K

PINPOINT TEST K: LFC 29/DTC C1414 - INCORRECT VEHICLE IDENTIFICATION CODE

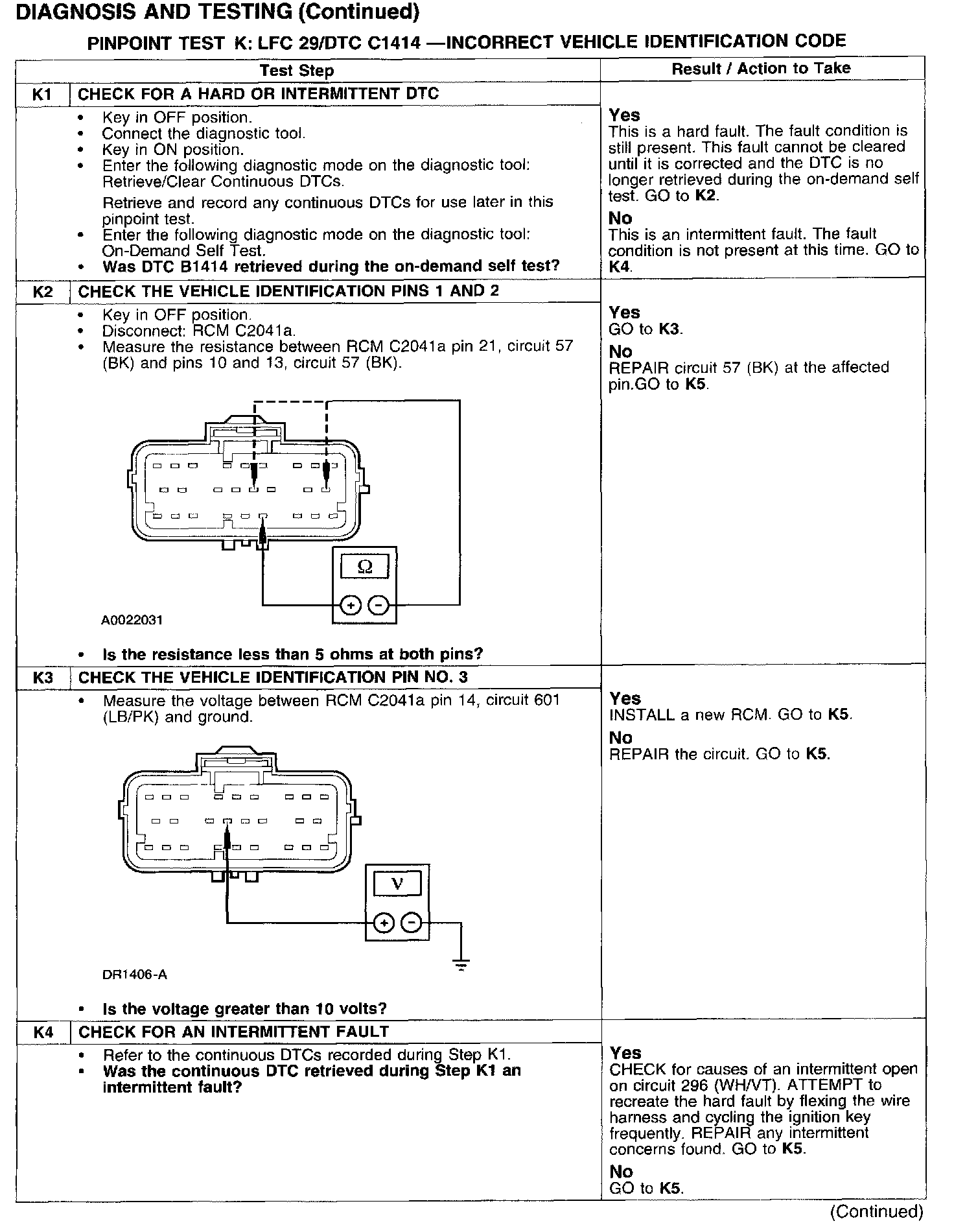

Test K1-K4:

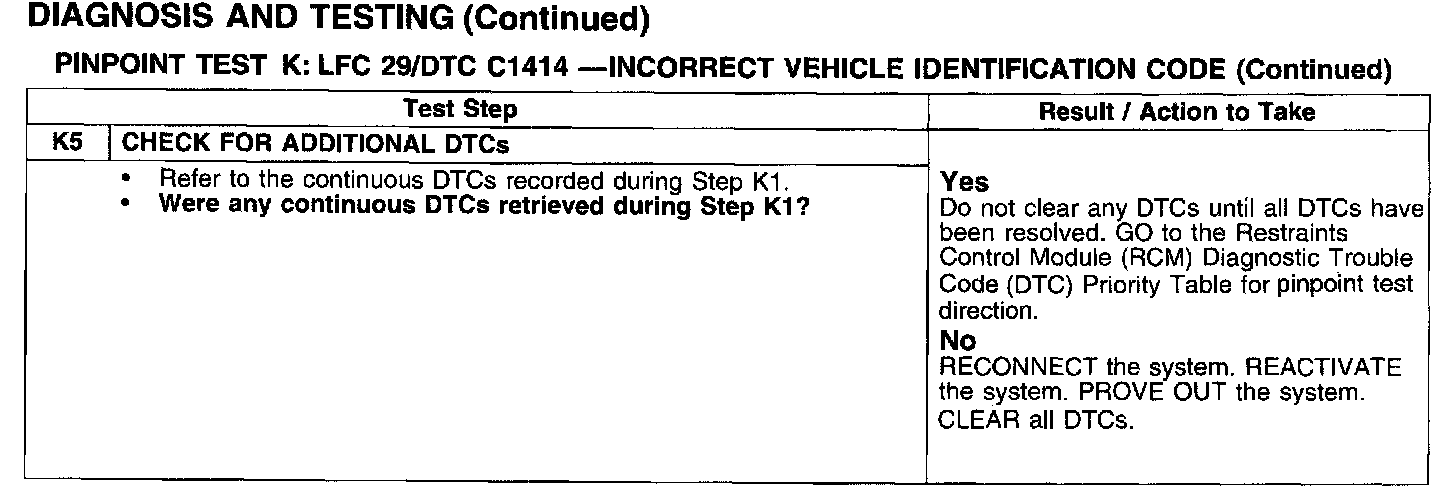

Test K5:

Normal Operation
The Restraints Control Module (RCM) monitors the voltage at pins 10, 13 and 14 to determine if it is installed on the correct vehicle. If the RCM detects an unexpected condition at any of these pins, it will store a Diagnostic Trouble Code (DTC) C1414 in memory and flash a Lamp Fault Code (LFC) 29 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
An incorrect vehicle identification code can be caused by:
^ an RCM installed on the wrong vehicle.
^ an incorrectly programmed RCM.
^ a wiring concern at RCM C2041a pins 10, 13 or 14.
