Test H

PINPOINT TEST H: LFC18/DTC B1882 - PASSENGER PRETENSIONER CIRCUIT SHORT TO BATTERY

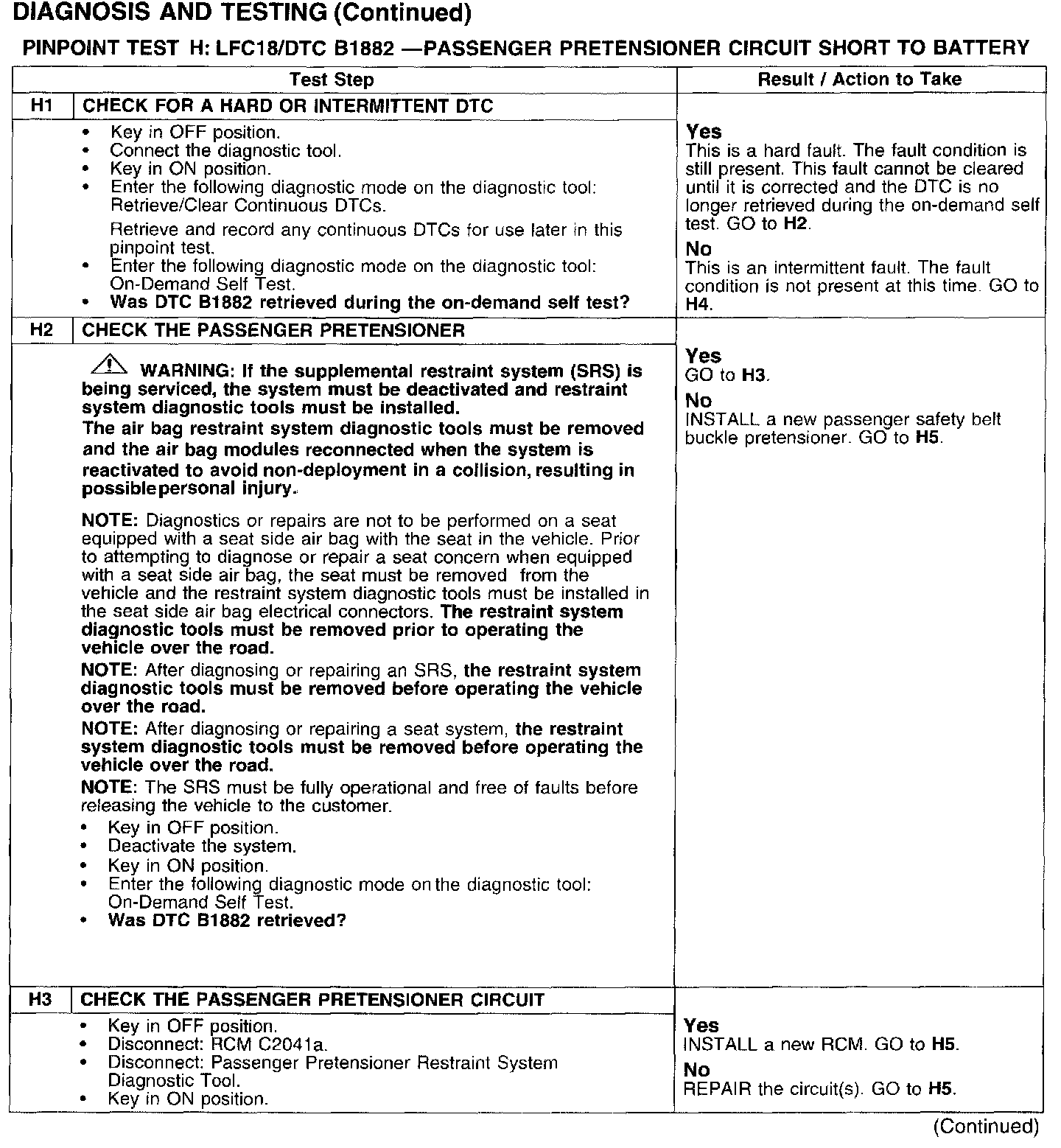

Test H1-H3:

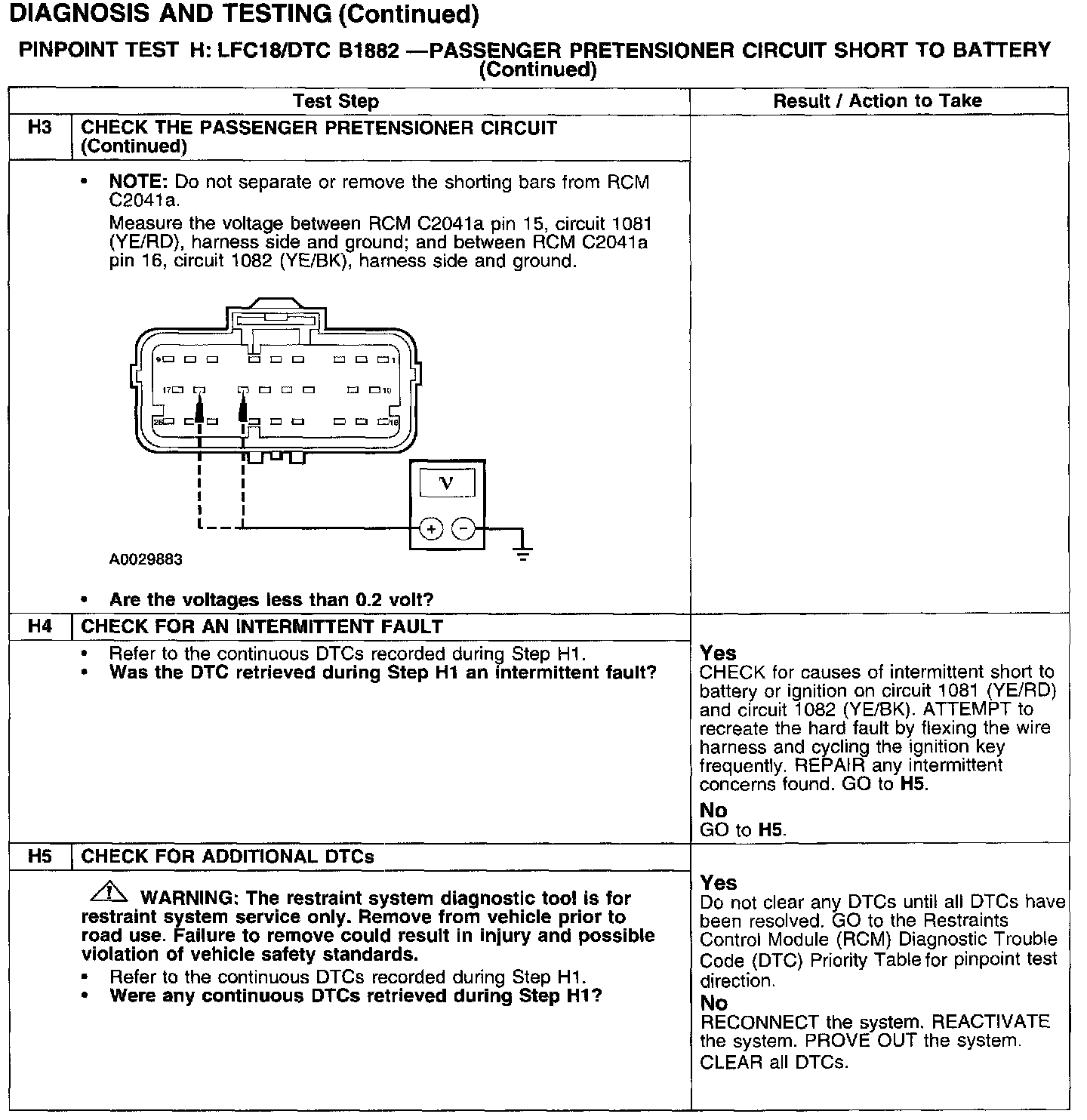

Test H3-H5:

Normal Operation
The Restraints Control Module (RCM) monitors the circuit to the passenger seat belt buckle pretensioner. When the RCM detects a circuit short to battery or ignition it will set Lamp Fault Code (LFC) 18 and Diagnostic Test Code (DTC) B1882.

Possible Causes
A passenger pretensioner circuit short to battery or ignition can be caused by:
^ a short to battery or ignition on circuit 1081 (YE/RD).
^ a short to battery or ignition on circuit 1082 (YE/BK).
^ a short to battery or ignition on the passenger pretensioner.
^ an RCM internal concern.
