Test G

PINPOINT TEST G: LFC17/DTC B1879 - DRIVER PRETENSIONER CIRCUIT SHORT TO GROUND

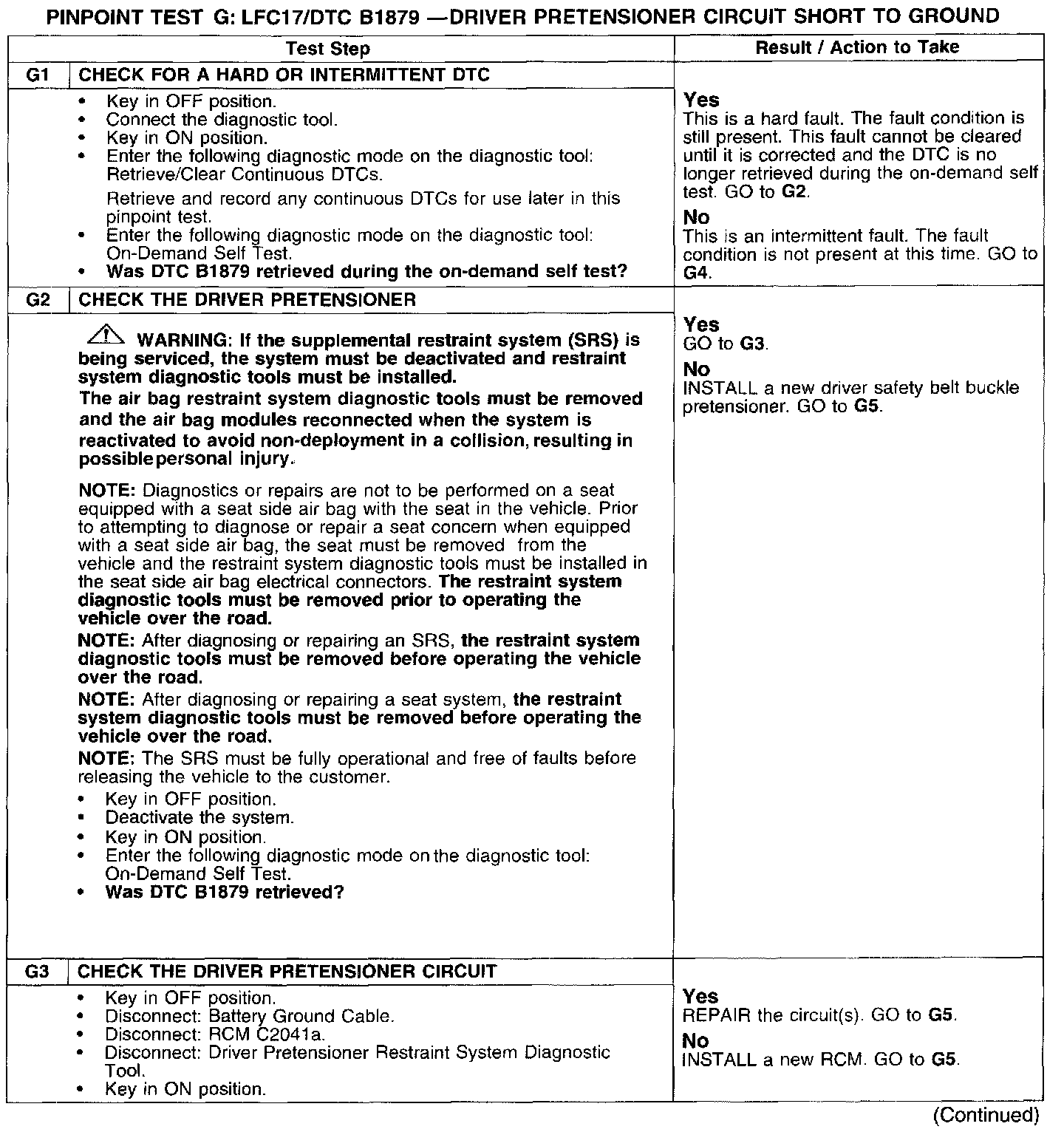

Test G1-G3:

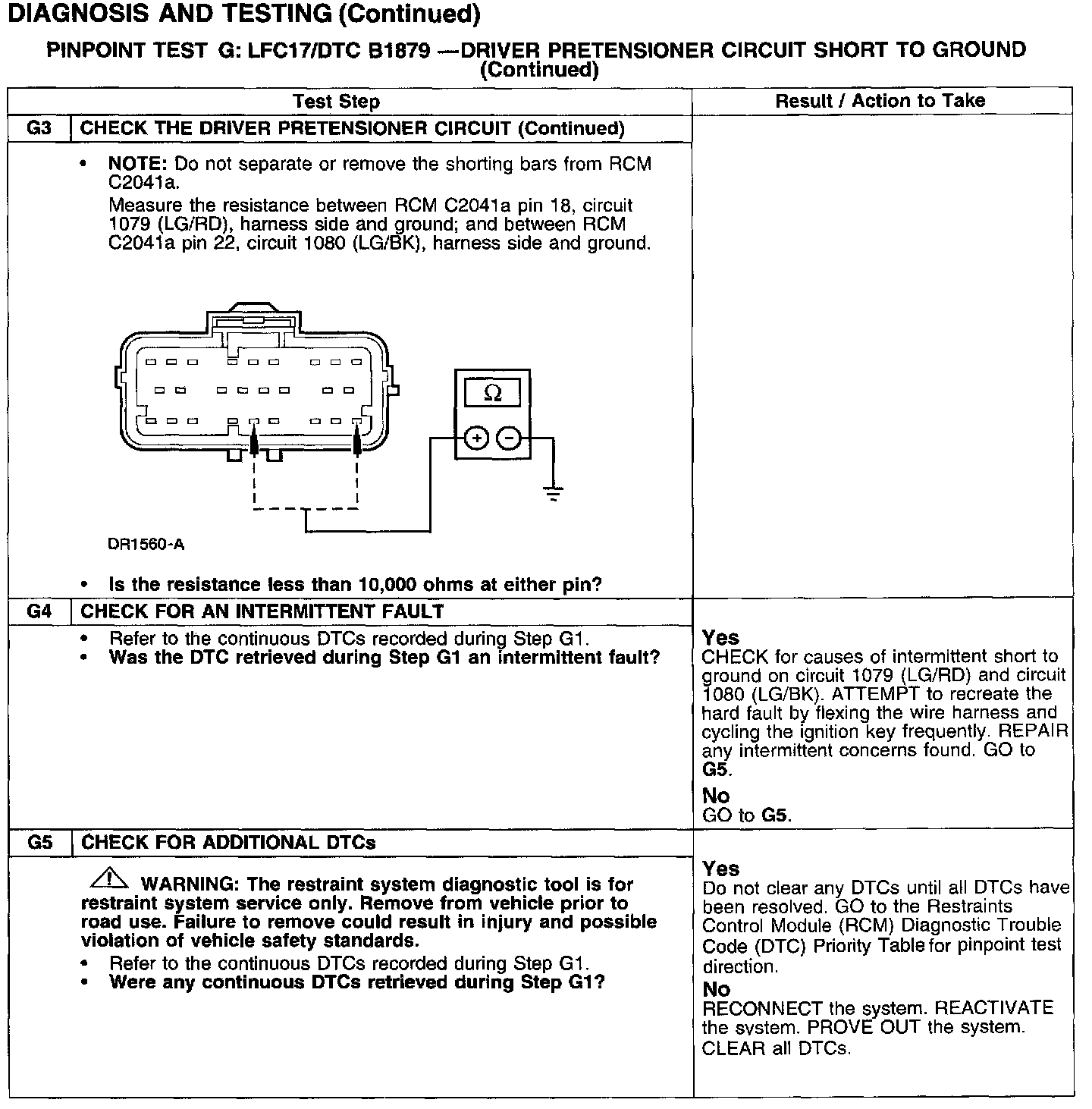

Test G3-G5:

Normal Operation
The Restraints Control Module (RCM) monitors the circuit to the driver seat belt buckle pretensioner. When the RCM detects a circuit short to ground it will set Lamp Fault Code (LFC) 17 and Diagnostic Test Code (DTC) B1879.

Possible Causes
A driver pretensioner circuit short to ground can be caused by:
^ a short to battery or ignition on circuit 1079 (LG/RD).
^ a short to battery or ignition on circuit 1080 (LG/BK).
^ a short to battery or ignition on the driver pretensioner.
^ an RCM internal concern.
