Clockspring Assembly / Spiral Cable: Service and Repair
Special Tool(s):
SPECIAL TOOL(S)
REMOVAL
WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND TRIM COVER POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ DO NOT SET A LIVE AIR BAG MODULE DOWN WITH THE TRIM COVER FACE DOWN. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
^ AIR BAG MODULES WITH DISCOLORED OR DAMAGED TRIM COVERS MUST BE INSTALLED NEW, NOT REPAINTED.
^ VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.
^ TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
PLEASE REFER TO THE APPROPRIATE COMPONENT OR SYSTEM TO DETERMINE LOCATION OF THE FRONT AIR BAG SENSORS.
THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).
^ THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
NOTE:
^ If a seat equipped with a seat mounted side airbag and/or a safety belt pretensioner (if equipped) system is being serviced the airbag system must be deactivated.
^ Restraint system diagnostic tool MUST be installed under the seats in the side airbag and safety belt pretensioner (if equipped) to floor connectors.
^ Diagnostics or repairs are not to be performed on a side airbag system and/or a safety belt pretensioner (if equipped) system with the seats in the vehicle. Prior to attempting to diagnose/repair the side airbag system and/or a safety belt pretensioner (if equipped) system the seats must be removed from the vehicle and the restraint system diagnostic tools must be installed in the side airbag and the safety belt pretensioner (if equipped) connectors at the floor connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.
^ Diagnostics may be performed on seat Systems other than the side airbag or the safety belt pretensioner (if equipped) system (lumbar, climate controlled, heated, power seat track) with the seat installed in the vehicle as long as the restraint system diagnostic tools are installed under the seats in the side airbag and safety belt pretensioner to floor connectors.
^ After diagnosing/repairing a seat system the restraint system diagnostic tools must be removed before operating the vehicle over the road.
^ Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
All vehicles
1. Make sure the wheels are in the straight-ahead position.
2. Disconnect the battery ground cable and wait at least one minute.
3. Remove the steering wheel.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE STEERING WHEEL REMOVAL AND INSTALLATION PROCEDURE.
Vehicles with tilt column
4. Position the steering column completely downward.
All vehicles

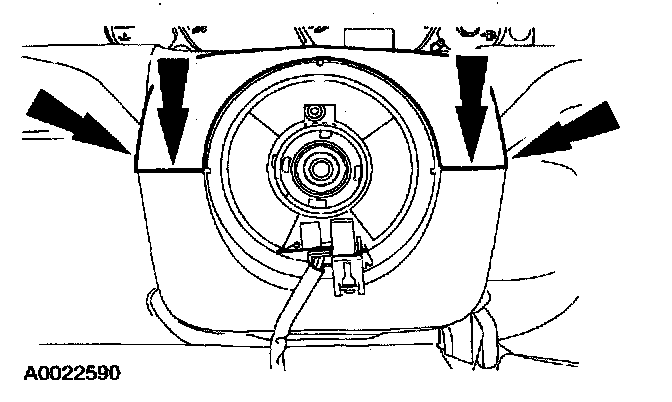

5. Push in where indicated, releasing the retaining tabs, and remove the upper steering column shroud.

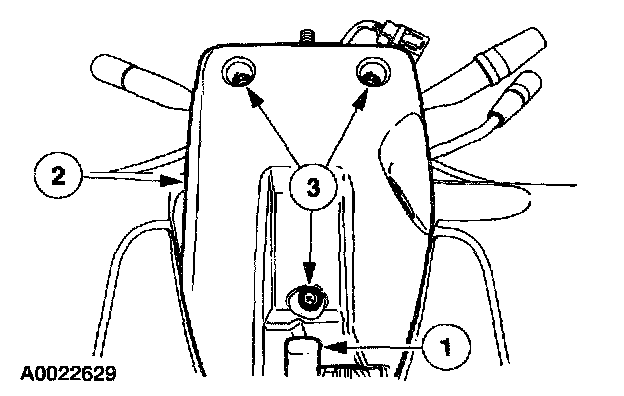

6. Remove the lower steering column shroud.
1 Release the tilt column locking lever, if equipped.
2 Remove the three screws.
3 Remove the lower steering column shroud.
NOTE: The steering column must be in the raised position, with the tilt column lever released (if equipped), to remove the lower steering column shroud.

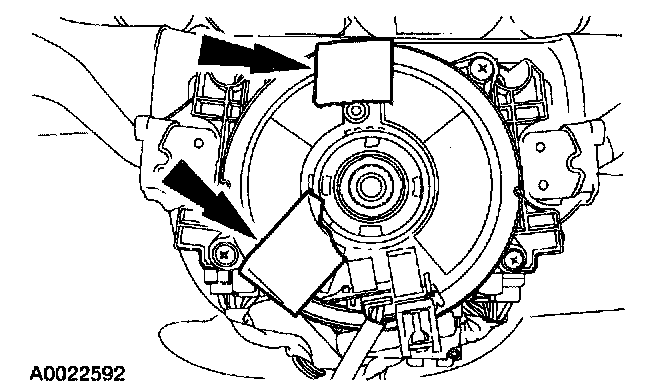

7. Apply two strips of masking tape across the clockspring to prevent accidental rotation when the clockspring is removed.

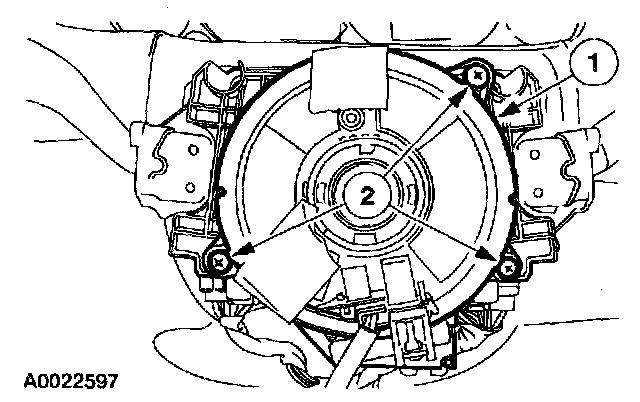

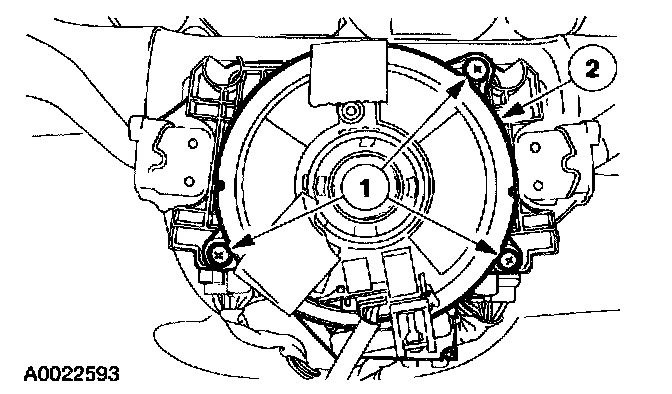

8. Separate the clockspring from the steering column.
1 Remove the screws.
2 Pull out and separate the clockspring from the steering column.

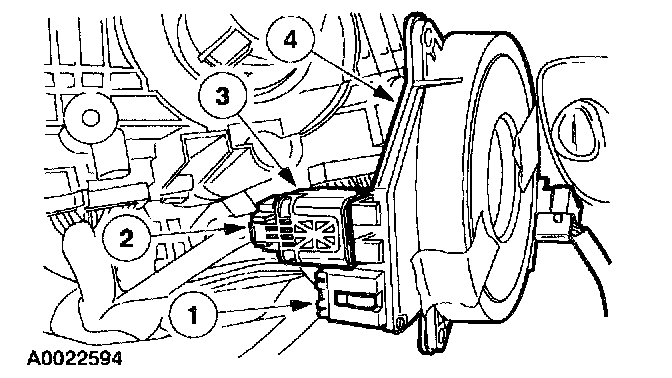

9. Remove the clockspring.
1 Disconnect the accessory electrical connector.
2 Push to release the clockspring electrical connector locking clip.
3 With the clockspring electrical connector locking clip in the released position, pull and disconnect the clockspring electrical connector.
4 Remove the clockspring.
10. Attach the restraint system diagnostic tool to the vehicle harness side of the clockspring electrical connector at the steering column.
INSTALLATION
WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND TRIM COVER POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ DO NOT SET A LIVE AIR BAG MODULE DOWN WITH THE TRIM COVER FACE DOWN. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
^ AIR BAG MODULES WITH DISCOLORED OR DAMAGED TRIM COVERS MUST BE INSTALLED NEW, NOT REPAINTED.
^ VEHICLE SENSOR ORIENTATION IS CRITICAL FOR PROPER SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.
^ TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
PLEASE REFER TO THE APPROPRIATE COMPONENT OR SYSTEM TO DETERMINE LOCATION OF THE FRONT AIR BAG SENSORS.
THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).
^ THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
NOTE:
^ If a seat equipped with a seat mounted side airbag and/or a safety belt pretensioner (if equipped) system is being serviced the airbag system must be deactivated.
^ Restraint system diagnostic tools MUST be installed under the seats in the side airbag and safety belt pretensioner (if equipped) to floor connectors.
^ Diagnostics or repairs are not to be performed on a side airbag system and/or a safety belt pretensioner (if equipped) system with the seats in the vehicle. Prior to attempting to diagnose/repair the side airbag system and/or a safety belt pretensioner (if equipped) system the seats must be removed from the vehicle and the restraint system diagnostic tools must be installed in the side airbag and the safety belt pretensioner (if equipped) connectors at the floor connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.
^ Diagnostics may be performed on seat systems other than the side airbag or the safety belt pretensioner (if equipped) system (lumbar, climate controlled, heated, power seat track) with the seat installed in the vehicle as long as the restraint system diagnostic tools are installed under the seats in the side airbag and safety belt pretensioner to floor connectors.
^ After diagnosing/repairing a seat system the restraint system diagnostic tools must be removed before operating the vehicle over the road.
^ Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
All vehicles
1. Connect the battery ground cable.
2. With the restraint system diagnostic tools installed at all deployable devices, prove out the air bag system. Prove Out Procedure
3. Disconnect the battery ground cable and wait at least one minute.
Vehicles receiving a new clockspring
4. Remove the key from the clockspring, holding the rotor in its centralized position.
^ Do not allow the clockspring rotor to turn from this position.
NOTE: A new clockspring is supplied in a centralized position and held there with a key.
Vehicles needing clockspring recentering

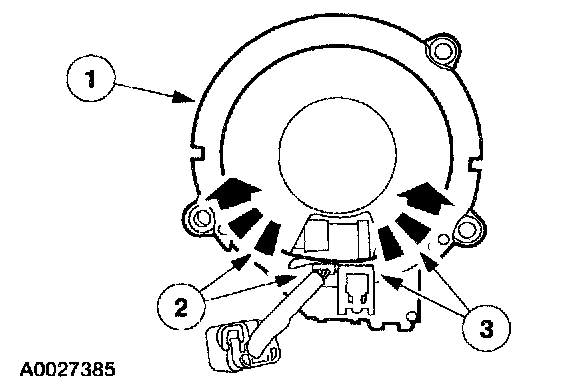

5. Centralize the clockspring.
1. Hold the clockspring outer housing stationary.
2. While turning the rotor clockwise, carefully feel for the ribbon wire to run out of length, and a slight resistance is felt. Stop turning at this point.
CAUTION: Overturning will destroy the clockspring. The internal ribbon wire acts as the stop and can be broken from its internal connection.
3. Turn the rotor counterclockwise approximately 2-3/4 turns. This is the center point of the clockspring.
^ Do not allow the rotor to turn from this position.
WARNING: INCORRECT CENTRALIZATION MAY RESULT IN PREMATURE COMPONENT FAILURE. IF IN DOUBT WHEN CENTRALIZING THE CLOCKSPRING, REPEAT THE CENTRALIZING PROCEDURE. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY.
CAUTION: Make sure the road wheels are in the straight ahead position.
NOTE: If a clockspring has rotated out of center, follow through with this step.
All vehicles
6. Make sure the road wheels are in the straight ahead position.
7. Remove the restraint system diagnostic tool from the vehicle harness side of the clockspring electrical connector at the steering column.

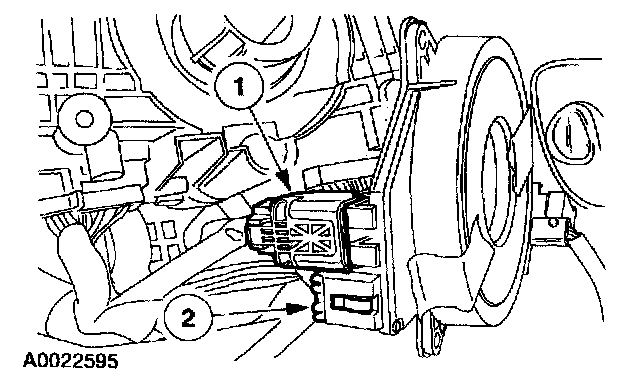

8. Connect the clockspring electrical connectors.
1 Connect the clockspring electrical connector.
2 Connect the accessory electrical connector.
NOTE: Recenter clockspring as needed.
Vehicle repairs reusing the same clockspring
9. Remove the tape applied during clockspring removal.
NOTE: When the tape is removed, do not allow the clockspring to turn.
All vehicles

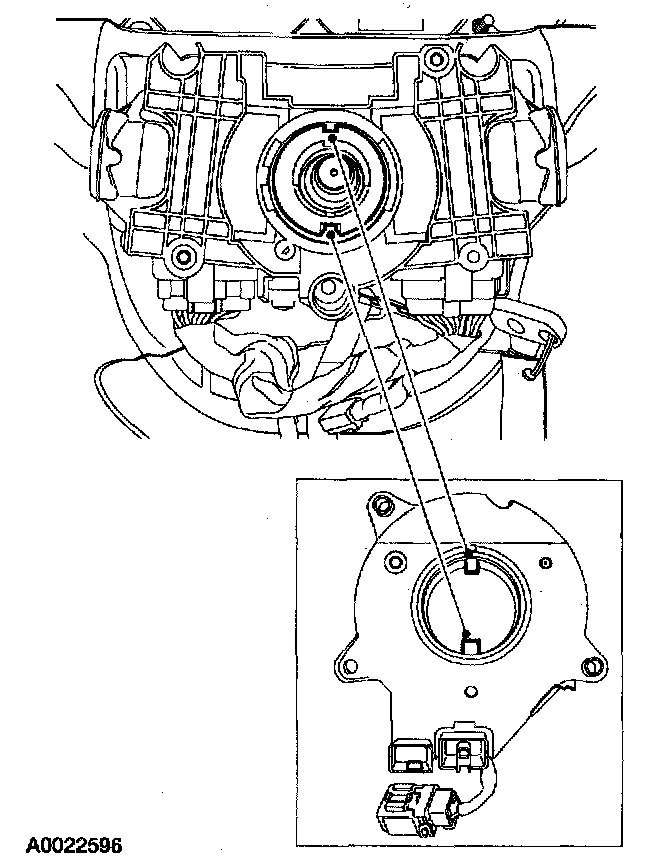

10. Align the clockspring for installation.
^ Align the large slot to the large tab in the clockspring.
^ Align the small slot to the small tab in the clockspring.
NOTE: The clockspring is shown from the back for clarity.
11. Install the clockspring.
1 With the slots and tabs aligned, slide the clockspring over the steering column.
2 With the clockspring sitting flush against the multi-function switch, install the screws.
12. Install the lower steering column shroud.
1 Release the tilt column locking lever, if equipped.
2 Position the lower steering column shroud to the steering column.
NOTE: The steering column must be in the raised position, with the tilt column lever released (if equipped), to install the lower steering column shroud.
3 Install the three screws.
Vehicles with tilt column
13. Position the steering column completely downward.
All vehicles
14. Position the upper steering column shroud to the steering column and completely engage the retaining tabs.
^ Make sure the upper steering column shroud is aligned correctly and the retaining tabs are completely engaged.
15. Install the steering wheel.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE STEERING WHEEL REMOVAL AND INSTALLATION PROCEDURE.
16. With all the restraint system diagnostic tools removed, prove out the air bag system. Prove Out Procedure
WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
