Electronic Brake Control Module: Service and Repair

Module-Anti-Lock Brake Control

Removal and Installation
1. Disconnect the battery negative cable.

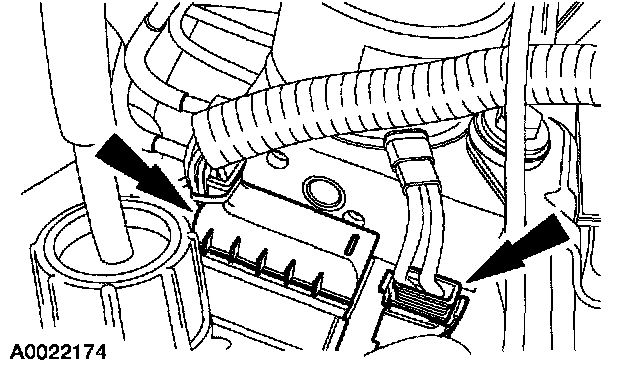

2. Disconnect the electrical connectors.
3. Raise and support the vehicle.

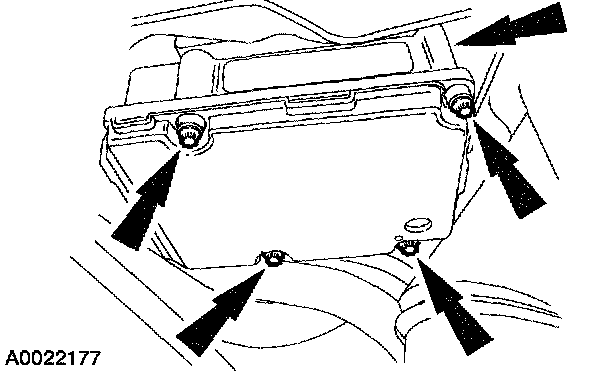

4. Remove the screws and the control module.

5. NOTE: The 4x2 module cannot be interchanged with the 4x4 module. The 4x4 module is interchangeable with the 4x2 module.

To install. reverse the removal procedure.
