Sunroof / Moonroof Module: Service and Repair

ROOF OPENING PANEL MODULE

REMOVAL
1. Remove the headliner.

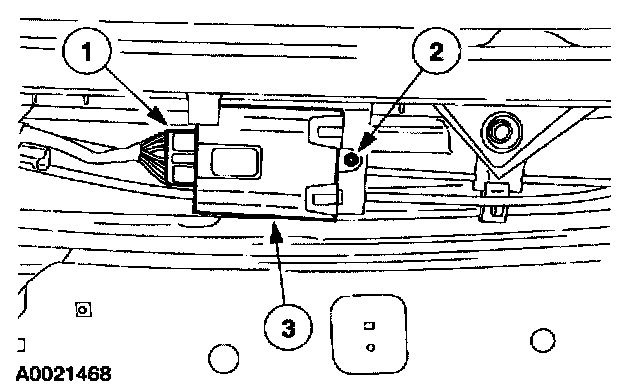

2. Remove the root opening panel module
1 Disconnect the electrical connector.
2 Remove the screw.
3 Remove the roof opening panel module.

INSTALLATION
1. To install, reverse the removal procedure.
