Parking Assist Control Module: Service and Repair

PARKING AID MODULE

REMOVAL
1. Remove the right rear quarter trim panel.

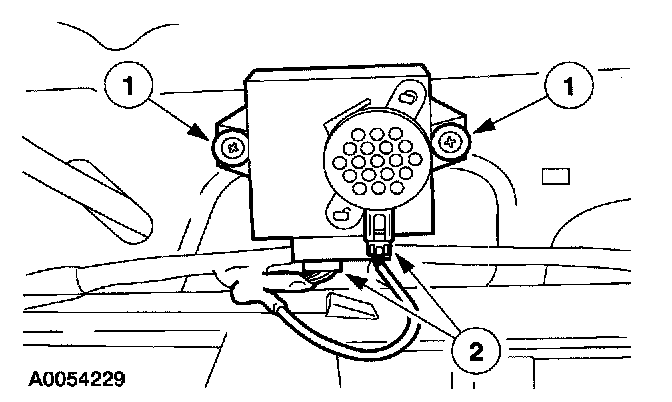

2. Remove the parking aid module.
1 Remove the screws.
2 Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
