General Module: Service and Repair

GENERIC ELECTRONIC MODULE (GEM)

REMOVAL

1. NOTE: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed.

Disconnect the battery ground cable.

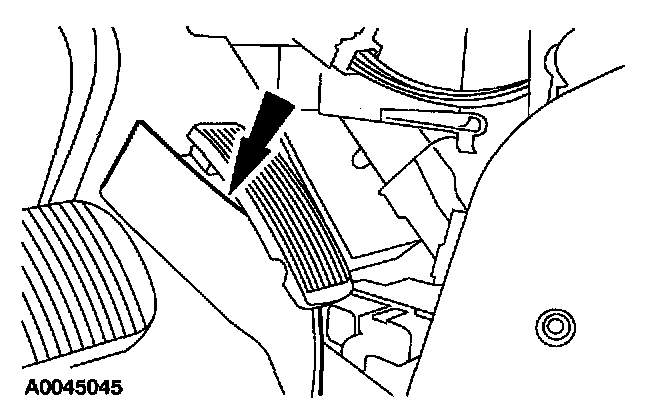

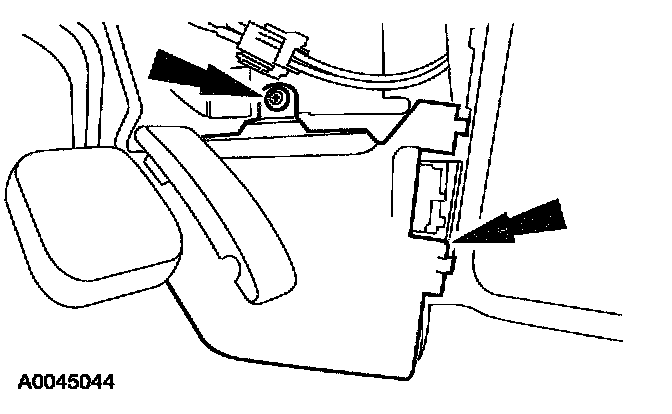

2. Remove the pin-type retainer and the lower shield.







3. Position the RH and LH carpet aside from the center tunnel.

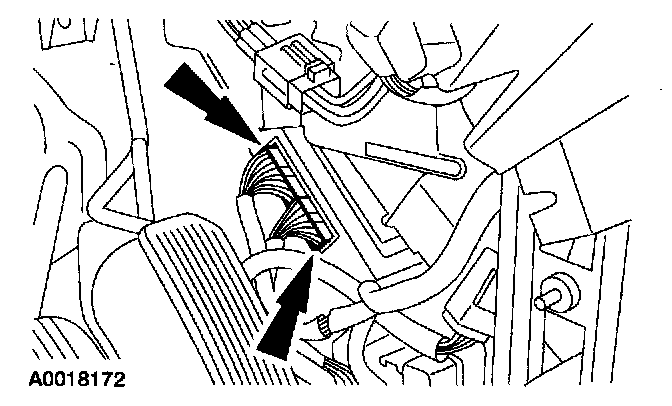

4. Disconnect the GEM electrical connectors.







5. Remove the GEM

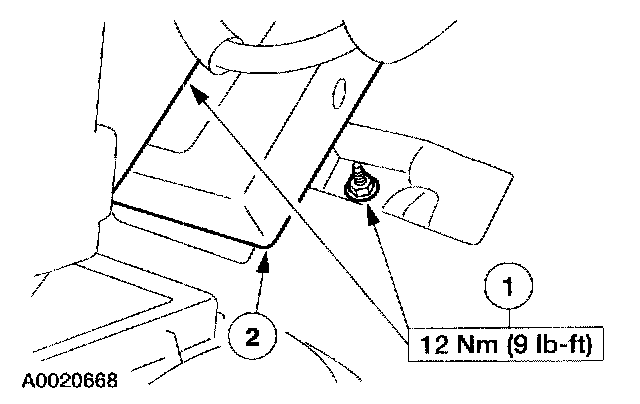

1 Pull back the insulation and remove the nuts.
2 Remove the GEM.

INSTALLATION
1. To install, reverse the removal procedure.
- Configure the GEM. Refer to Module Communications Network (Information Bus).
