Ignition Switch: Service and Repair

Removal and Installation
1. Disconnect the battery ground cable.

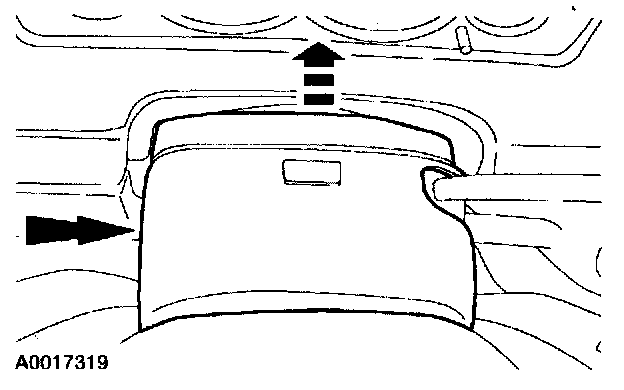

2. Remove the upper steering column shroud.

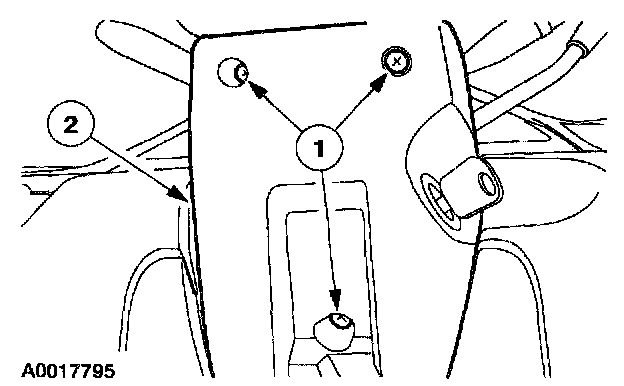

3. Remove the lower steering column shroud.
1 Remove the screws.
2 Remove the lower steering column shroud.

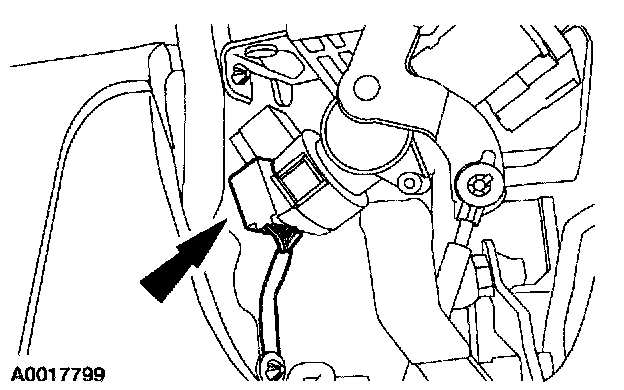

4. Disconnect the ignition switch electrical connector.





5. NOTE: Lower steering column to lowest tilt position.

Remove the ignition switch.
1 Depress the two tabs.
2 Remove the ignition switch.
6. To install, reverse the removal procedure.
