Coil-On-Plug - RH

REMOVAL
1. Remove the upper intake manifold.

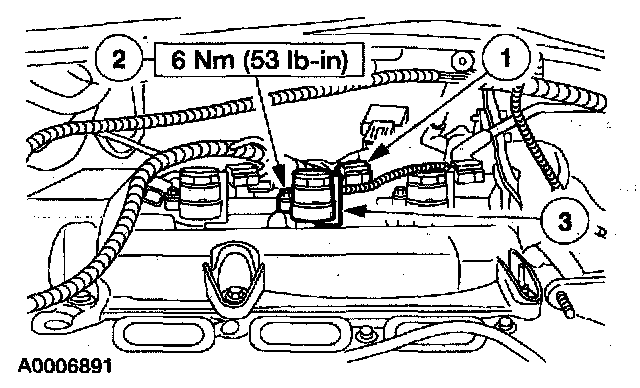

2. Remove the ignition coil-on-plug.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the coil-on-plug.

INSTALLATION
1. To install, reverse the removal procedure.
^ Apply a light film of silicone brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.
