Cable Bracket

REMOVAL







1. Disconnect the crankcase ventilation hose.







2. Remove the bolt, nuts and the engine appearance cover.

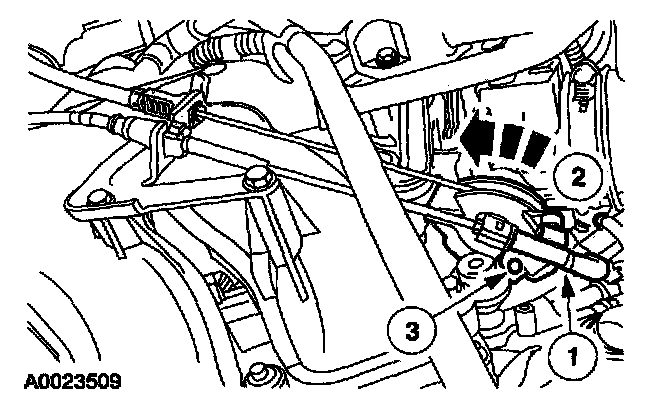

3. Disconnect the throttle control linkage from the throttle lever.
1 If equipped, disconnect the speed control cable from the throttle lever.
2 Rotate the throttle lever.
3 Slide the accelerator cable end out of the throttle lever.

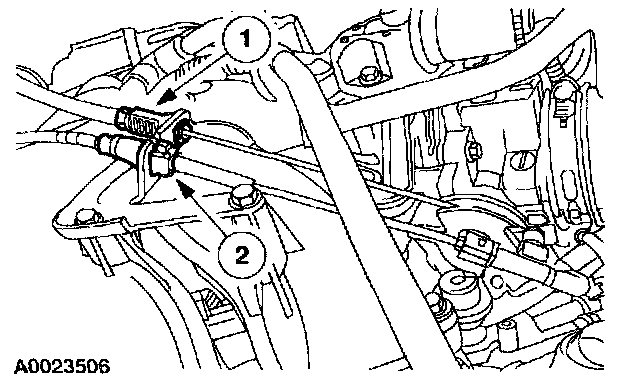

4. Disconnect the throttle control linkage from the accelerator cable bracket.
1 Disconnect the accelerator cable from the bracket.
2 If equipped, squeeze the tabs and disconnect the speed control cable from the accelerator cable bracket.

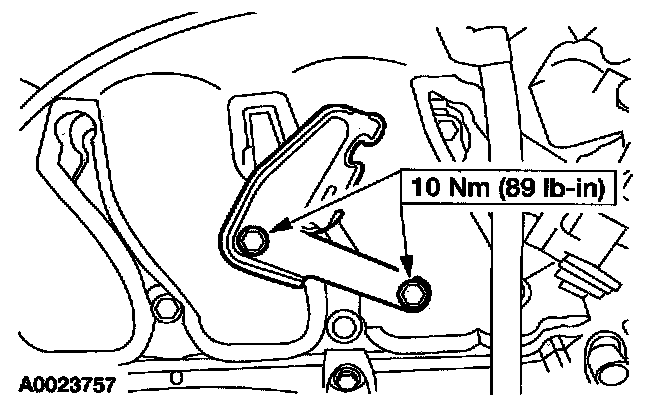

5. Remove the bolts and the accelerator cable bracket.

INSTALLATION
1. To install, reverse the removal procedure.
