Cable

REMOVAL







1. Disconnect the crankcase ventilation hose.

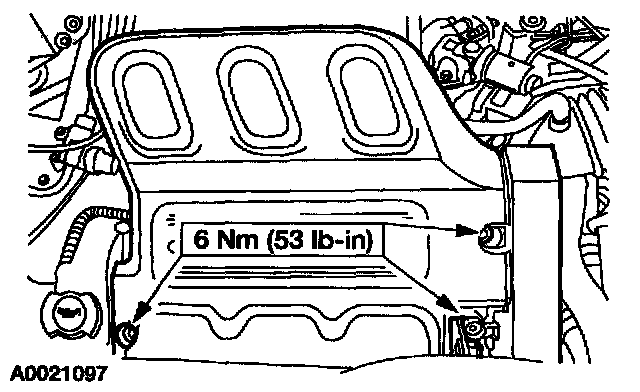

2. Remove the bolt, the nuts and the engine appearance cover.

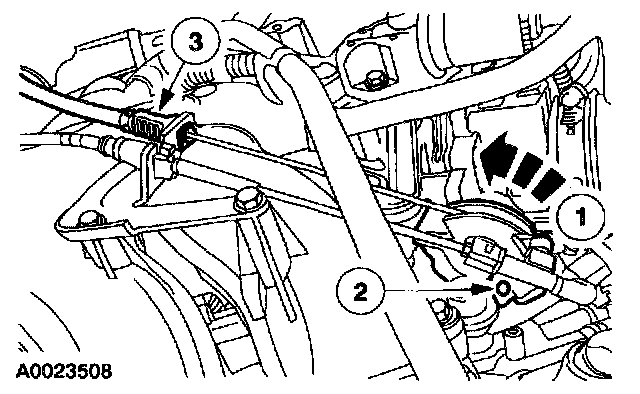

3. Disconnect the accelerator cable from the bracket.
1 Rotate the throttle lever.
2 Slide the accelerator cable end out of the throttle lever.
3 Disconnect the accelerator cable from the bracket.

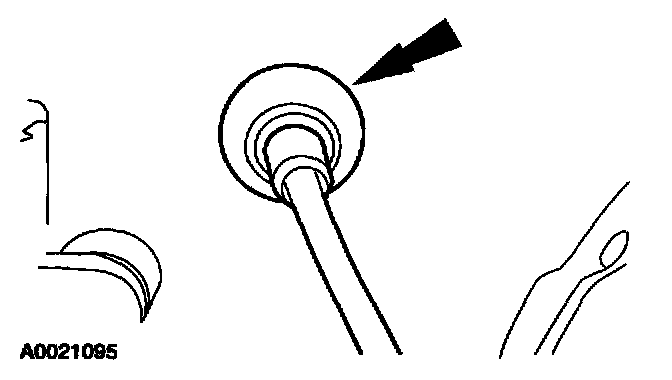

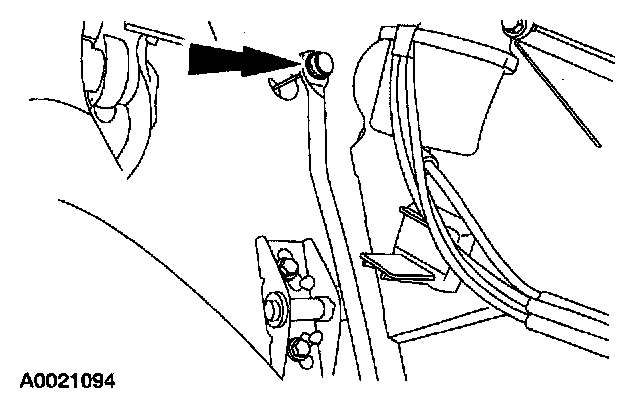

4. Disconnect the accelerator cable from the pedal.







5. Remove the accelerator cable.

CAUTION: Do not pull the accelerator cable out by the cable housing.

INSTALLATION
1. To install, reverse the removal procedure.
