Fuel Tank Removal and Installation

Heavy - Duty Riveter:

SPECIAL TOOL(S)

REMOVAL

WARNING: DO NOT SMOKE OR CARRY AN OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL-RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED, RESULTING IN POSSIBLE PERSONAL INJURY.

1. Drain the fuel tank.
2. Remove the left rear wheel.

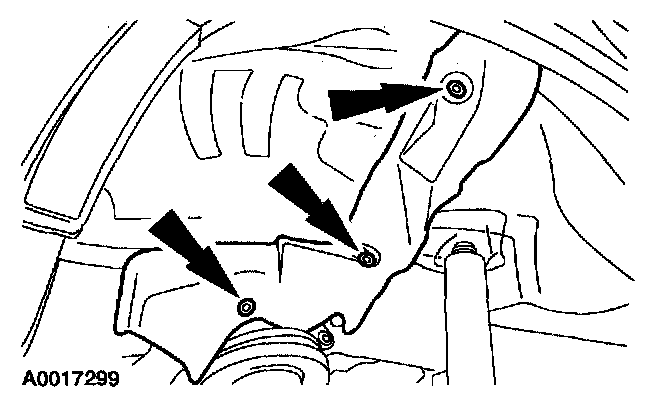

3. Remove the rivets and the fuel tank filler tube shield.

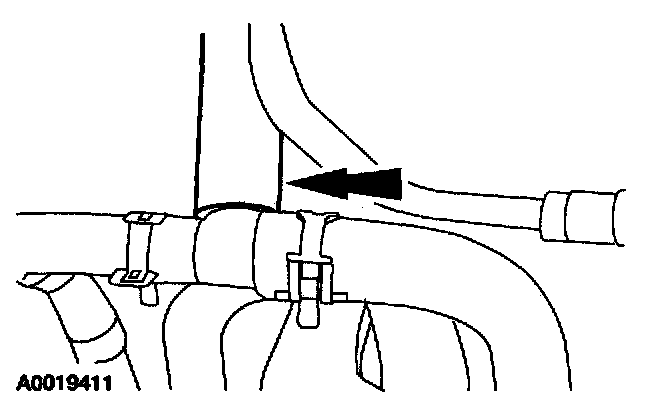

4. Disconnect the fuel tank filler hose and the fuel tank filler vent hose from the fuel filler tube.
5. Remove the muffler and the catalytic converter.

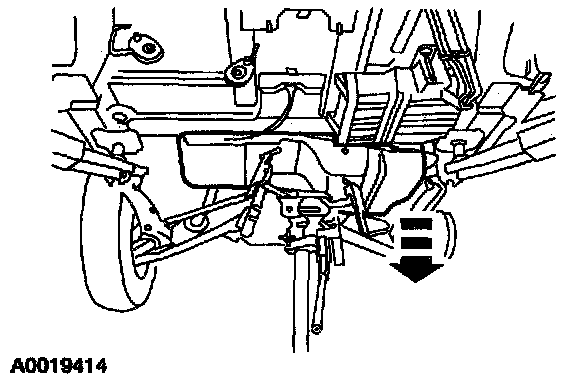

6. Use a suitable jack to support the fuel tank.







7. Disconnect the vapor hose.

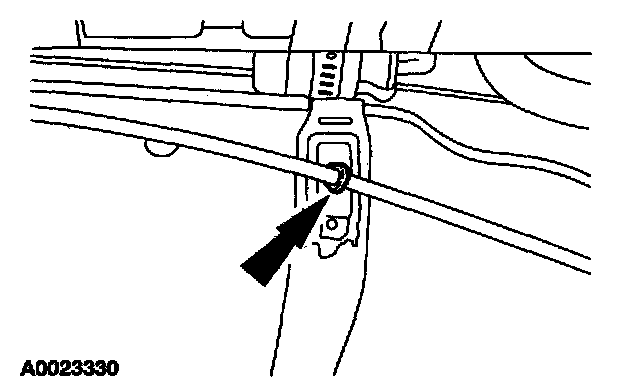

8. Disconnect the pin-type retainer from the fuel tank strap and position the parking brake cable aside.

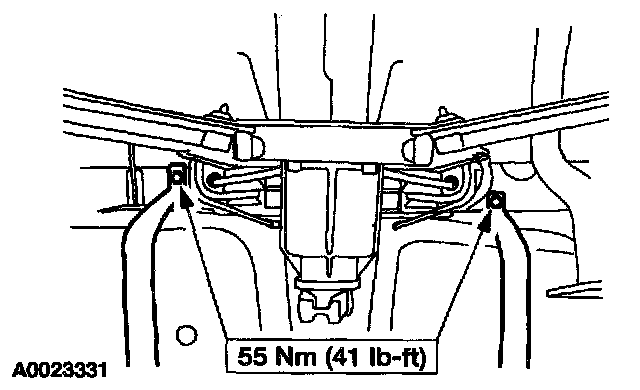

9. Remove the bolts and the fuel tank straps.







10. Lower and remove the fuel tank.


INSTALLATION
1. To install, reverse the removal procedure.
^ Use the Heavy-Duty Riveter to install the rivets.
