Fuel Filler Hose: Service and Repair

Heavy - Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the left rear wheel.

WARNING: DO NOT SMOKE OR CARRY LIGHTED TOBACCO OR OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL-RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED, RESULTING IN POSSIBLE PERSONAL INJURY.







2. Remove the gas cap.

WARNING: THE FUEL TANK MAY BE PRESSURIZED. REMOVE THE FUEL TANK FILLER CAP SLOWLY. IF A HISSING SOUND IS HEARD, WAIT UNTIL THE CONDITION STOPS BEFORE REMOVING THE FUEL TANK FILLER CAP. IF THESE PRECAUTIONS ARE NOT FOLLOWED, FUEL MAY SPRAY AND CAUSE PERSONAL INJURY.







3. Remove the filler neck retaining screws.







4. Remove the rivets and the fuel tank filler tube shield.







5. Remove the fuel filler tube.

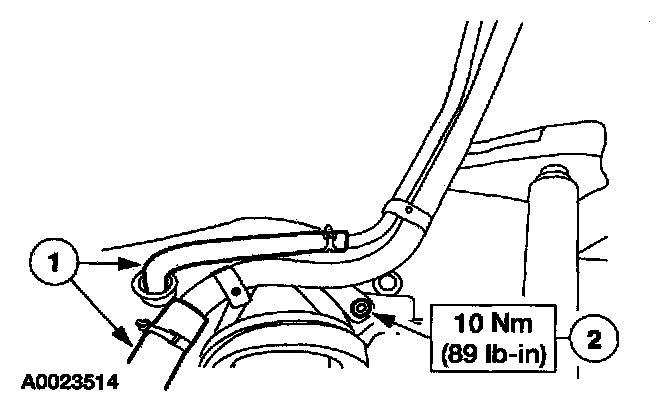

1 Disconnect the hoses.
2 Remove the bolt and the fuel filler tube.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use the Heavy-Duty Riveter to install the rivets.
