Fuel Pressure Pulsation Damper: Service and Repair

REMOVAL
1. Remove the throttle body.







2. Remove the fuel pulse damper.
1 Disconnect the vacuum hose.
2 Remove the snap ring.
3 Remove the damper.

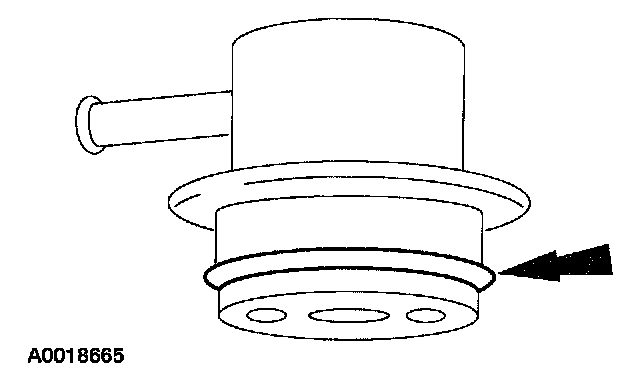

3. Remove and discard the O-ring seal.


INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Use an O-ring seal that is made of special fuel resistant material. Use of an ordinary O-ring seal can cause the fuel system to leak. Do not reuse the O-ring seal.

NOTE: Lubricate the O-ring seal with clean engine oil.
