Accelerator Pedal and Shaft

REMOVAL







1. Disconnect the crankcase ventilation hose.







2. Remove the bolt, the nuts and the engine appearance cover.

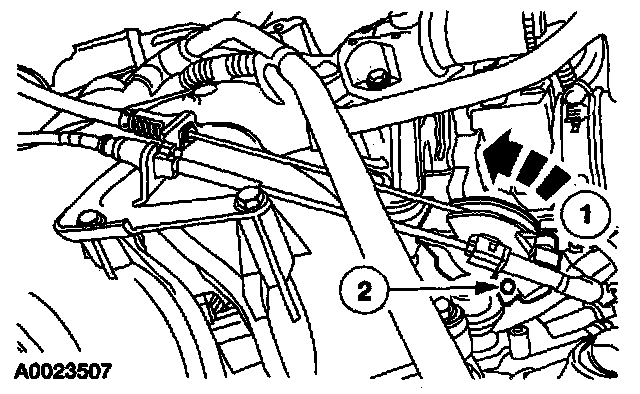

3. Disconnect the accelerator cable from the throttle lever.
1 Rotate the throttle lever.
2 Slide the accelerator cable end out of the throttle lever.

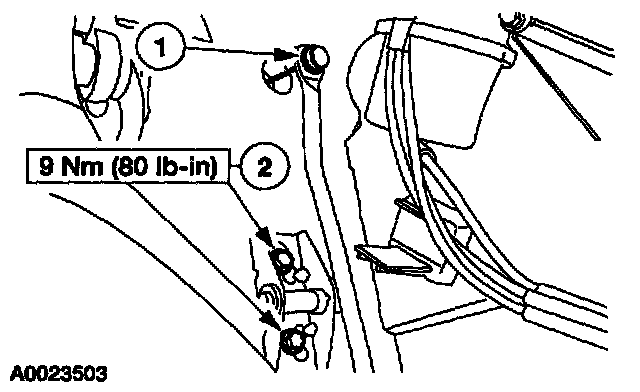

4. Remove the accelerator pedal and shaft assembly.
1 Disconnect the accelerator cable.
2 Remove the bolts.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: To ease installation, remove the grommet from the throttle lever and install it onto the accelerator cable end.
