EGR Tube: Service and Repair

REMOVAL

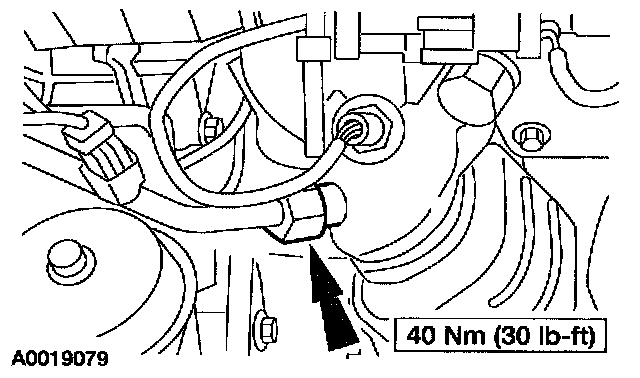

1. Disconnect the EGR tube nut at the manifold connector.







2. Carefully remove the differential pressure feedback EGR sensor from the EGR tube.

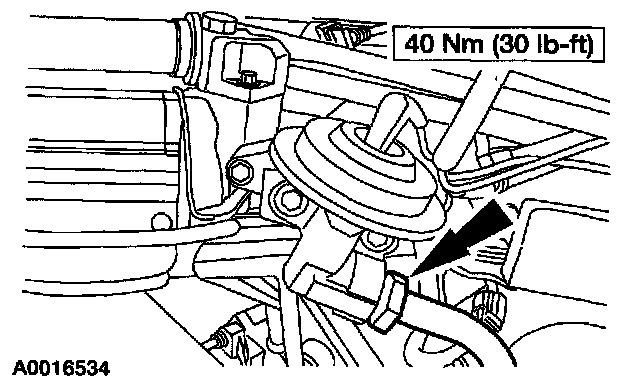

3. Disconnect the EGR tube fitting and remove the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
