EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

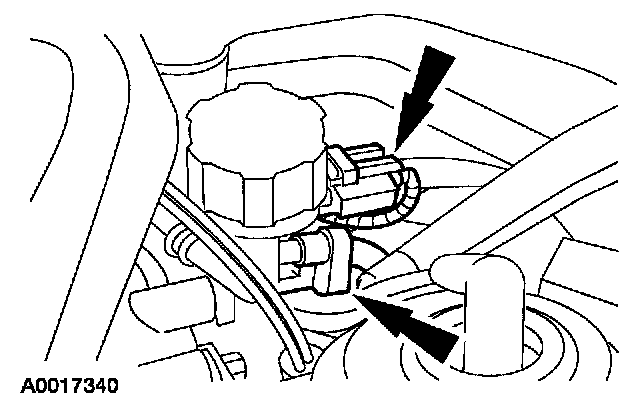

2. Disconnect the EGR vacuum regulator valve.
^ Disconnect the electrical connector.
^ Disconnect the vacuum hoses.

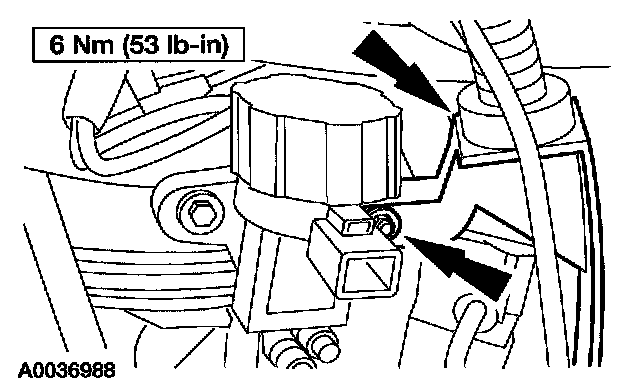

3. Remove the PCM wiring harness bracket.
^ Remove the nut.
^ Position the bracket aside.

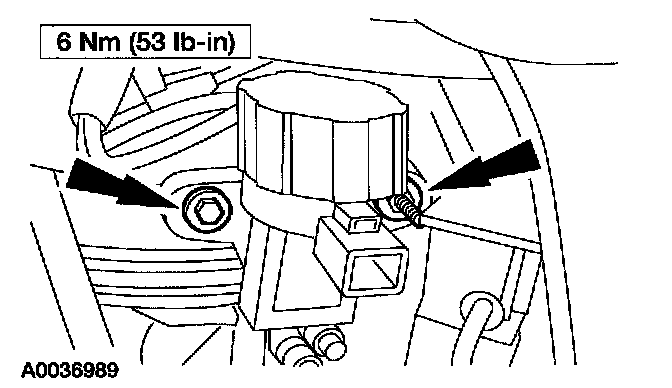

4. Remove the bolts and remove the EGR vacuum regulator valve.

INSTALLATION
1. To install, reverse the removal procedure.
