Test D: Hiss When Opening Fuel Cap
Test D: Hiss When Opening Fuel Cap
PINPOINT TEST D: HISS WHEN OPENING FUEL CAP

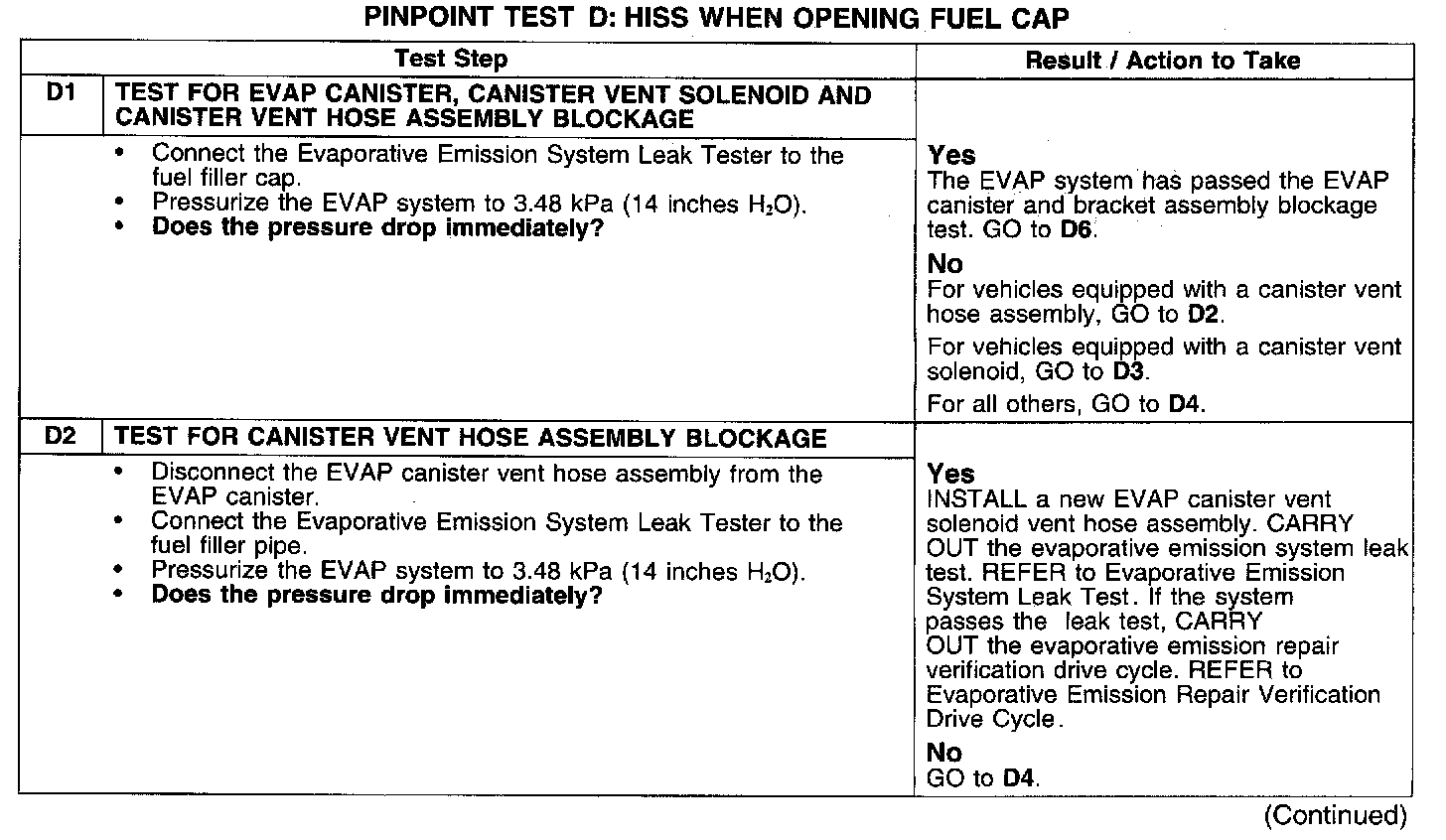

Test D1-D2:

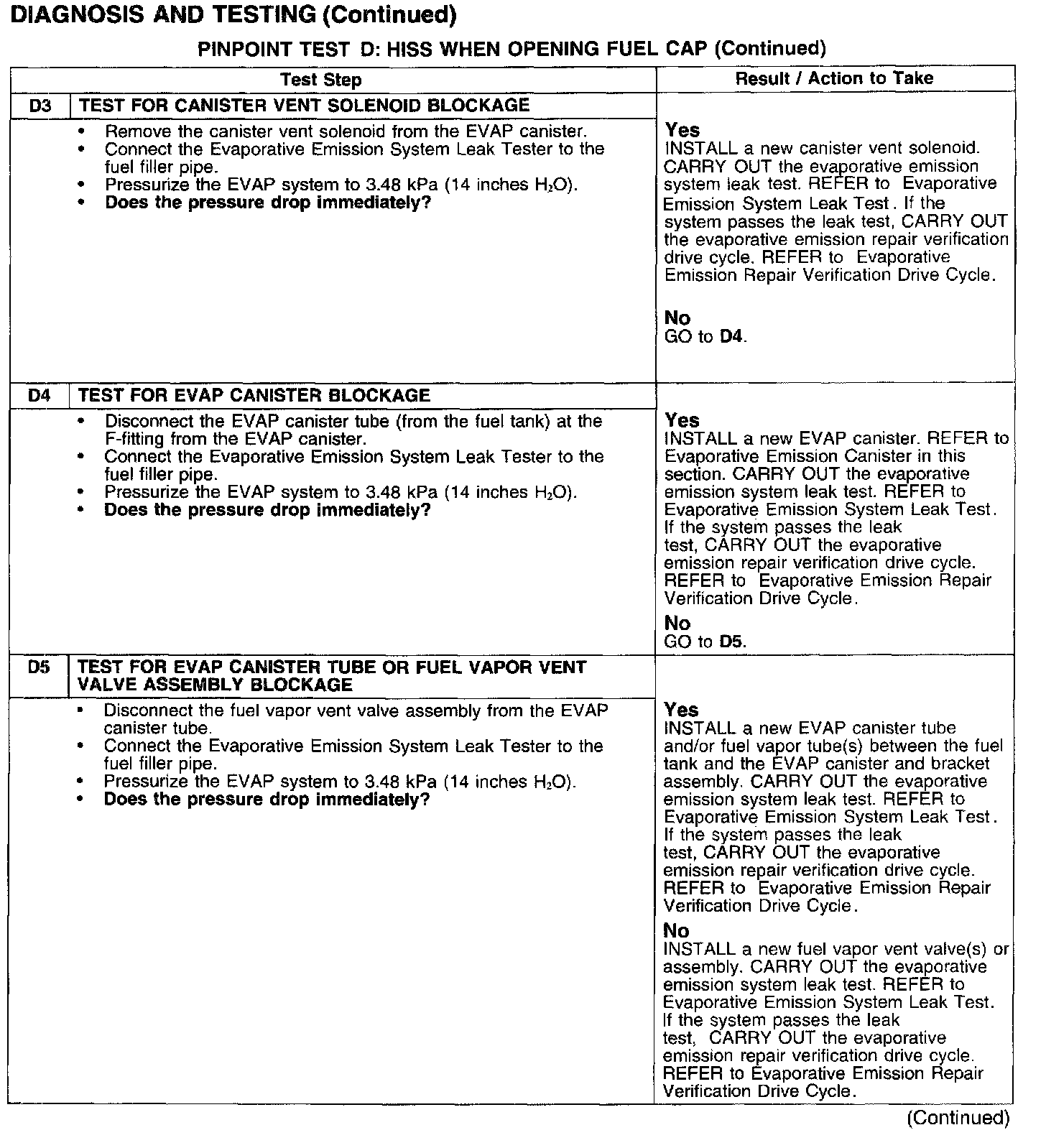

Test D3-D5:

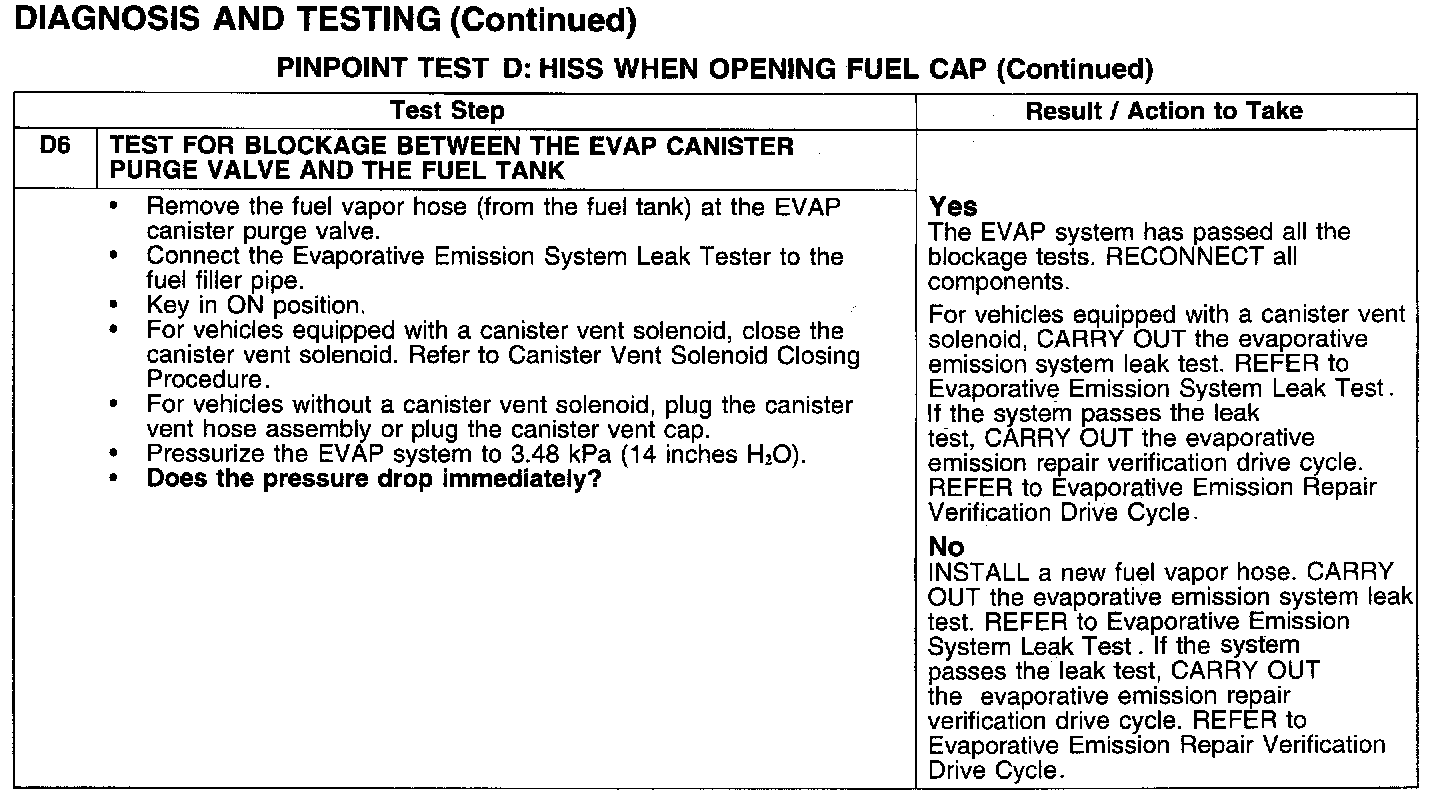

Test D6:
