Test B: DTC P0455/P1443 No Flow Detected In System
Test B: DTC P0455/P1443 No Flow Detected In System
PINPOINT TEST B: DTC P0455 MAJOR LEAK OR NO FLOW DETECTED OR DTC P1443 VERY SMALL OR NO PURGE FLOW DETECTED IN SYSTEM

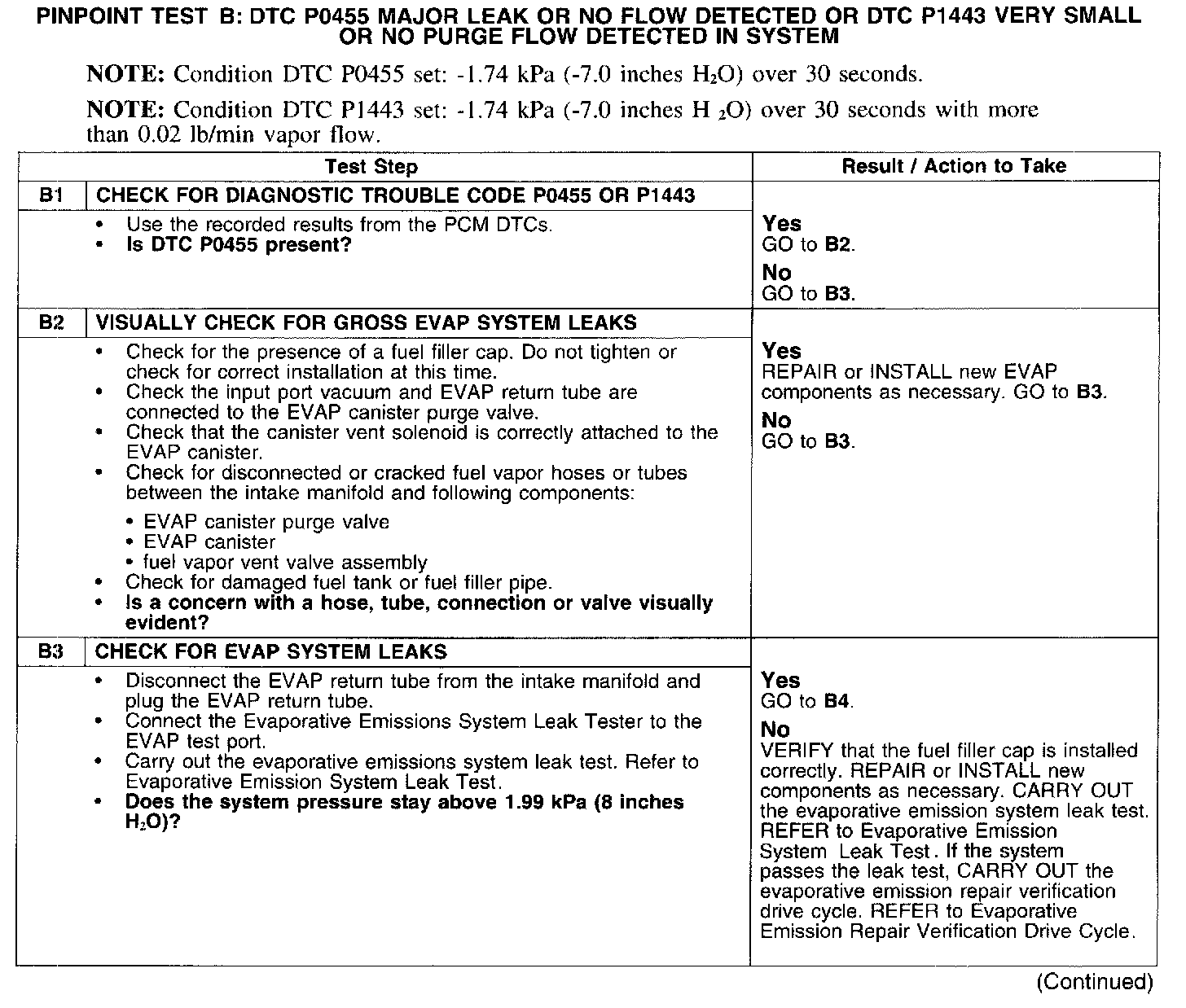

Test B1-B3:

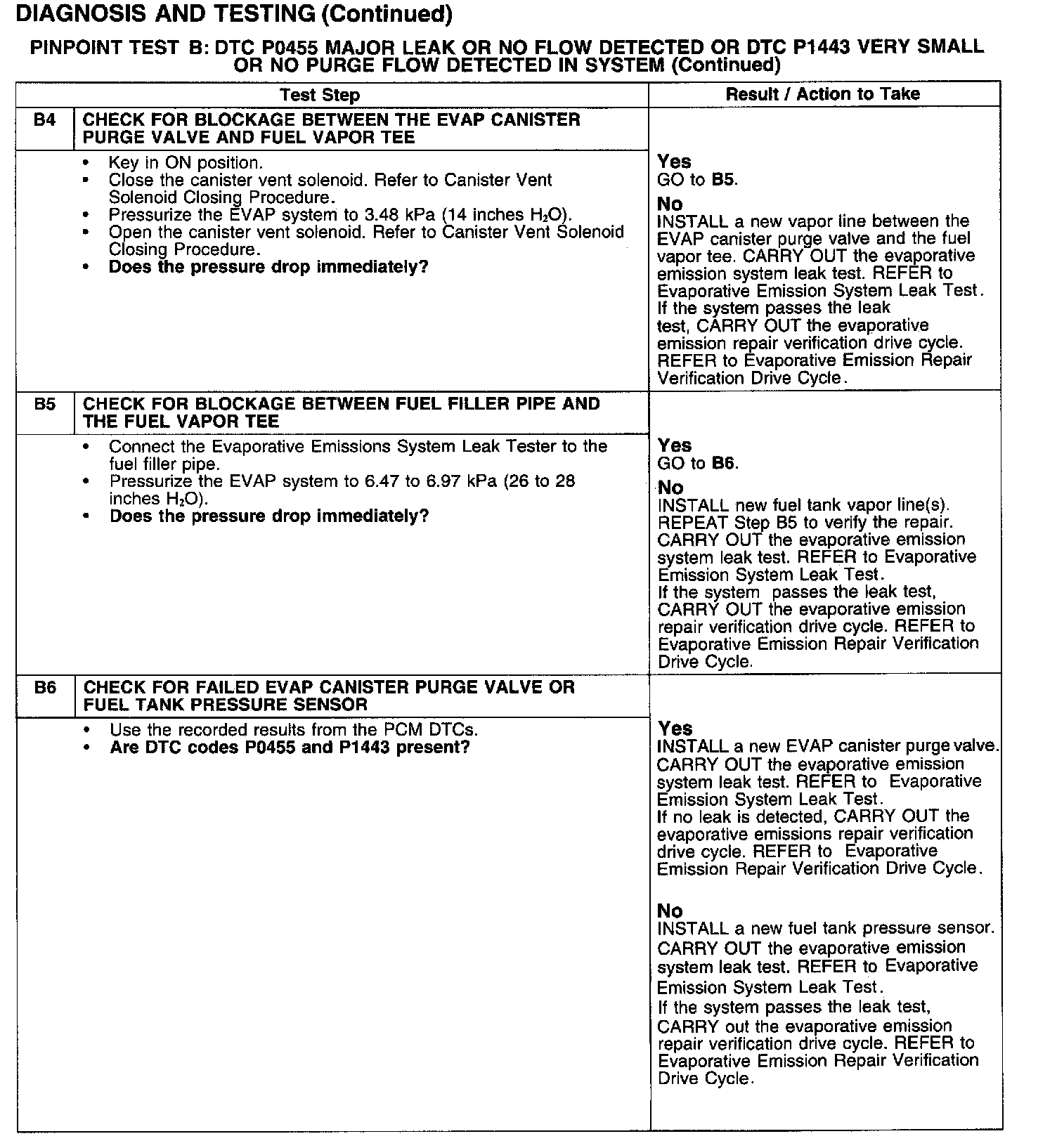

Test B4-B6:
