Tests KD: Electric Exhaust Gas Recirculation (EEGR) System
Tests KD: Electric Exhaust Gas Recirculation (EEGR) System

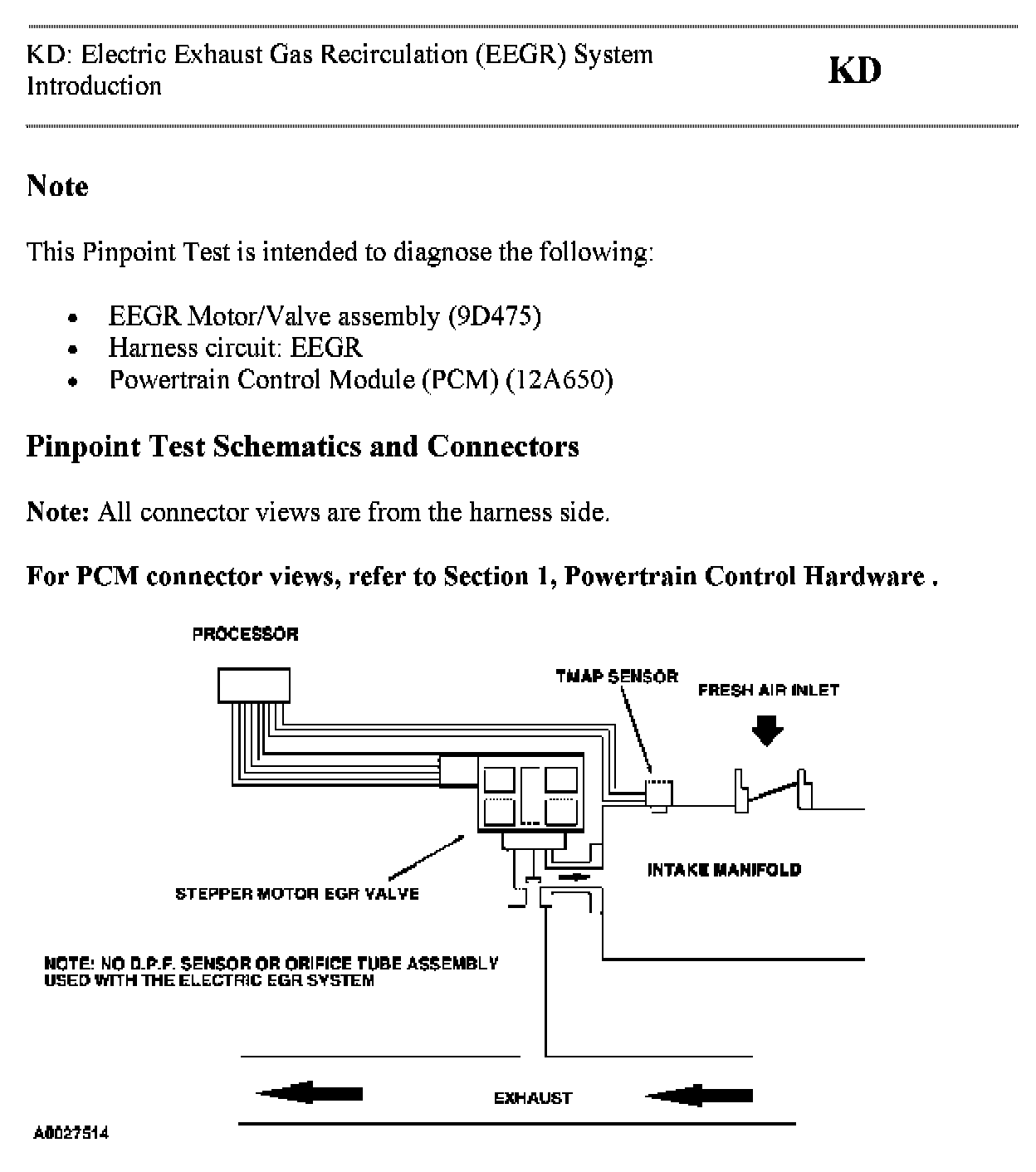

KD INTRODUCTION 1 OF 2:

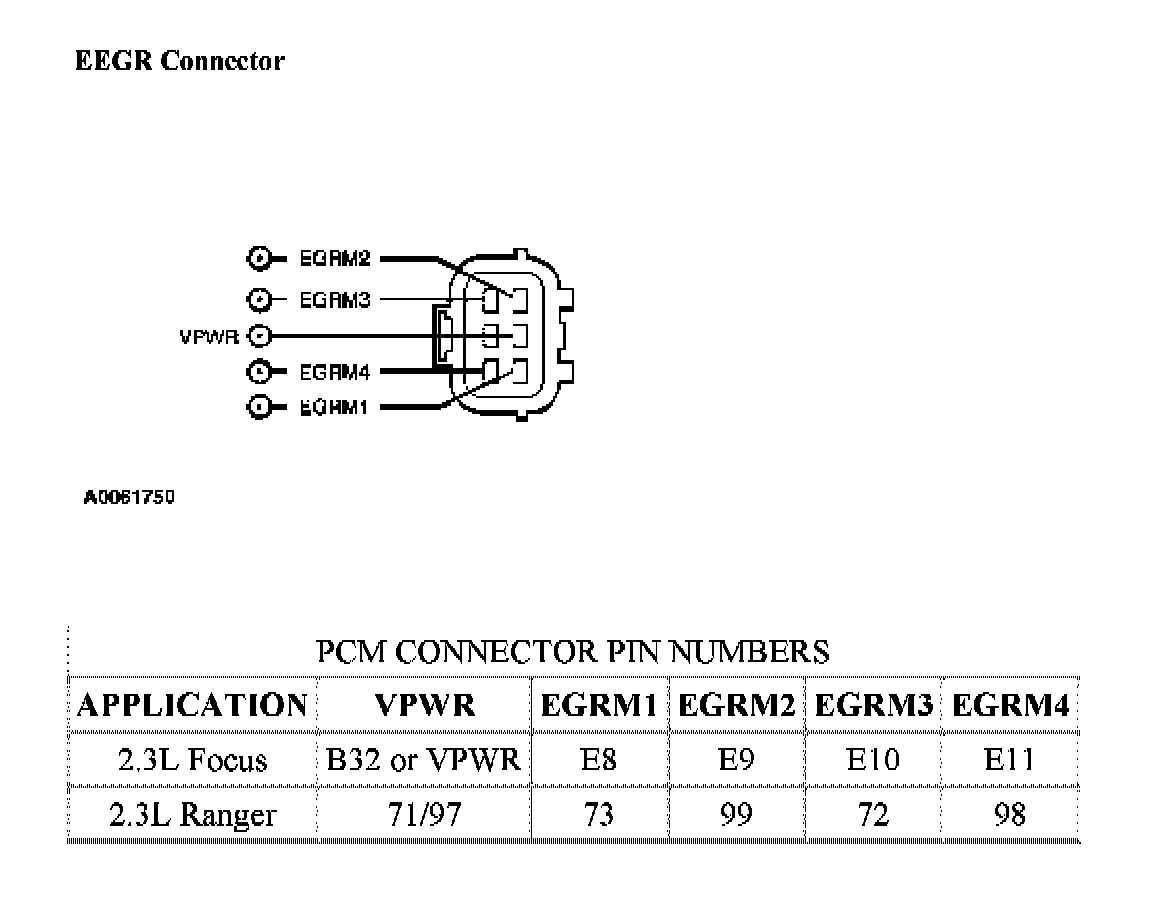

KD INTRODUCTION 2 OF 2:

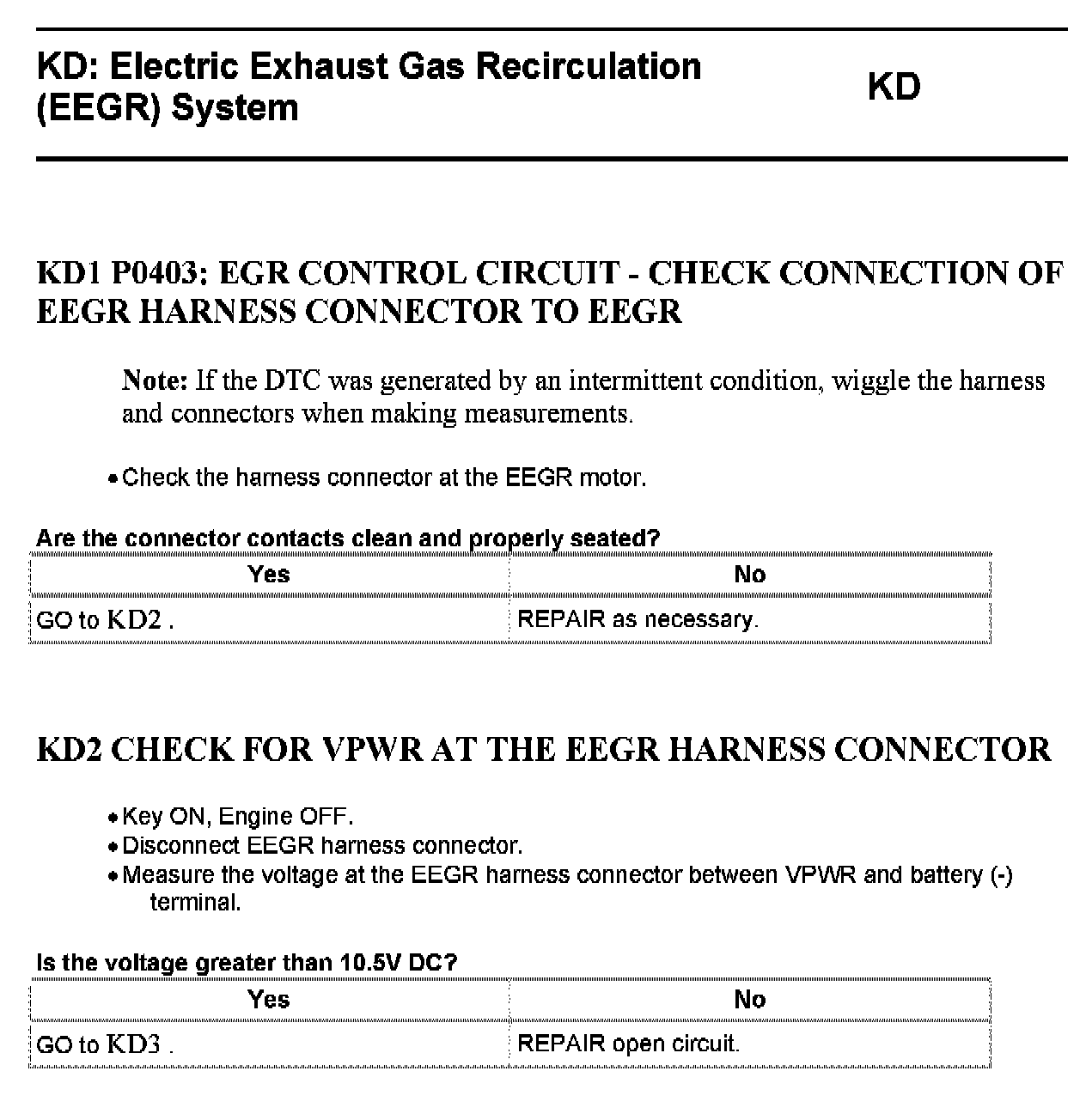

KD1 - KD2:

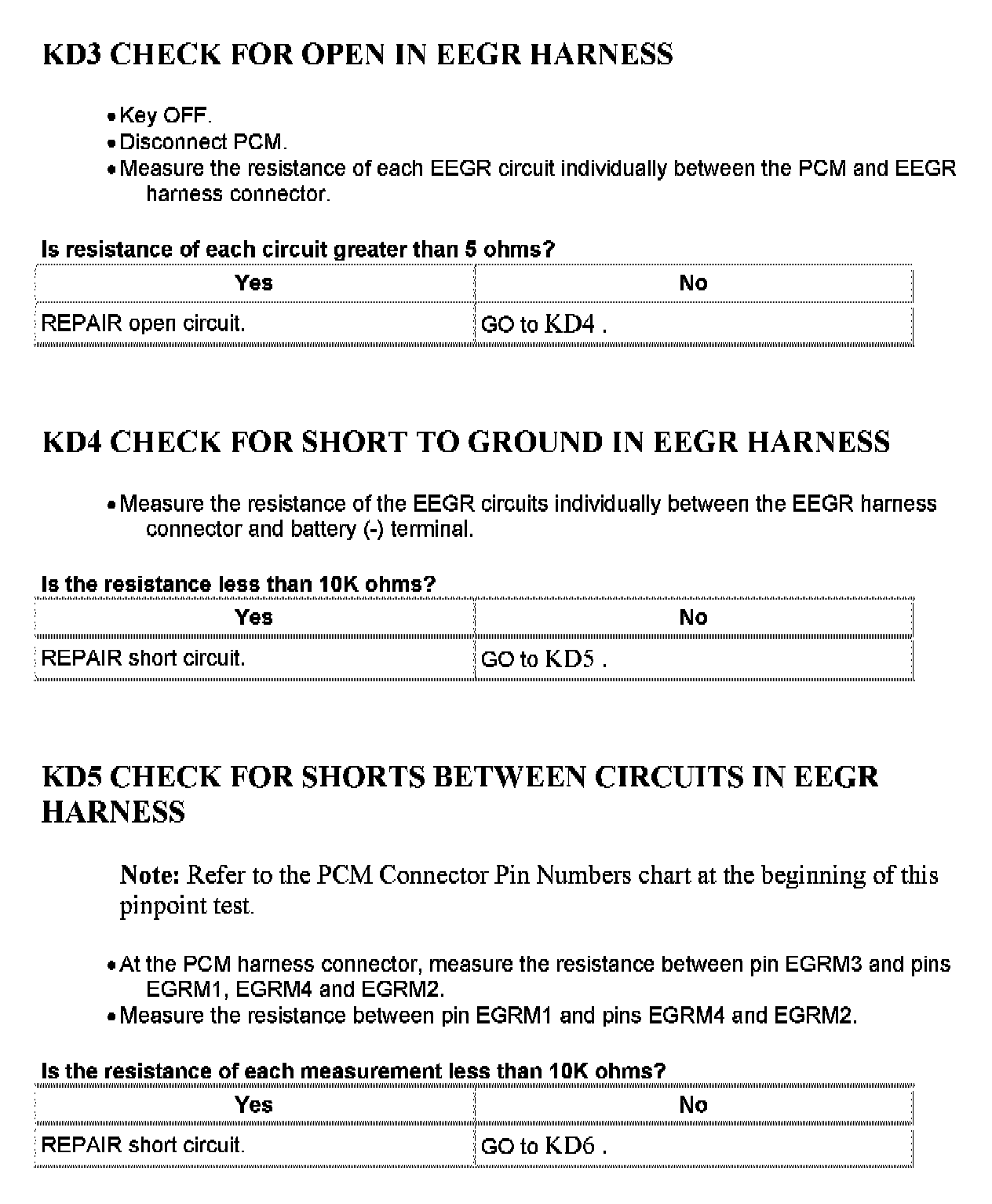

KD3 - KD5:

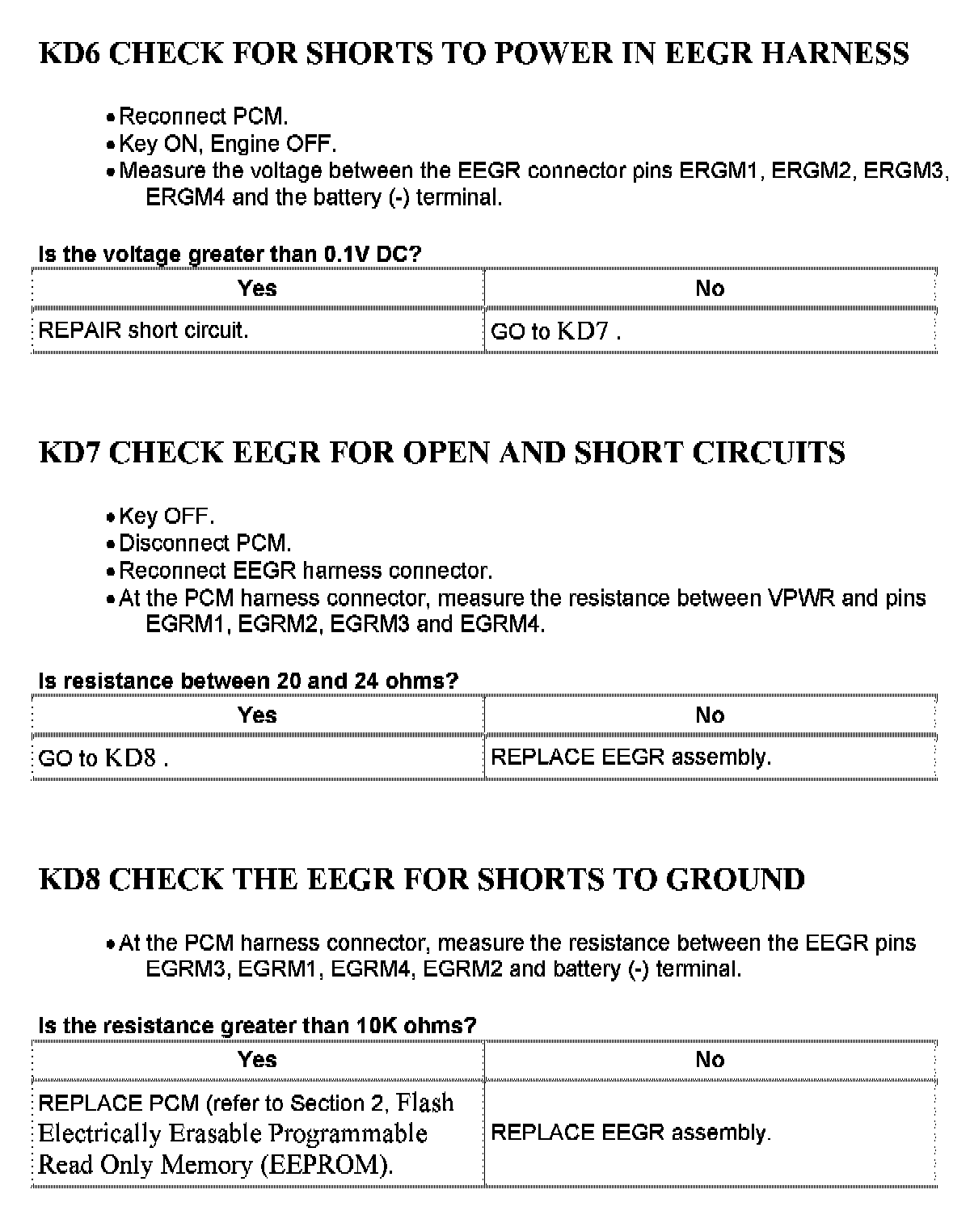

KD6 - KD8:

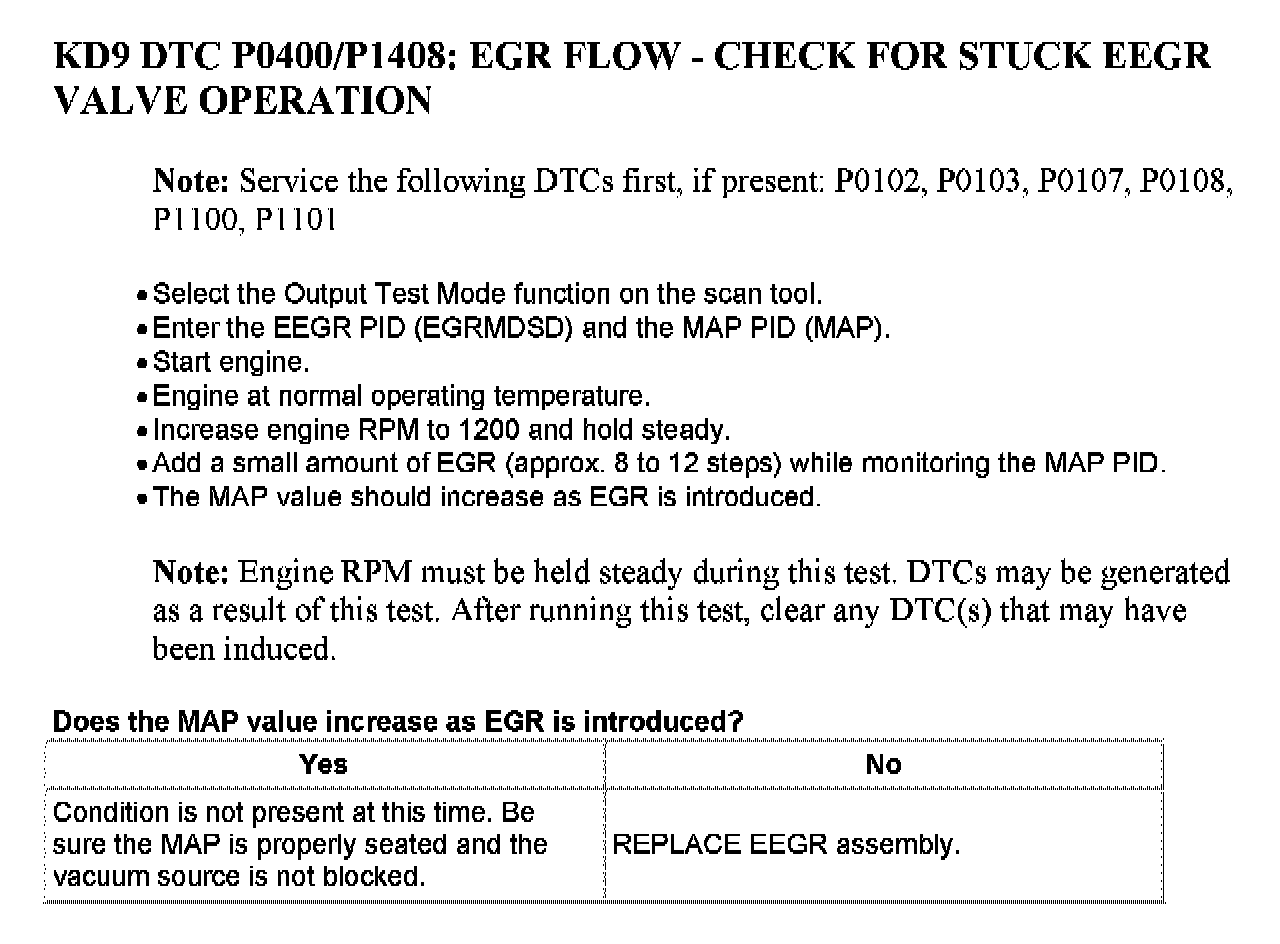

KD9:
