Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: No Start

Test A: No Start

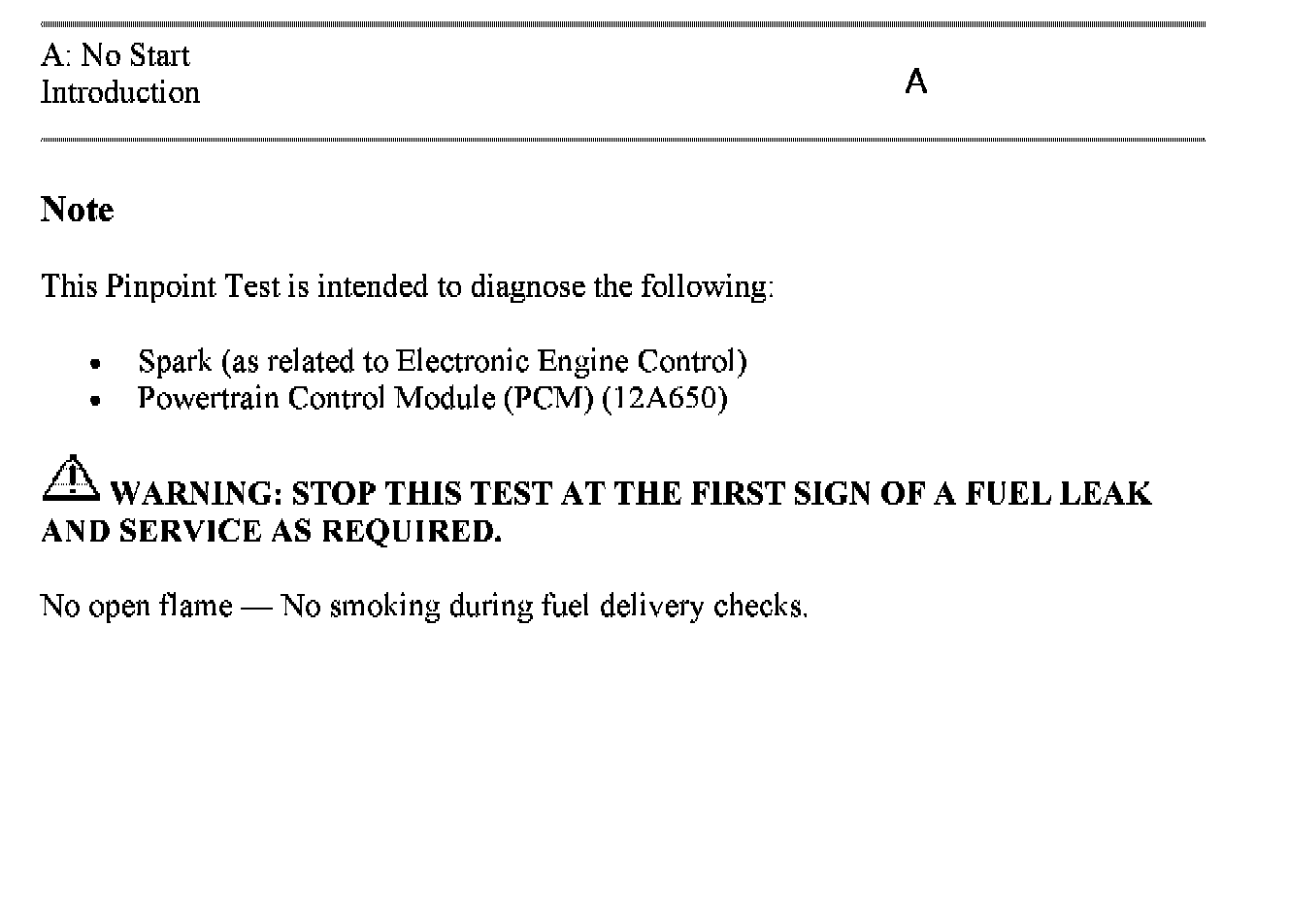

A : Introduction:

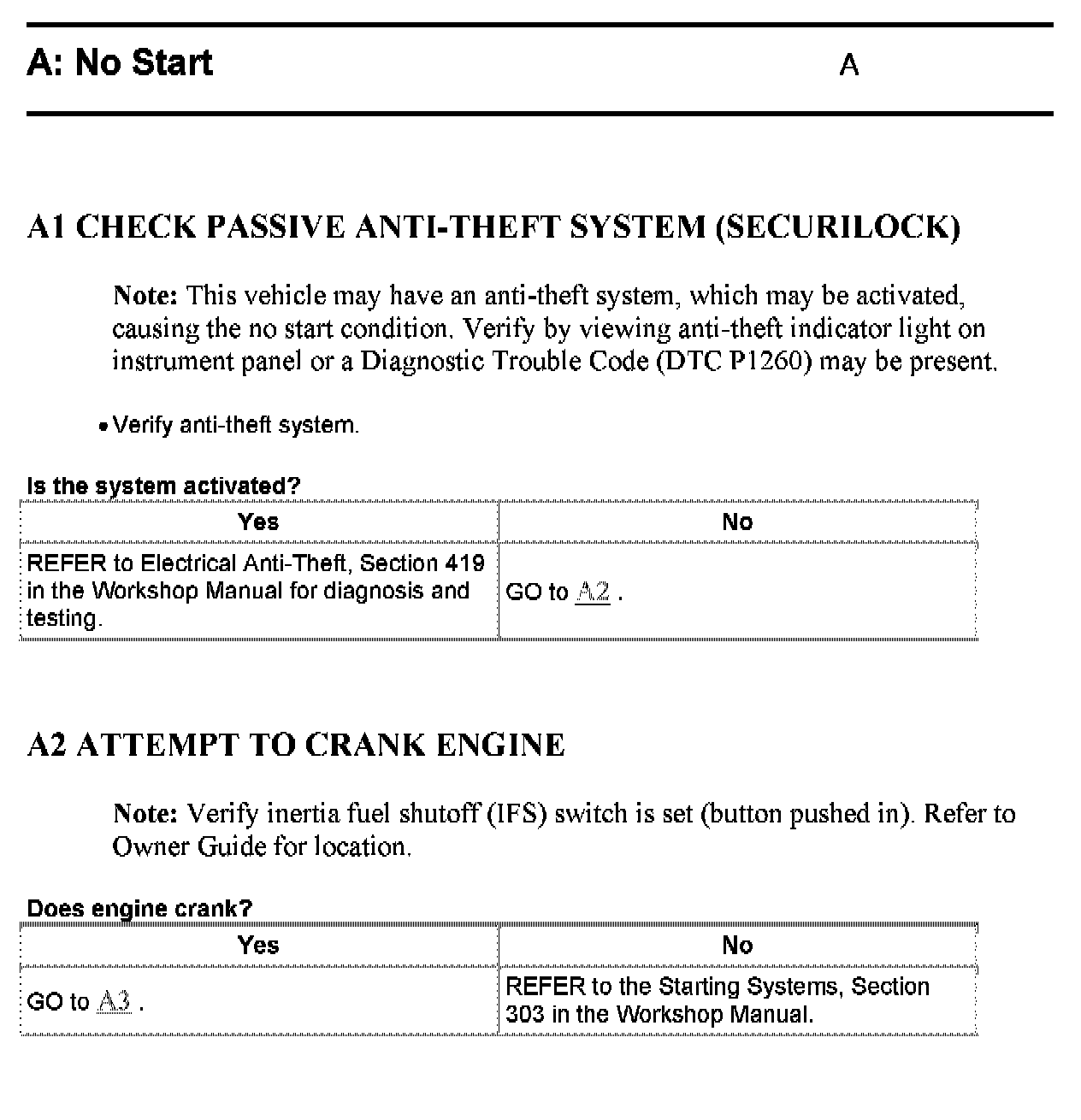

A1 - A2:

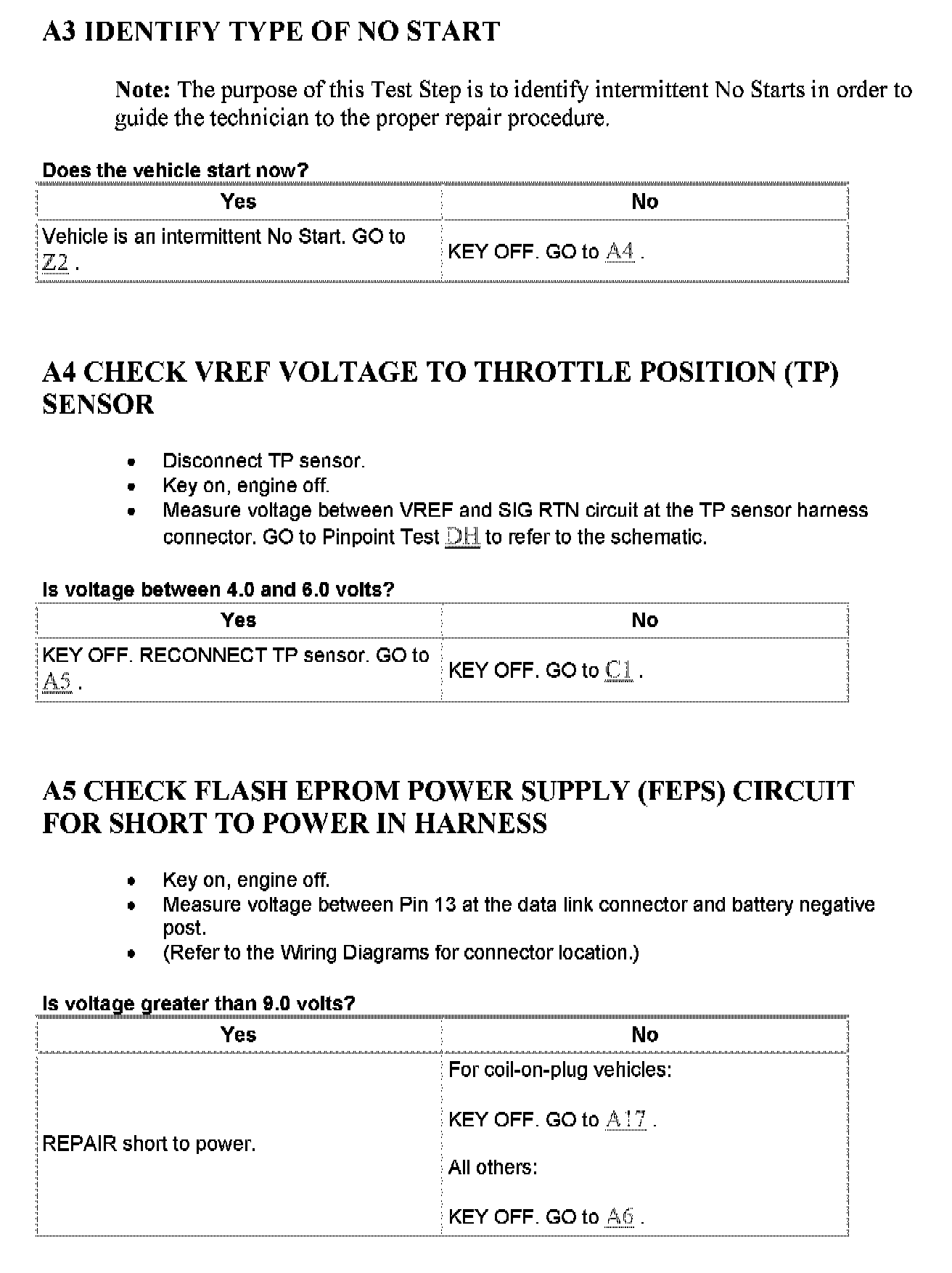

A3 - A5:

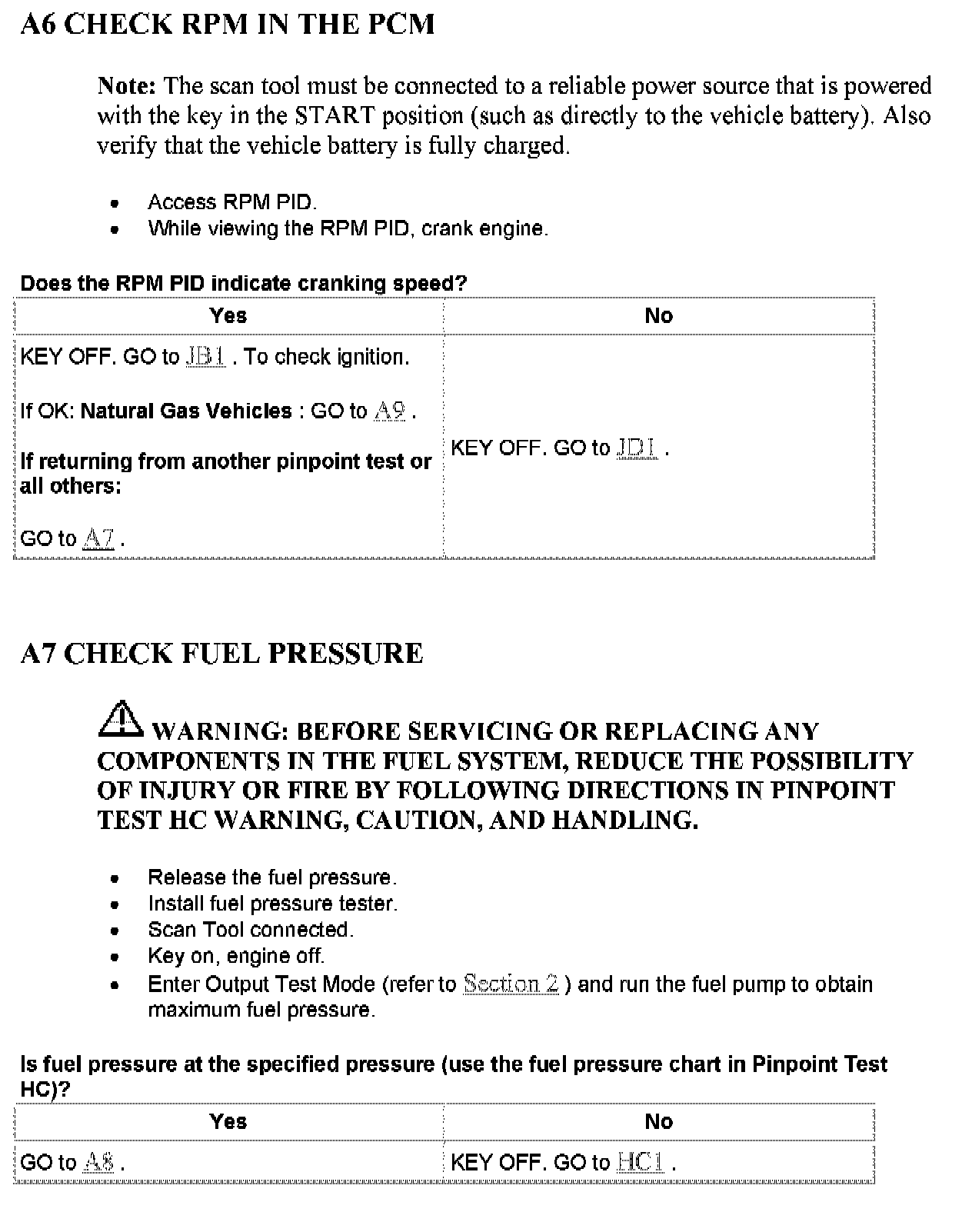

A6 - A7:

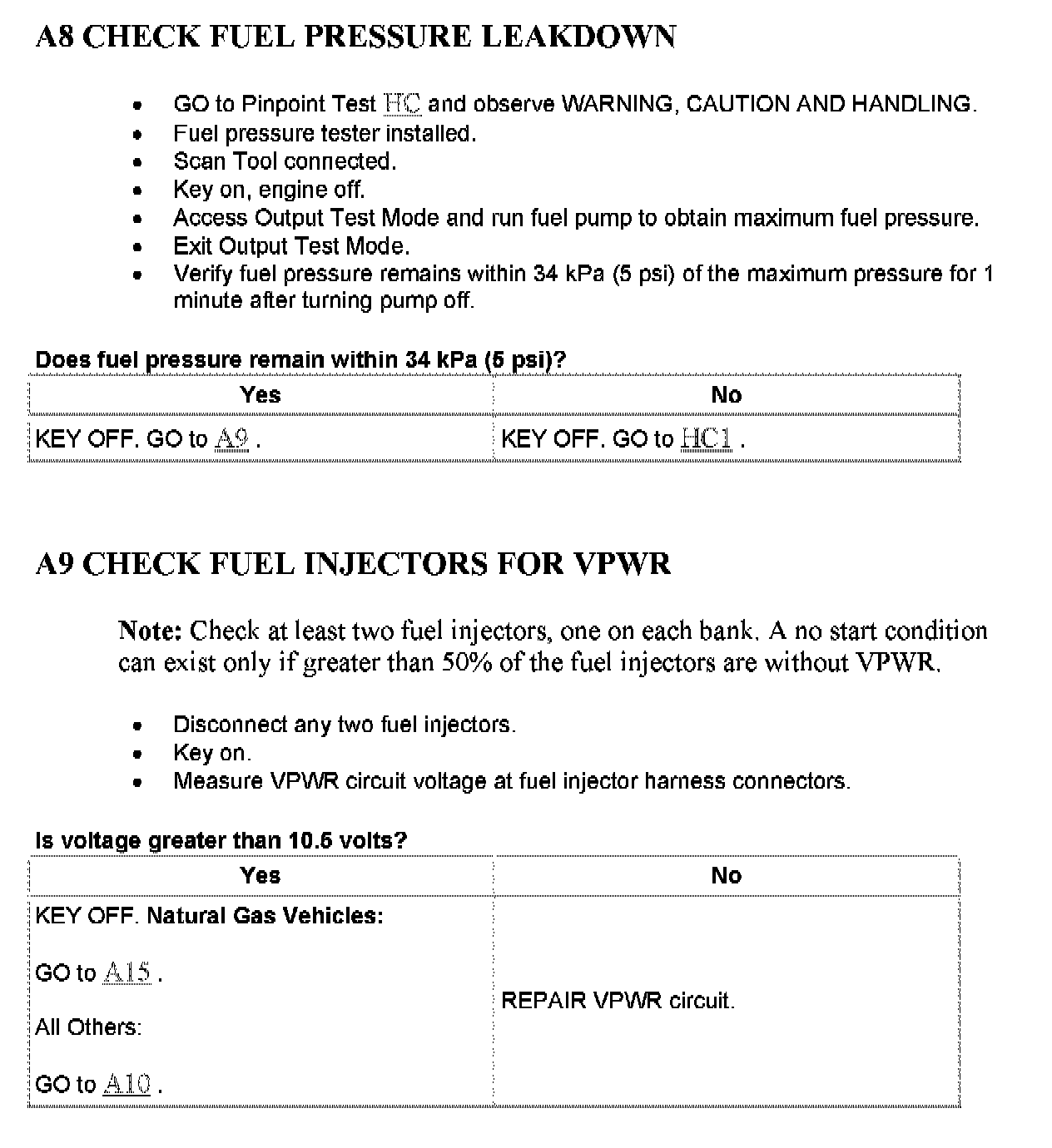

A8 - A9:

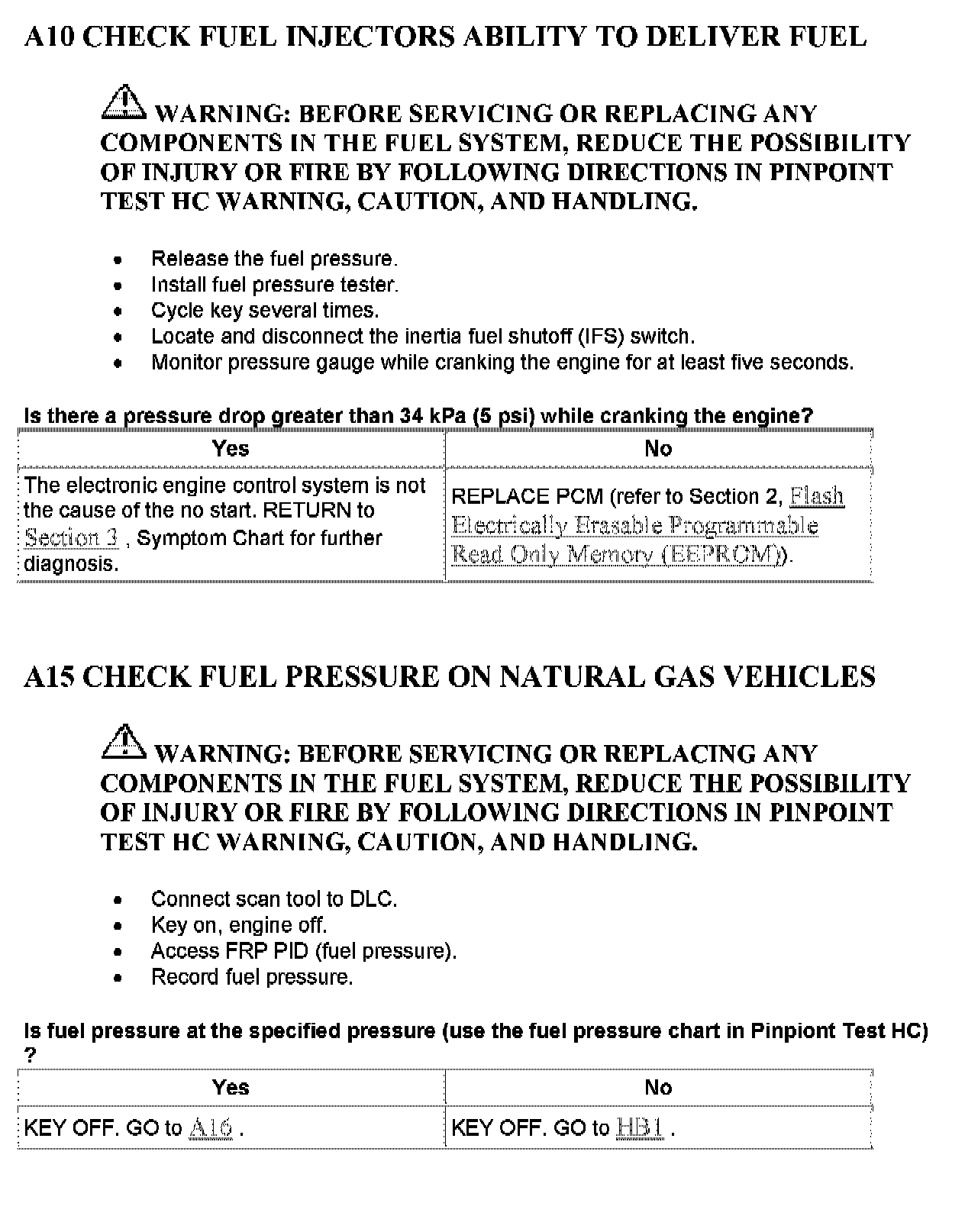

A10 - A15:

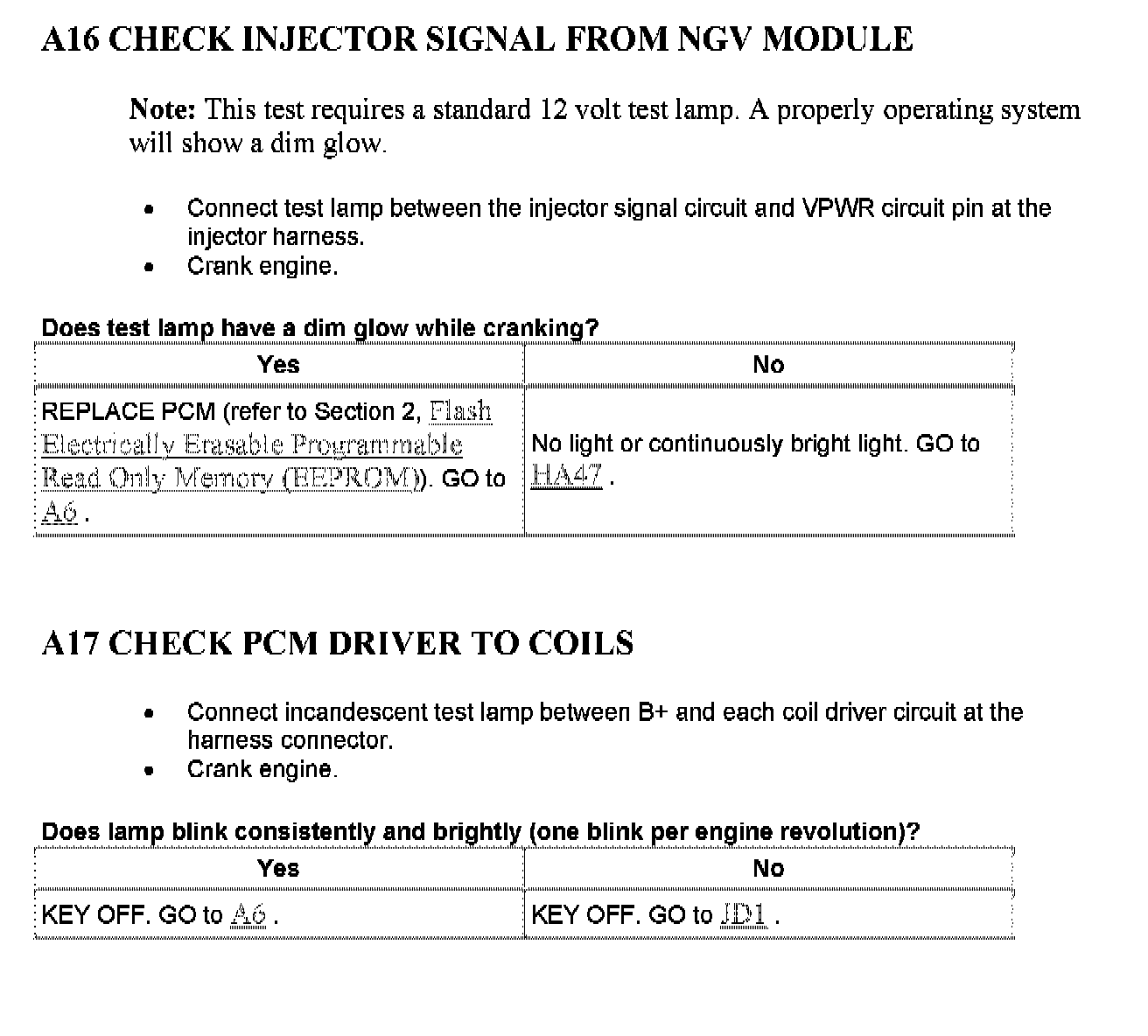

A16 - A17:
