Scan Tool Message Index

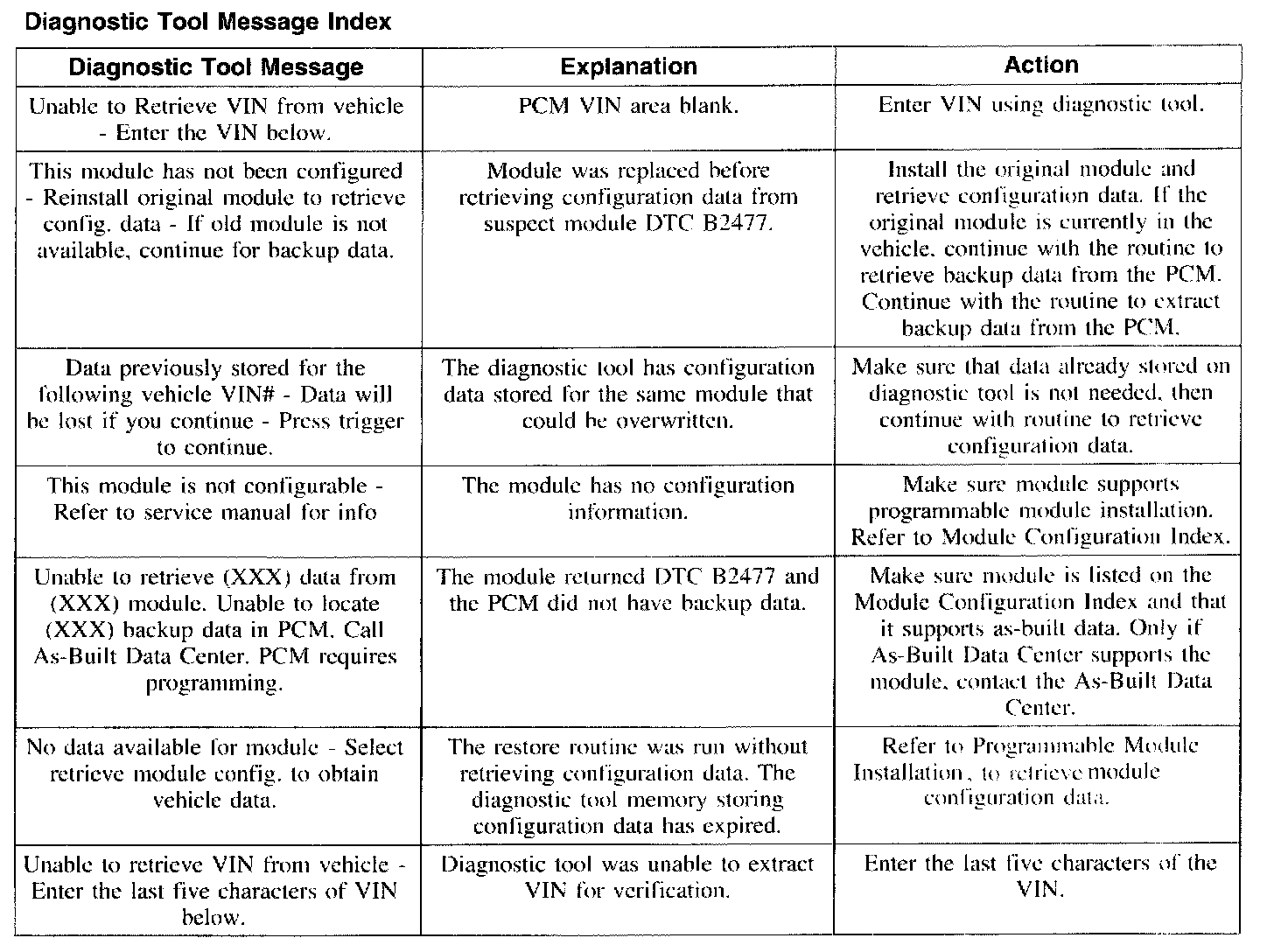

Diagnostic Tool Message Index, Part 1:

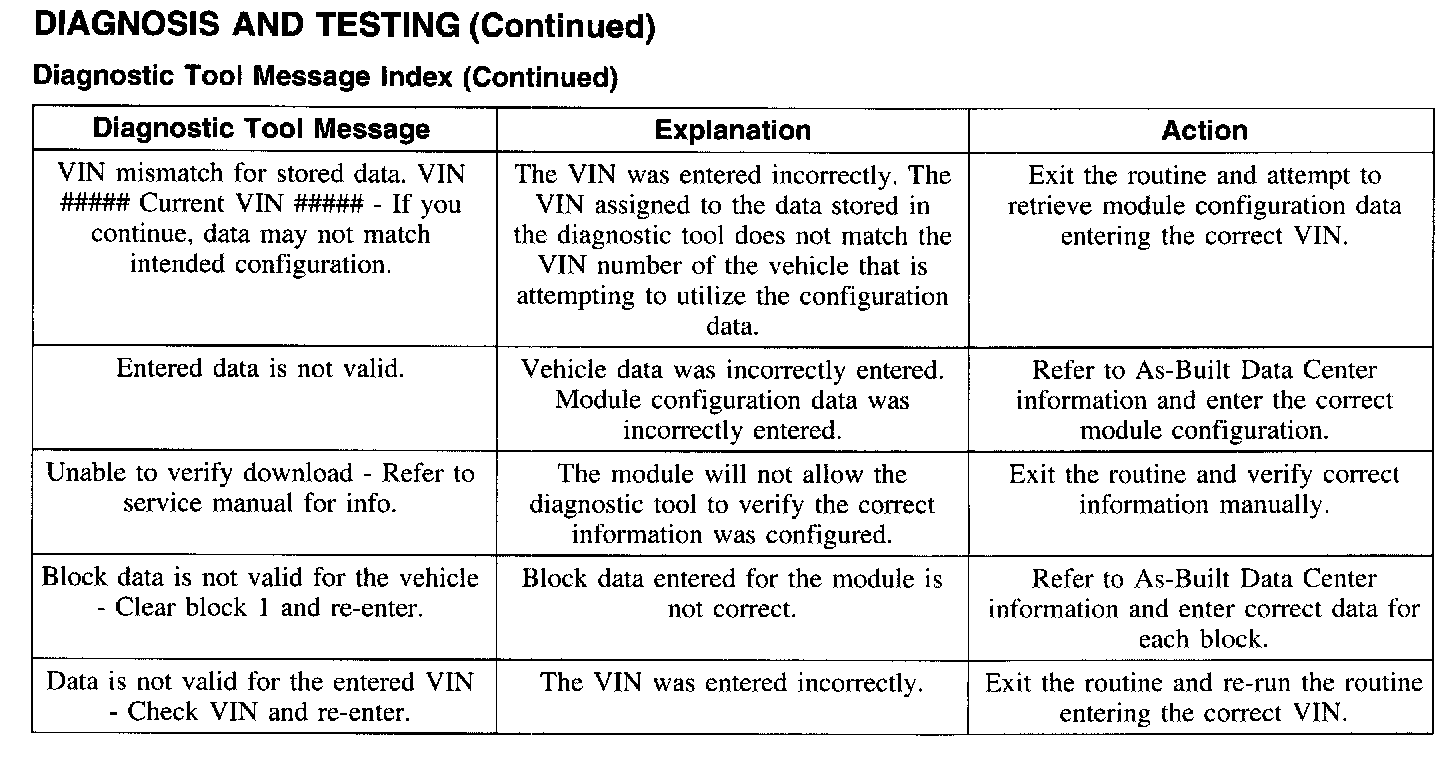

Diagnostic Tool Message Index, Part 2:
