Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

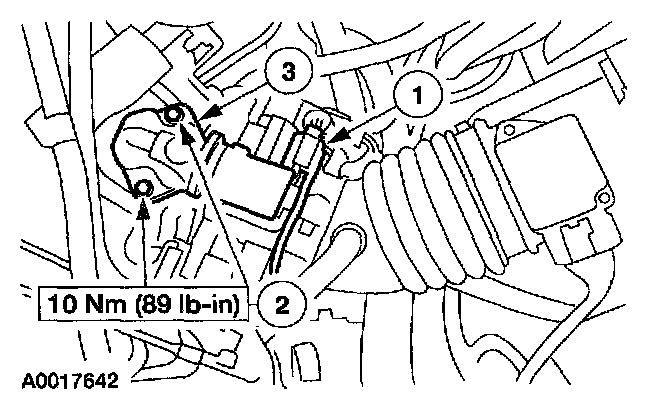

1. Remove the Idle Air Control (IAC) valve.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the valve.
^ Discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Install a new gasket.
