Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Maintenance
>>
Wheels and Tires
>>
Wheel Stud / Lug Nut
>>
Service and Repair
>>
Rear
Rear
Removal and Installation
1.
Remove the
wheel bearing
.
2.

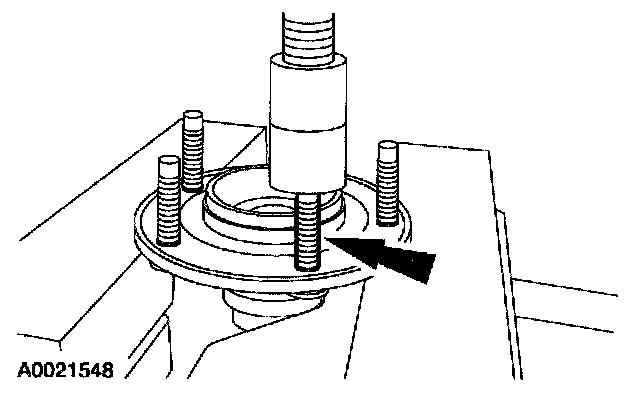

Press out the wheel studs.
3.
To install, reverse the removal procedure.
