Rear

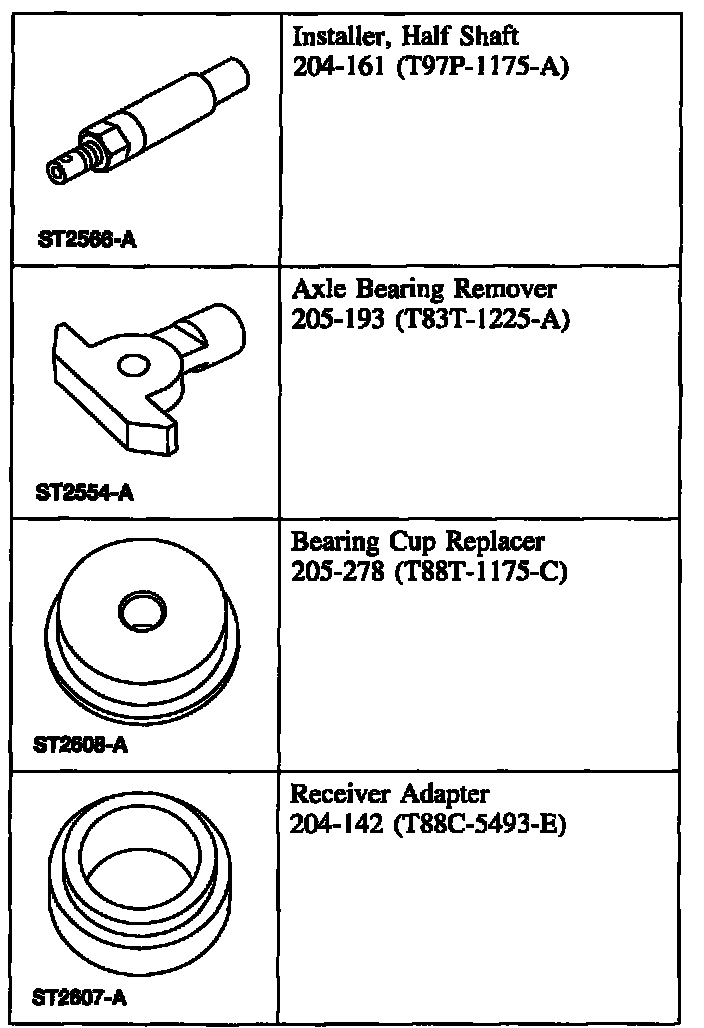

Special Tool(s)

Removal

1. Remove the brake drum.





2. NOTE: If equipped, remove the ABS sensor ring.

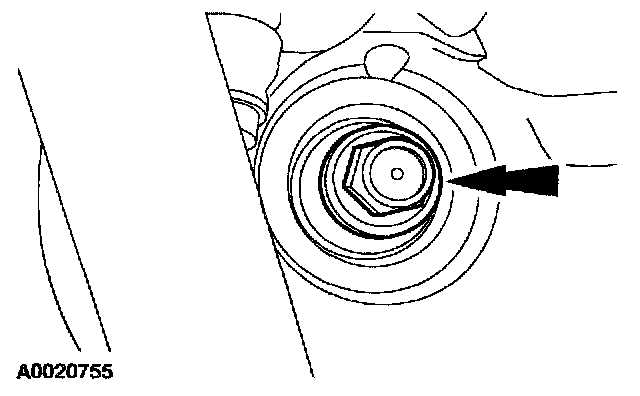

Remove the wheel hub nut.

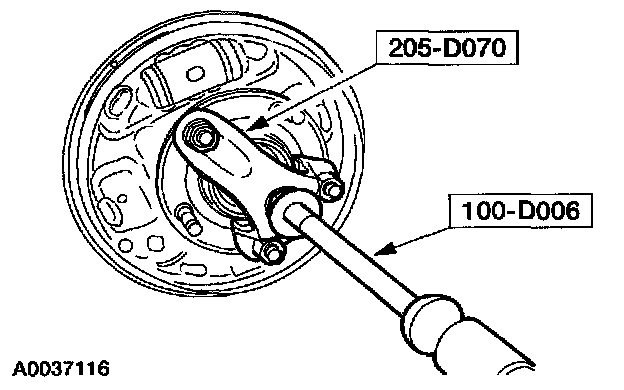

3. Using the special tools, remove the wheel hub.





4. NOTE: This step may not be necessary if the inner wheel bearing race remains in the wheel knuckle, after removing the wheel hub.

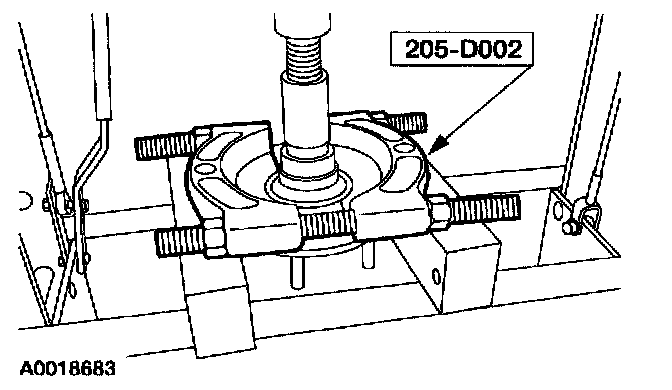

Using the special tool, press the inner wheel bearing race from the wheel hub.

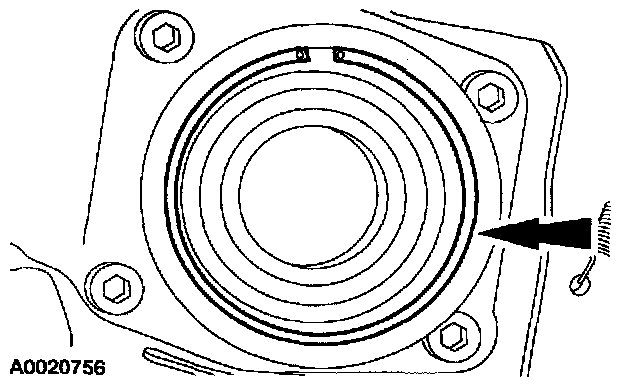

5. Remove the snap ring.

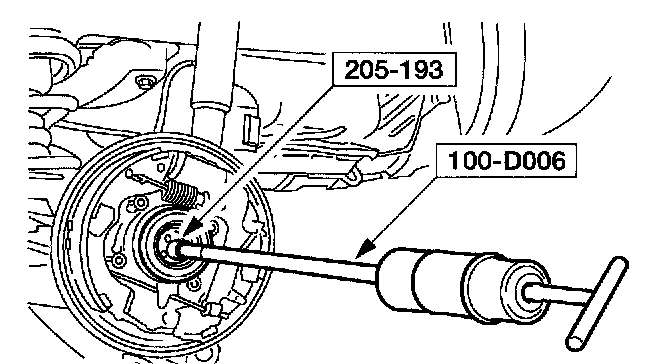

6. Using the special tools, remove the wheel bearing outer race from the wheel knuckle.

Installation





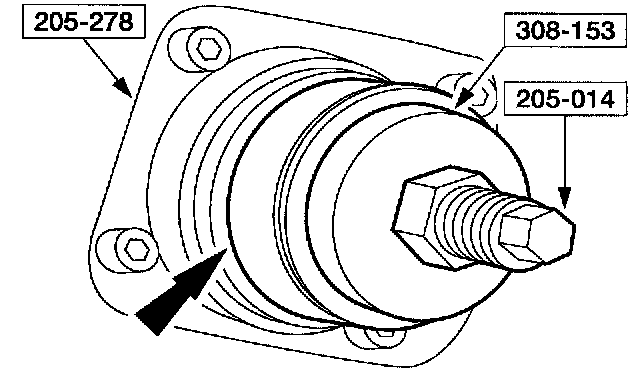

1. Using the special tools, install the wheel bearing into the wheel knuckle.





2. Install the snap ring.

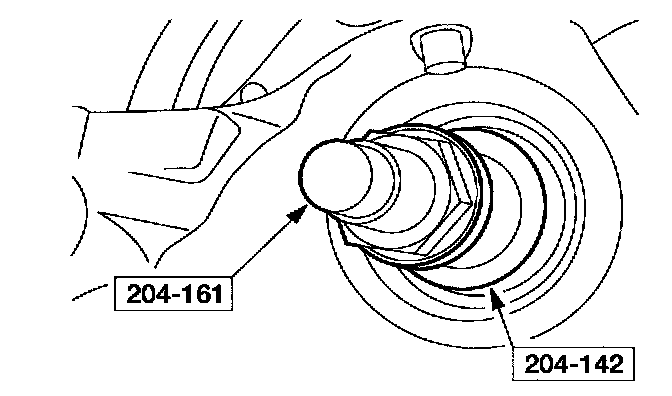

3. Using the special tools, install the wheel hub into the wheel bearing.





4. NOTE: If equipped, install the ABS sensor ring.

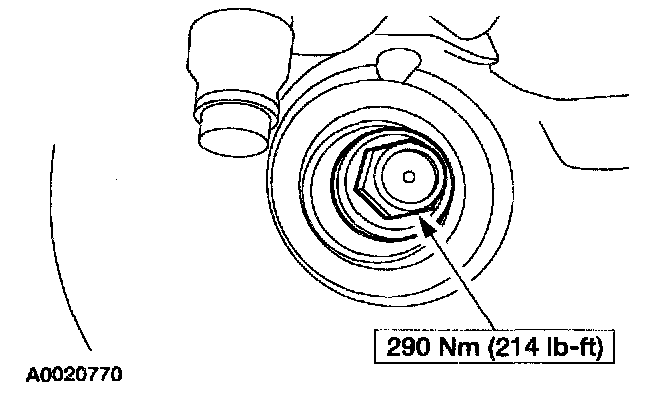

Install the wheel hub nut.
5. Install the brake drum.
