Hose/Line HVAC: Service and Repair

REMOVAL
1. Remove the A/C pressure cut-off switch.
2. Remove the evaporator core orifice.

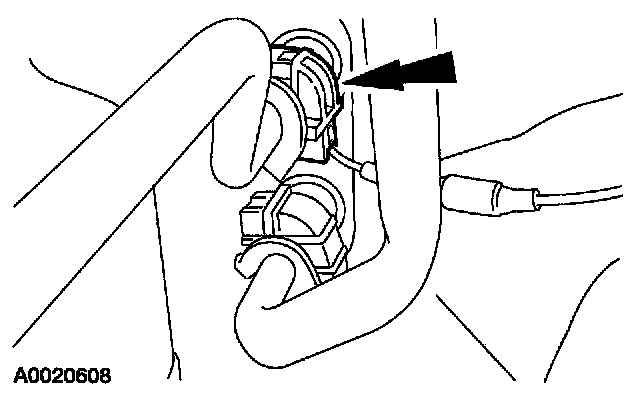

3. Disconnect the condenser to evaporator line from the A/C evaporator core.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

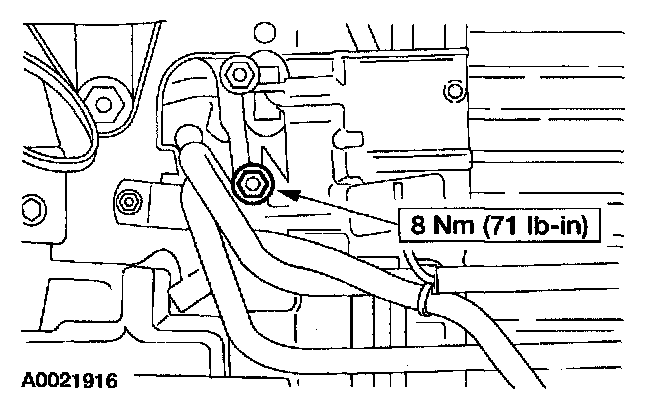

4. Remove the evaporator line support nut and remove the line from the A/C evaporator core.
5. Remove the front bumper cover.

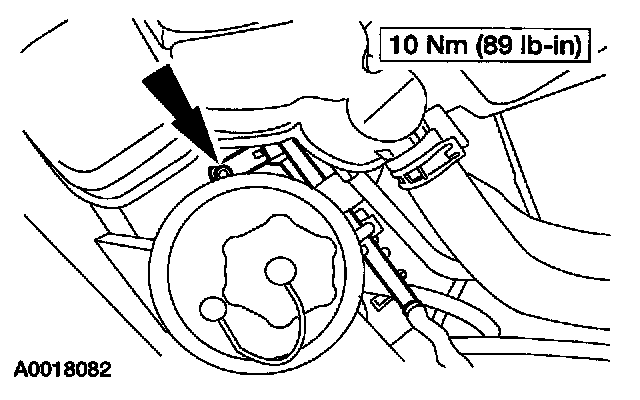

6. Remove the nut and disconnect the condenser to evaporator line from the A/C condenser core and remove the condenser to evaporator line.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with PAG Compressor Oil YN-12-C or equivalent meeting Ford specification WSH-M1C231-B.
